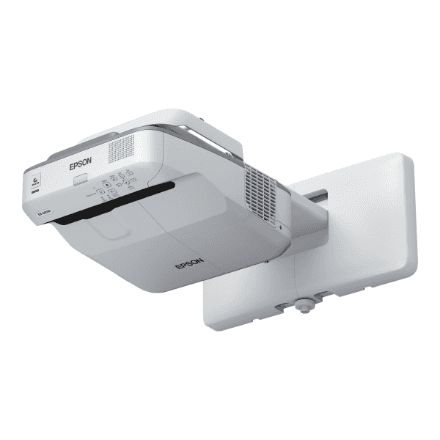

Epson EB-685W WXGA 3500 lumens projector
Epson

Epson EB-685W WXGA 3500 lumens projector

  • Brightness3500 ANSI lumens
  • Aspect ratio16:10
  • Noise level (max)35 dB
  • Wi-Fi standards802.11b/g/n
  • Net weight15.72 kg

The Epson EB-685W is a compact WXGA projector designed for classrooms, meeting rooms and small venues. With 3500 ANSI lumens and a 14000:1 contrast ratio, it delivers bright, sharp images even in partially lit environments.

Description

Brightness and flexibility in a portable package

  • 3500 ANSI lumens brightness with dynamic lamp control and auto brightness adjustment for consistent image quality
  • Short throw ratio (0.28–0.37:1) projects large images from minimal distance—ideal for tight spaces
  • Digital zoom (1–1.35×) and split-screen functionality for flexible content display
  • Built-in speaker, wireless LAN capability (802.11b/g/n) and multiple connectivity options including 3× HDMI inputs
  • Whisper-quiet operation at 29 dB in eco mode, with automatic input selection and customizable home screen

Perfect for education settings, corporate training, community centres and small event venues where reliability and ease of use matter. Works seamlessly with document cameras and supports direct power on/off with embedded battery backup.

Specifications

BrandEpson
Brightness3500 ANSI lumens
Aspect ratio16:10
Noise level (max)35 dB
Wi-Fi standards802.11b/g/n
Connectivity technologyUSB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Wired Network, Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
Colour of productWhite
Net weight15.72 kg
Contrast ratio14000 : 1
FocusManual
Lamp warranty12 month(s)
Lens typeOptical
Light sourceLamp
Maximum resolutionWXGA (1280x800)
Noise level (economic mode)29 dB
Projection distance (tele)0.6 m
Projection distance (wide)0.4 m
Throw ratio0.28-0.37:1
Wi-Fi connectionYes (optional)
Zoom ratioDigital, Factor: 1 - 1.35
Other featuresAuto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
EAN8715946605210
