ASROCK

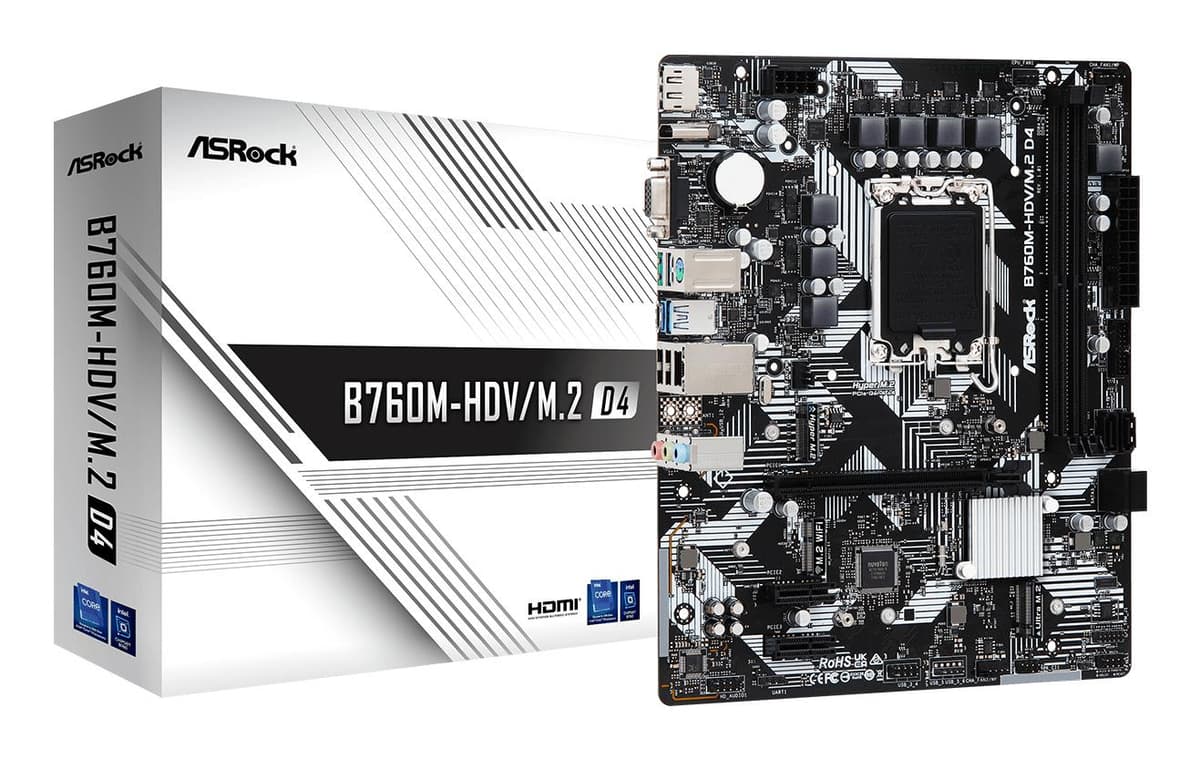

ASRock B760M-HDV/M.2D4 Micro-ATX Intel LGA1700 Motherboard DDR4

Processor manufacturerIntel
Maximum internal memory64 GB
Supported storage drive interfacesM.2, SATA III
RAID levels0/1/10/5
Audio chipRealtek ALC897
Windows operating systems supportedWindows 10 Education x64/Windows 11 x64

The ASRock B760M-HDV/M.2D4 is a Micro-ATX motherboard for Intel LGA1700 processors, built on the Intel B760 chipset and designed to deliver a compact, capable platform for 12th and 13th Gen Intel Core builds. With DDR4 memory support and a PCIe 4.0 M.2 slot, it punches well above its budget-friendly footprint.

Description

Solid Connectivity in a Space-Saving Form Factor

Intel B760 chipset with LGA1700 socket — compatible with 12th and 13th Gen Intel Core CPUs
DDR4 memory support across 2 DIMM slots for straightforward, cost-effective upgrades
PCIe 4.0 x16 slot paired with an M.2 slot for fast NVMe SSD storage
Triple display outputs — D-Sub, HDMI, and DisplayPort cover most monitor setups without an add-in card
USB-C rear port plus USB 3.2 and USB 2.0 headers for flexible peripheral connectivity

A practical pick for home office builds, entry-level gaming rigs, and compact desktop upgrades where DDR4 compatibility and a smaller chassis footprint matter most.

Specifications

General

Brand	ASROCK
HDCP	Yes
Line-in	Yes
BIOS type	UEFI AMI
Component for	PC
BIOS memory size	128
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Number of memory slots	2
Motherboard form factor	micro ATX
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
EAN	4710483942020

Processor

Processor manufacturer	Intel
Motherboard chipset	Intel B760
Processor socket	LGA 1700
CPU fan connector	Yes
Motherboard chipset family	Intel
Compatible processor series	Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
Maximum number of SMP processors	1

Memory

Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM

Storage

Supported storage drive interfaces	M.2, SATA III

Audio

Audio chip	Realtek ALC897
Microphone in	Yes
Audio output channels	7.1

Ports

HDMI ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
TPM connector	Yes
LAN controller	Realtek RTL8111H
USB 2.0 connectors	3
DisplayPort version	1.4
PS/2 ports quantity	1
DisplayPorts quantity	1
Front panel connector	Yes
Ethernet interface type	Gigabit Ethernet
VGA (D-Sub) ports quantity	1
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
