ASUS

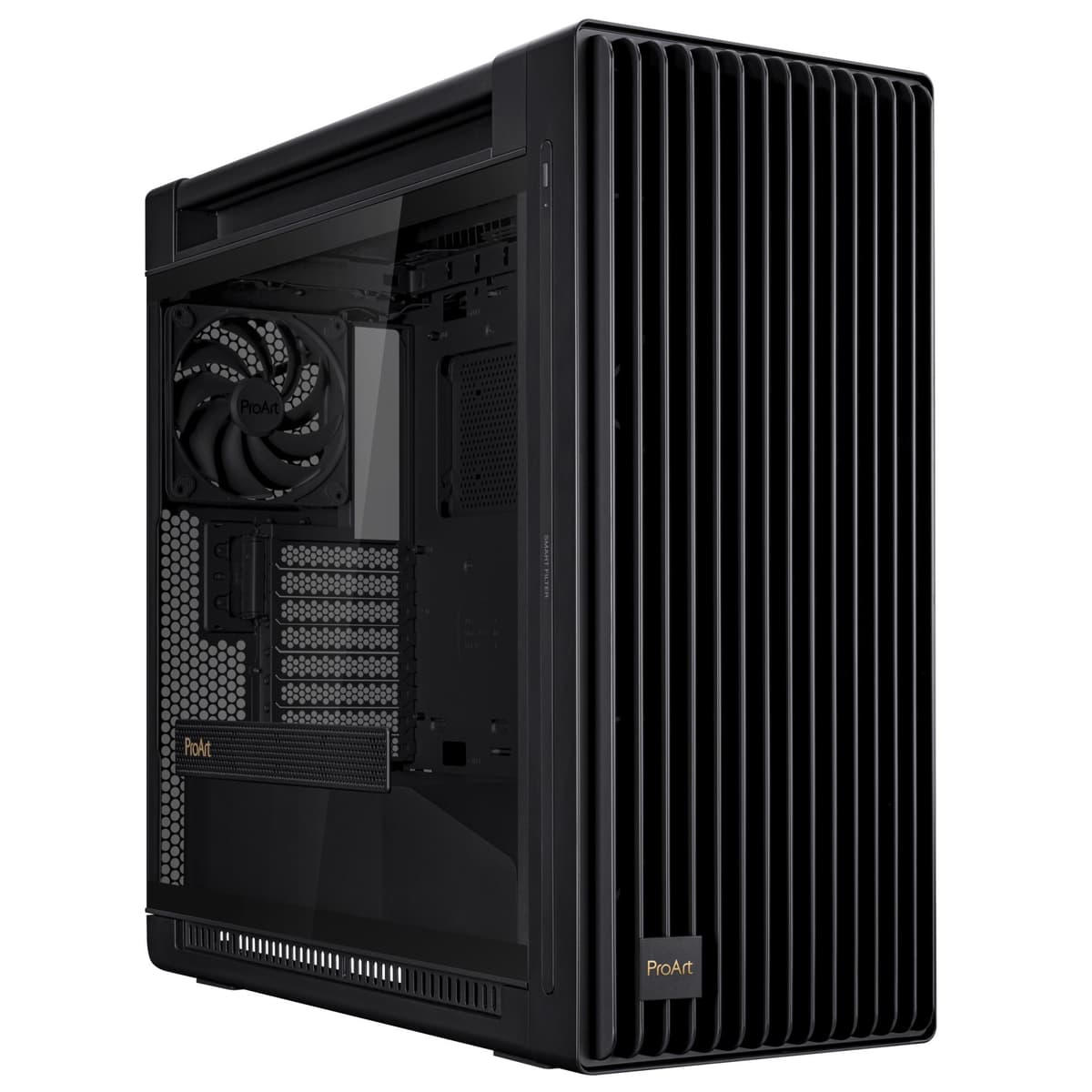

ASUS ProArt PA602 PC case E-ATX Midi Tower, 2 × 200 mm fans, Black

The ASUS ProArt PA602 is a large black Midi Tower PC case for E-ATX and ATX motherboards, designed above all for powerful machines used in creative work. Two 200 mm front fans, a 140 mm rear fan and room for a 420 mm radiator deliver strong airflow straight out of the box.

Motherboards: E-ATX, ATX, micro-ATX, Mini-ITX, DTX, Mini-DTX; 8 expansion slots
Clearances: graphics card up to 450 mm, CPU cooler up to 190 mm, power supply up to 190 mm
Radiator: top 120–420 mm
Fans: 2 × 200 mm (38 mm thick) front, 1 × 140 mm PWM rear; built-in fan hub
Front panel: USB-C, 2 × USB-A 3.2 Gen 1, 2 × USB 2.0, combo audio jack, reset button
Size: 245 × 593 × 560 mm, weight 15.8 kg; 4 × 2.5″ and 4 × 3.5″ drive positions

Description

Airflow and conveniences that save time

The 15.5 mm front grille has 45% open area, and according to the manufacturer the two thick 200 mm fans move a lot of air at pleasant noise levels. Two deflectors steer incoming air towards the graphics card and CPU cooler. An infrared dust sensor reminds you when the filter needs cleaning, the fans can be controlled in two groups, and built-in wheels make the case easy to move.

Who this PC case is for

Designers, video editors and 3D artists building a powerful workstation or gaming PC on an E-ATX board with a long graphics card and plenty of drives. The case holds up to four hard drives or up to eight SATA SSDs, and its calm, minimalist look keeps attention on the work.

Specifications

General

Brand	ASUS
Form factor	Midi Tower
Model name	PA602
Product colour	Black
Type	PC
Side window	Yes
Cable management	Yes
Maximum PSU length	190
Number of 2.5" bays	4
Number of 3.5" bays	4
Rear fans installed	1x 140 mm
Front fans installed	2x 200 mm
Number of expansion slots	8
EAN	4711387338490

Display

Tempered glass panel(s)	Yes

Processor

Maximum CPU cooler height	190

Storage

Supported HDD sizes	2.5/3.5

Graphics

Maximum graphics card length	450

Ports

Combo headphone/mic port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1

Keyboard & controls

Reset button	Yes
On/off button	Yes

Battery & power

Power supply included	No

Performance & capacities

Anti-dust filter	Yes
Fan speed control	Yes
Cooling & Ventilation System	Pre-installed Fans (Front) 2 x 200 mm, Pre-installed Fans (Rear) 1 x 140 mm PWM

Features

Case product features	Transparent panel
Top fans diameters supported	120/140
Top radiator sizes supported	120/140/240/280/360/420
Rear fans diameters supported	120/140
Front fans diameters supported	200
Number of top fans supported (max)	3
Supported motherboard form factors	ATX/DTX/EATX/micro ATX/Mini-DTX/Mini-ITX
Number of rear fans supported (max)	1
Number of front fans supported (max)	2

Dimensions & weight

Width	245 mm
Depth	593 mm
Height	560 mm
Weight	15.8 kg

Questions & answers

Can the graphics card be mounted vertically?

According to the manufacturer, there is room for large graphics cards in both horizontal and vertical positions. Whether a vertical mount riser cable is included, the manufacturer does not specify.

Is a power supply included?

No, the power supply is chosen separately. The case takes a unit up to 190 mm long.

Where can a liquid cooling radiator go?

The top takes a radiator from 120 to 420 mm. The front holds two 200 mm fans, and an air cooler can be up to 190 mm tall.
