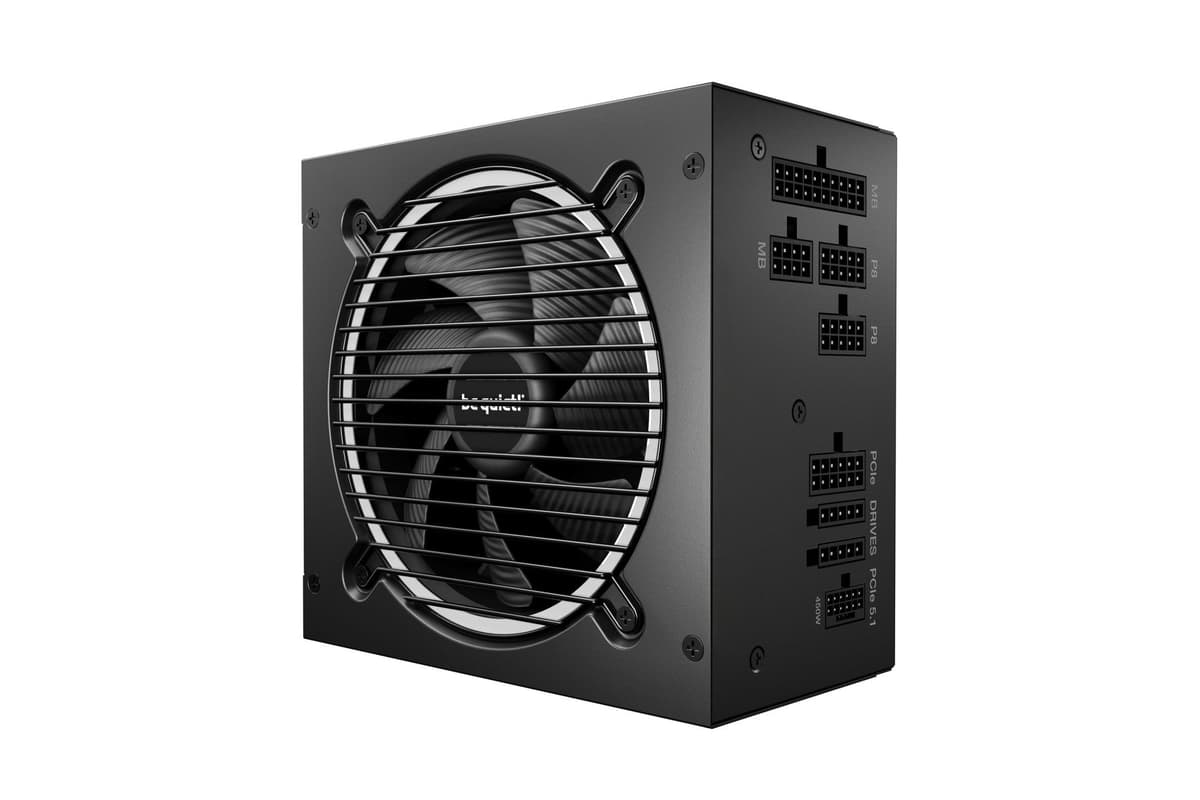

be quiet! Pure Power 13M 650W ATX Power Supply – 80 PLUS Gold

CPU power cable length650
AC input voltage100 – 240 V
Noise level30.2 dB
Width150 mm
Motherboard power connector20+4 pin ATX
Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA

The be quiet! Pure Power 13M 650W is an ATX desktop computer power supply built for reliable, efficient performance. With 80 PLUS Gold certification, it delivers high efficiency across a wide load range, keeping energy waste and heat to a minimum — a solid foundation for any mid-range to high-end PC build.

Description

Quiet, efficient power for demanding desktop builds

80 PLUS Gold efficiency — reduces wasted energy and keeps operating temperatures low
650W output — sufficient headroom for modern CPUs and discrete graphics cards
120mm fan — larger fan diameter allows lower RPM operation for quieter cooling
ATX form factor — fits standard mid-tower and full-tower PC cases
Active PFC — improves power quality and meets modern electrical standards

A practical choice for desktop PC builders, home office workstations and gaming rigs that demand stable, clean power delivery without unnecessary noise. Compatible with standard ATX cases and current-generation components.

Specifications

General

Brand	BE QUIET
Model name	Pure Power 13m
Product colour	Black
Purpose	PC
Hold time	22.5
Efficiency	92.8
ATX version	3.1
EPS version	2.92
Cabling type	Fully-Modular
Fan diameter	120
Number of fans	1
Number of +12V rail(s)	1
Shipping (inner) case width	325
Shipping (inner) case height	233
Shipping (inner) case length	580
Mean time between failures (MTBF)	100000
Products per shipping (inner) case	6
Shipping (inner) case gross weight	20900
EAN	4260052192177

Processor

CPU power cable length	650
CPU P4 connector (4-pin)	3
CPU power connector (4+4 pin)	Yes

Ports

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
PCI Express power connectors (12-pin)	1
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	2

Keyboard & controls

On/off switch	Yes

Battery & power

AC input voltage	100 – 240 V
AC input frequency	50/60
Peak power	720
Total power	650
Power factor	0.98
Combined power (+5V)	120
80 PLUS certification	80 PLUS Gold
Combined power (+12V)	650
Combined power (-12V)	3.6
Combined power (+3.3V)	120
Combined power (+5Vsb)	15
SATA power cable length	500/650/800
Max output current (+5V)	20
Max output current (-12V)	0.3
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Max output current (+12V1)	54.1
Max output current (+3.3V)	20
Max output current (+5Vsb)	3
Maximum input current (@110V)	10
Maximum input current (@220V)	5
Motherboard power cable length	550
Power Factor Correction (PFC) type	Active
Power supply unit (PSU) form factor	ATX
Peripheral (Molex) power cable length	800/950

Performance & capacities

Noise level	30.2 dB
Operating temperature (T-T)	0 – 40 °C
Fan speed	0 - 1800
Cooling type	Active

Features

Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included	Yes
Bearing technology	Rifle
Cable ties included	Yes
Sustainability certificates	ENERGY STAR/ErP
