CHIEFTEC

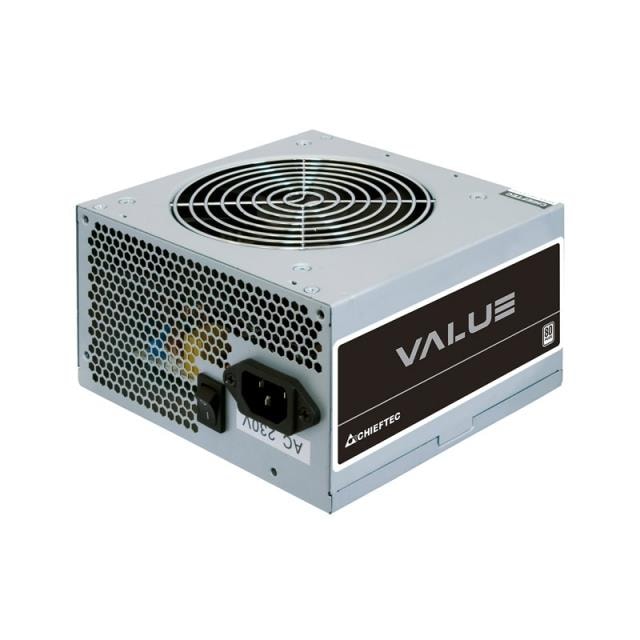

Chieftec APB-600B8 600W 80 PLUS ATX power supply

AC input voltage200 – 240 V
Cooling typeActive
Width150 mm
Motherboard power connector20+4 pin ATX

The Chieftec APB-600B8 is a 600-watt ATX power supply designed to deliver stable, efficient power to mid-range desktop PCs. With 80 PLUS certification and active power factor correction, this non-modular unit keeps energy waste to a minimum while maintaining reliable performance across demanding workloads.

Description

Dependable power for everyday and gaming builds

600W capacity — sufficient for systems with mid-range graphics cards and multi-core processors
80 PLUS efficiency — reduces heat output and lowers electricity costs during extended use
Active PFC — improves power quality and reduces harmonic distortion on your electrical network
120mm cooling fan — intelligent thermal management keeps noise levels reasonable under normal operation
ATX form factor — fits standard tower cases without compatibility headaches

This power supply suits system builders looking for honest, straightforward performance without premium pricing. Whether you're assembling a productive workstation, a gaming rig, or a media centre, the APB-600B8 handles steady-state loads reliably.

Specifications

General

Brand	CHIEFTEC
Product colour	Steel
Purpose	PC
ATX version	2.3
Cabling type	Non-Modular
Fan diameter	120
Fan location	Top
Number of fans	1
EAN	753263077813

Ports

EPS power connector (8-pin)	No
Floppy disk drive connector	Yes
Motherboard power connector	20+4 pin ATX
EPS power connector (4+4 pin)	Yes
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	2

Keyboard & controls

On/off switch	Yes

Battery & power

AC input voltage	200 – 240 V
AC input frequency	47 – 63 Hz
Peak power	600
Total power	600
Combined power (+5V)	120
80 PLUS certification	80 PLUS
Combined power (+12V)	552
Combined power (-12V)	3.6
Combined power (+3.3V)	120
Combined power (+5Vsb)	12.5
SATA power cable length	150/500
Max output current (+5V)	20
Max output current (-12V)	0.3
Max output current (+12V1)	46
Max output current (+3.3V)	20
Max output current (+5Vsb)	2.5
Maximum input current (@220V)	4.5
Floppy disk drive cable length	150
Motherboard power cable length	550
Power supply unit (PSU) form factor	ATX
Peripheral (Molex) power cable length	150/500
