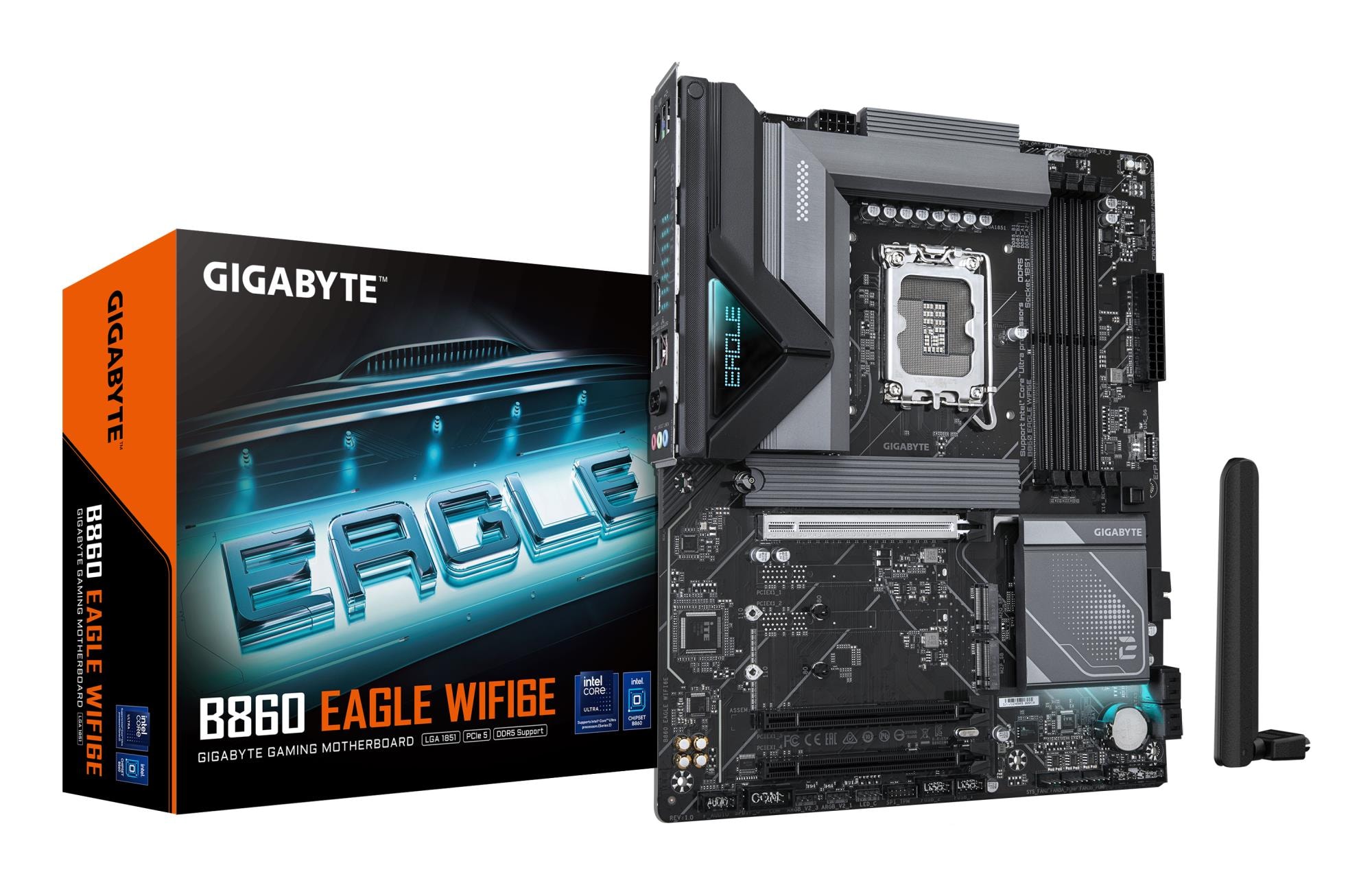

Gigabyte B860 Eagle WiFi 6E LGA1851 ATX DDR5 Motherboard

  • Maximum resolution4096 x 2160
  • Processor manufacturerIntel
  • Maximum internal memory256 GB
  • Number of HDDs supported4
  • Battery technologyLithium-Manganese Dioxide (LiMnO2)
  • RAID levels0/1/10/5

The Gigabyte B860 Eagle WiFi 6E is an ATX motherboard for Intel's LGA 1851 platform, built around the Intel B860 chipset and designed to get the most out of modern DDR5 memory and fast storage — making it a solid foundation for any mid-range Intel build.

Description

Connectivity and Expansion That Keeps Pace With Current Hardware

  • LGA 1851 socket with Intel B860 chipset supports current-generation Intel processors
  • 4× DDR5 DIMM slots for dual-channel high-bandwidth memory configurations
  • 3× M.2 slots provide ample room for NVMe SSDs without sacrificing PCIe lanes
  • 3× PCIe x16 slots accommodate graphics cards, capture cards, or other expansion needs
  • Integrated WiFi 6E delivers fast, low-latency wireless without a separate adapter

This board suits builders putting together a responsive home workstation, a capable gaming PC, or a content creation rig where fast storage, reliable wireless, and room to expand all matter from day one.

Specifications

General

BrandGIGABYTE
Product colourDark brown
HDCPYes
Line-inYes
BIOS typeUEFI AMI
ACPI version5.0
Component forPC
DirectX version12.0
BIOS memory size256
Clear CMOS jumperYes
Headphone outputs1
Unbuffered memoryYes
ECC сompatibilityECC & Non-ECC
RGB LED pin headerYes
PC health monitoringFan/Temperature/Voltage/Water cooling
Number of memory slots4
Motherboard form factorATX
Number of M.2 (M) slots3
1st M.2 largest key size25110
2nd M.2 largest key size25110
3rd M.2 largest key size25110
Number of RGB LED pin headers4
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Products per shipping (inner) case1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
3rd M.2 highest PCI Express generation4.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Warranty3 years
EAN4719331866822

Display

Maximum resolution4096 x 2160

Processor

Processor manufacturerIntel
Motherboard chipsetIntel B860
Processor socketLGA 1851 (Socket V1)
CPU fan connectorYes
Motherboard chipset familyIntel
Compatible processor seriesIntel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Supported processor socketsLGA 1851
Number of CPU fan connectors2

Memory

Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Maximum internal memory per slot64

Storage

Number of HDDs supported4
Supported storage drive typesHDD & SSD
Number of storage drives supported7
Supported storage drive interfacesM.2, SATA III

Audio

Audio chipRealtek ALC897
Microphone inYes
Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerRealtek RTL8125D
USB 2.0 connectors2
DisplayPort version2.1
PS/2 ports quantity1
Serial port headers1
S/PDIF out connectorYes
WiFi-AP antenna jack2
DisplayPorts quantity1
Front panel connectorYes
Ethernet interface type2.5 Gigabit Ethernet
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of water pump connectors3
Number of chassis fan connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 Type-C ports quantity1
Number of EPS power connectors (8-pin)1

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3
Antenna includedYes

Software & security

Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supportedWindows 10 x64/Windows 11 x64

Battery & power

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Power source typeATX
Battery weight3
Lithium weight per battery0.07

Performance & capacities

RAID levels0/1/10/5
Cooling typePassive
Supported memory clock speeds5600/6400/9066
Supported memory clock speed (max)9066

Features

RAID supportYes
Screws includedYes
Batteries includedYes
Supported memory typesDDR5-SDRAM
Parallel processing technology supportNot supported

Dimensions & weight

Width305 mm
Depth244 mm
Height35 mm
Weight1.72 kg
