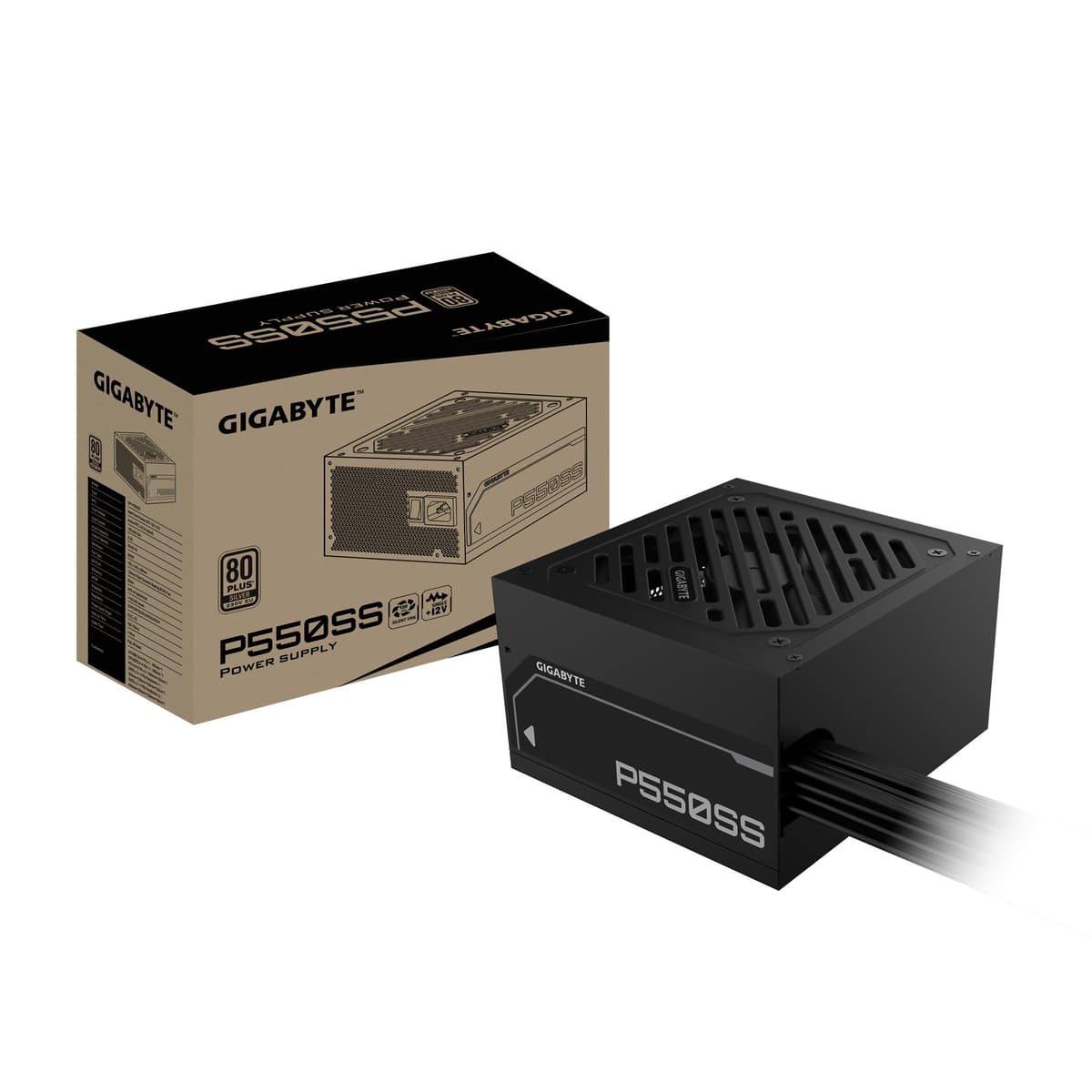

Gigabyte GP-P550SS power supply 550 W, 80 PLUS Silver, ATX 3.1, Black

The Gigabyte GP-P550SS is a 550 W ATX power supply in a black housing for home, office and entry-level gaming PCs. 80 PLUS Silver certification and 90% efficiency keep heat losses low, flat fixed cables are easy to route, and ATX 3.0 support is also compatible with the ATX 3.1 standard.

  • Output: 550 W, single +12V rail up to 45.8 A
  • Efficiency: 80 PLUS Silver (230 V EU), 90%
  • Cabling: non-modular, flat cables
  • Connectors: 20+4-pin ATX (60 cm), CPU 4+4-pin, 2 × PCIe 6+2-pin, 5 × SATA, 4 × Molex
  • Form factor: ATX, 140 × 150 × 86 mm, 1.86 kg
  • Fan: 120 mm

Description

Flat cables and a single +12V rail for an easy build

Flat cables bend more easily and fit behind the motherboard tray better than round ones, which makes them simpler to hide. With a single +12V rail there is no need to think about splitting the load between connectors. Protection against over-current, overload, over- and under-voltage, short circuit and overheating cuts the power if something goes wrong and keeps your components safe.

Who this power supply is for

The Gigabyte GP-P550SS fits a home or office PC or an entry-level gaming PC whose graphics card needs no more than two PCIe 6+2-pin power plugs. It is a sensible replacement for an ageing power supply, as its ATX dimensions suit a standard case. The black housing blends into a classic dark build.

Specifications

General

BrandGIGABYTE
Product colourBlack
PurposePC
Hold time16
Efficiency90
ATX version3.1
Cabling typeNon-Modular
Fan diameter120
Fan locationTop
Number of fans1
Mean time between failures (MTBF)100000
Warranty3 years
EAN4719331554187

Processor

CPU power connector (4+4 pin)Yes

Ports

PCI Express connectorYes
Floppy disk drive connectorYes
Motherboard power connector20+4 pin ATX
Floppy drive power connector2
ATX power connector (20+4 pin)Yes
Number of SATA power connectors5
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)4

Keyboard & controls

On/off switchYes

Battery & power

AC input voltage155 – 240 V
AC input frequency50/60
Total power550
Input current6.3
Combined power (+5V)100
80 PLUS certification80 PLUS Silver
Combined power (+12V)549.6
Combined power (-12V)3.6
Combined power (+3.3V)100
Combined power (+5Vsb)15
Max output current (+5V)20
Max output current (+12V)45.8
Max output current (-12V)0.3
Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Max output current (+3.3V)20
Max output current (+5Vsb)3
Power Good signal delay range100 - 150
Motherboard power cable length600
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorATX

Performance & capacities

Cooling typeActive

Features

Package typeBox
Bearing technologyBall bearing

Dimensions & weight

Width140 mm
Depth150 mm
Height86 mm
Weight1.86 kg

Questions & answers

Does it work on the Estonian mains?

Yes. The input voltage range is 155–240 V at 50/60 Hz, so a 230 V network is fine. It cannot be used on 110–120 V networks such as in the USA.

Can unused cables be removed?

No, the unit is non-modular and every cable is permanently attached. The flat cables are, however, easy to fold and tie up behind the motherboard tray.

Which graphics cards can it power?

The unit has two PCIe 6+2-pin connectors and up to 45.8 A on the +12V rail. Check the PSU wattage recommended by your graphics card maker: if it is up to 550 W and the card needs no more than two 8-pin plugs, this unit fits.
