Keychron Q1 Max Q1M-M4 wireless keyboard, Jupiter Banana, RGB, Carbon Black
KEYCHRON

Keychron Q1 Max Q1M-M4 wireless keyboard, Jupiter Banana, RGB, Carbon Black

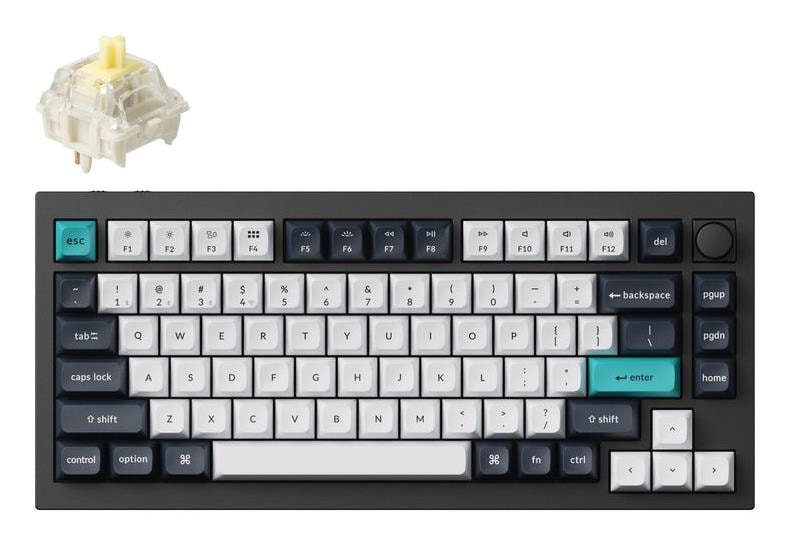

The Keychron Q1 Max Q1M-M4 is an all-metal wireless mechanical keyboard with 81 keys in Carbon Black, fitted with Gateron Jupiter Banana switches. The 2.4 GHz link runs at 1000 Hz, and a double-gasket mount with several foam layers gives this keyboard a soft typing sound.

  • Connection: 2.4 GHz (USB-A receiver) and cable at 1000 Hz, Bluetooth 5.1 for up to three devices (90 Hz), 10 m range
  • Layout: QWERTY
  • Switches: Gateron Jupiter Banana (tactile), hot-swappable, rated for 80 million presses
  • Form factor: 81 keys, 327.5 × 145 × 35.8 mm, 1.72 kg
  • Power: 4000 mAh battery, up to 180 hours, 5-hour charge time
  • Systems: macOS, Windows, Linux

Description

A metal body with a quiet sound

The case is CNC-machined from 6063 aluminium, with silicone pads between plate and case to cut metallic resonance. IXPE, PET and latex foam dampen the sound further. The Banana switch has a light tactile bump at the start of the press. Switches can be swapped without soldering for almost any 3-pin or 5-pin MX-style switch. Screw-in stabilizers keep the large keys steady, and the RGB backlight offers 22 effects.

Who this keyboard is for

Writers and programmers who value a heavy metal keyboard with a soft sound; tinkerers who want to change switches and keycaps themselves; and users working on both Mac and Windows, since a system toggle and keycaps for both are included. Keys and macros are set up in QMK and Keychron Launcher.

Specifications

General

BrandKEYCHRON
Recommended usageGaming
Product colourBlack/Cyan/Dark Blue/White
MaterialAluminium
Device interfaceUSB + RF Wireless + Bluetooth
KeycapsDouble shot
Hot-swapYes
RolloverN-key rollover
Wrist restNo
Polling rate1000/90
Plug and PlayYes
Actuation force59
Built-in memoryYes
Detachable cableYes
Keycaps materialPolybutylene terephthalate (PBT)
Key travel distance3.4
Microcontroller unitARM Cortex M4
EAN4895248863328

Display

Built-in displayNo

Storage

Built-in memory capacity256

Ports

USB Type-C charging portYes
USB connector typeUSB Type-C

Connectivity

BluetoothYes
Bluetooth version5.1
Connectivity technologyWired & Wireless
Wireless range10 m
Wireless receiver interfaceUSB Type-A
Frequency band2.4

Software & security

Mac operating systems supportedYes
Linux operating systems supportedYes
Windows operating systems supportedYes

Keyboard & controls

Numeric keypadNo
Pointing deviceNo
Keyboard styleStraight
Keyboard layoutQWERTY
Keyboard weight1724
Flexible keyboardNo
Keyboard key switchMechanical
Keyboard number of keys81
Keyboard dimensions (WxDxH)327.5 x 145 x 35.8
Keyboard keys operating life80
Keyboard key switch technologyGateron Jupiter Banana

Battery & power

Battery technologyLithium Polymer (LiPo)
Battery capacity4000 Wh
Battery life (max)180 h
Charging sourceUSB Type-C
RechargeableYes
AC adapter includedNo
Power source typeBattery, USB
Adapters includedUSB
Battery recharge time5
Keyboard battery typeBuilt-in battery

Performance & capacities

Operating temperature (T-T)0 – 10 – 50 °C

Features

Receiver includedYes
BacklightYes
Cables includedUSB Type-C
LED indicatorsYes
Backlight typeRGB LED
Mouse includedNo
Backlight colourMulticolour
Adjustable backlightYes
Multi-device supportYes

Questions & answers

Does the keyboard have Estonian letters?

The manufacturer lists only a QWERTY layout and does not specify the key legend language. Estonian letters can be added in your operating system's keyboard layout settings.

How many devices can it pair with?

Up to three over Bluetooth 5.1, plus the 2.4 GHz receiver and a USB-C cable. For gaming, use 2.4 GHz or the cable, where the polling rate is 1000 Hz.

Can the switches be changed?

Yes. The keyboard supports solder-free swapping with almost any 3-pin or 5-pin MX-style mechanical switch, such as Cherry, Gateron, Kailh and Panda.
