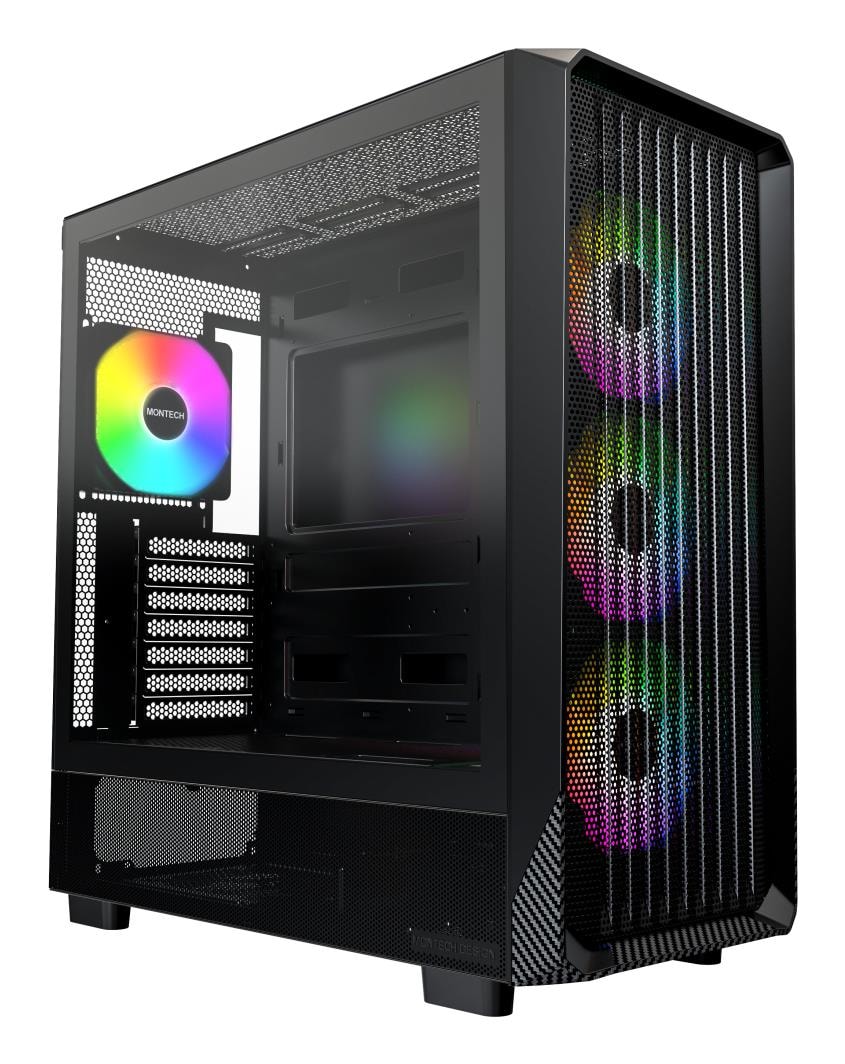

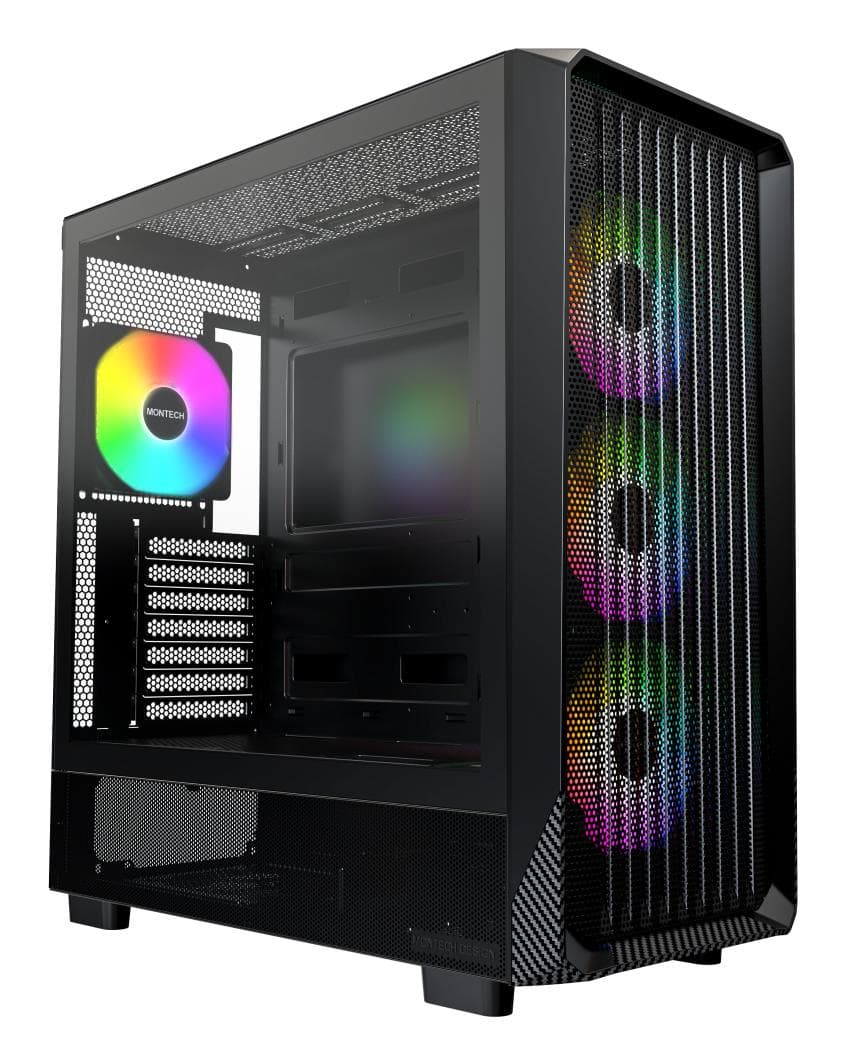

Montech X5 PC case E-ATX, 4 ARGB fans, 360 mm radiator, Black
MONTECH

Montech X5 PC case E-ATX, 4 ARGB fans, 360 mm radiator, Black

The Montech X5 is a black Midi Tower PC case that takes ATX, E-ATX, micro ATX, Mini-ITX and SSI CEB motherboards. A mesh front panel lets air through freely, four ARGB fans are included, and a 360 mm radiator fits at both the top and the front.

  • Motherboards: ATX, E-ATX, micro ATX, Mini-ITX, SSI CEB
  • Clearance: graphics card up to 410 mm, CPU cooler up to 165 mm, ATX power supply up to 230 mm
  • Radiators: front and top 120/140/240/280/360 mm, rear 120 mm
  • Fans: 3 × 140 mm front and 1 × 120 mm rear included, ARGB, 1200–1400 rpm
  • Front I/O: USB-C, 1 × USB 3.0 Type-A, 1 × USB 2.0, audio out
  • Chassis: transparent side panel, 7 expansion slots, 2 × 2.5″ and 2 × 3.5″ drive mounts, 216 × 482 × 496 mm

Description

Cooling built for big radiators

The front mesh has up to 33% open area, so the three 140 mm fans draw air in with little resistance. A 360 mm liquid cooler mounts at the top or the front, a clear step up from the X3. The ARGB lighting has 25 modes on the button or can be handed over to the motherboard, and an adjustable support bracket keeps a heavy graphics card steady.

Who this PC case is for

Builders putting together a powerful gaming or work PC with a large graphics card and liquid cooling. The 410 mm clearance and E-ATX support leave headroom for future upgrades. The power supply is chosen separately.

Specifications

General

BrandMONTECH
Form factorMidi Tower
Model nameX5
Product colourBlack
TypePC
IlluminationYes
Suitable forGaming
Transport wheelsNo
Maximum PSU length230
Illumination colourMulti
Number of 2.5" bays2
Number of 3.5" bays2
Rear fans installed1x 120 mm
Front fans installed3x 140 mm
Illumination locationCase fans
Number of expansion slots7
Warranty1 years
EAN4710562748376

Display

Built-in displayNo

Processor

Maximum CPU cooler height165

Storage

SSD form factor2.5"
Supported HDD sizes3.5

Graphics

Maximum graphics card length410

Audio

Audio outputYes

Ports

Card reader integratedNo
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.01
USB 3.2 Gen 2x2 Type-C ports quantity1

Keyboard & controls

On/off buttonYes
RGB control buttonYes

Battery & power

Power supply includedNo
Supported power supply form factorsATX

Performance & capacities

Fan speed1200 - 1400
Anti-dust filterYes

Features

Case product featuresTransparent panel
Top fans diameters supported120/140
Top radiator sizes supported120/140/240/280/360
Rear fans diameters supported120
Rear radiator sizes supported120
Front fans diameters supported120/140
Front radiator sizes supported120/140/240/280/360
Number of top fans supported (max)3
Supported motherboard form factorsATX/EATX/micro ATX/Mini-ITX/SSI CEB
Number of rear fans supported (max)1
Number of front fans supported (max)3

Dimensions & weight

Width216 mm
Depth482 mm
Height496 mm

Questions & answers

Will a new-generation graphics card fit?

Cards up to 410 mm long fit, and Montech specifically lists GeForce RTX 50 series support.

Does a 360 mm liquid cooler fit?

Yes, a 360 mm radiator can go in the top of the case or at the front.

Is a power supply included?

No. The case takes ATX power supplies up to 230 mm long.
