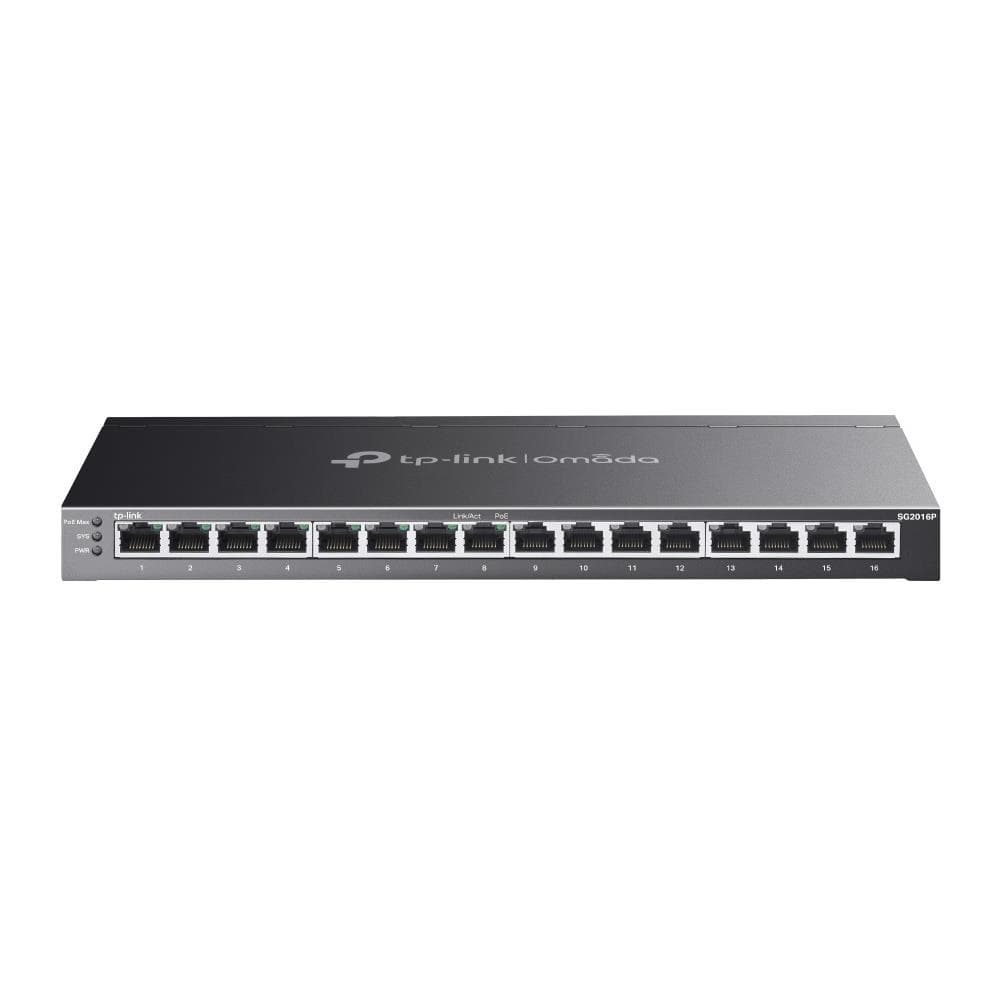

TP-LINK Omada TL-SG2016P 16-port Gigabit managed switch PoE+

Switching capacity32
Power consumption (max)146.5 W
Operating temperature (T-T)0 – 40 °C
Switch typeManaged
Width286 mm
Ethernet LAN data rates10,100,1000

The TP-LINK Omada TL-SG2016P is a 16-port managed switch built for small-to-medium business networks that need reliable Gigabit connectivity with power delivery. Eight PoE+ ports let you power IP cameras, access points, and other networked devices directly from the switch, eliminating the need for separate power supplies.

Description

Managed control meets simplified deployment

16 Gigabit Ethernet ports (10/100/1000 Mbps) for high-speed data transfer across your network
8 PoE+ ports delivering up to 120 watts total for powering compatible devices
Managed switching with VLAN, QoS, and security features for precise network control
Rack-mountable design fits standard 19-inch equipment racks
Omada controller integration for centralized multi-device management

Ideal for offices, retail locations, and facilities where you're deploying surveillance systems, wireless access points, or VoIP phones alongside standard network traffic. Works equally well as a distribution switch in larger installations or as the main switch in growing businesses.

Specifications

General

Brand	TP-LINK
Model name	TL-SG2016P
Product colour	Black
Manual	Yes
Series	Omada
Fanless	Yes
Jumbo frames	9000
Cloud-managed	Yes
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Forwarding rate	23.81
Number of VLANs	4000
Auto-negotiation	Yes
Link aggregation	Yes
Number of queues	8
System event log	Yes
MAC address table	8000
MAC address entries	Dynamic MAC address entries/Static MAC address entries
Firmware upgradeable	Yes
Packet buffer memory	4.1
Web-based management	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP/Weighted Round Robin (WRR)
Operating relative humidity (H-H)	10 - 90
GARP VLAN Registration Protocol (GVRP)	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
EAN	4897098689493

Storage

Switching capacity	32
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Ethernet LAN data rates	10,100,1000
Power over Ethernet (PoE)	Yes
Port mirroring	Yes
Power connector	DC-in jack
IP-MAC-Port binding	Yes
Virtual LAN features	Multicast VLAN/Tagged VLAN/Voice VLAN
Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
Total Power over Ethernet (PoE) budget	120
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power over Ethernet plus (PoE+) ports quantity	8

Connectivity

Networking standards	IEEE 802.11w/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x
Security algorithms	EAP-MD5/HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSL/TLS
Supported network protocols	ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2

Keyboard & controls

Switch type	Managed
Switch layer	L2/L2+

Battery & power

Power consumption (max)	146.5 W
Power source	DC/PoE
DC input voltage	53.5

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	499.98
MAC address filtering	Yes
BPDU filtering/protection	Yes
Configuring Location Settings (CLI)	Yes

Features

Cables included	AC
LED indicators	PoE/Power/System
10G support	No
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
VLAN support	Yes
DHCP features	DHCP relay/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Auto MDI/MDI-X	Yes
SSH/SSL support	Yes
Multicast support	Yes
Flow control support	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes
