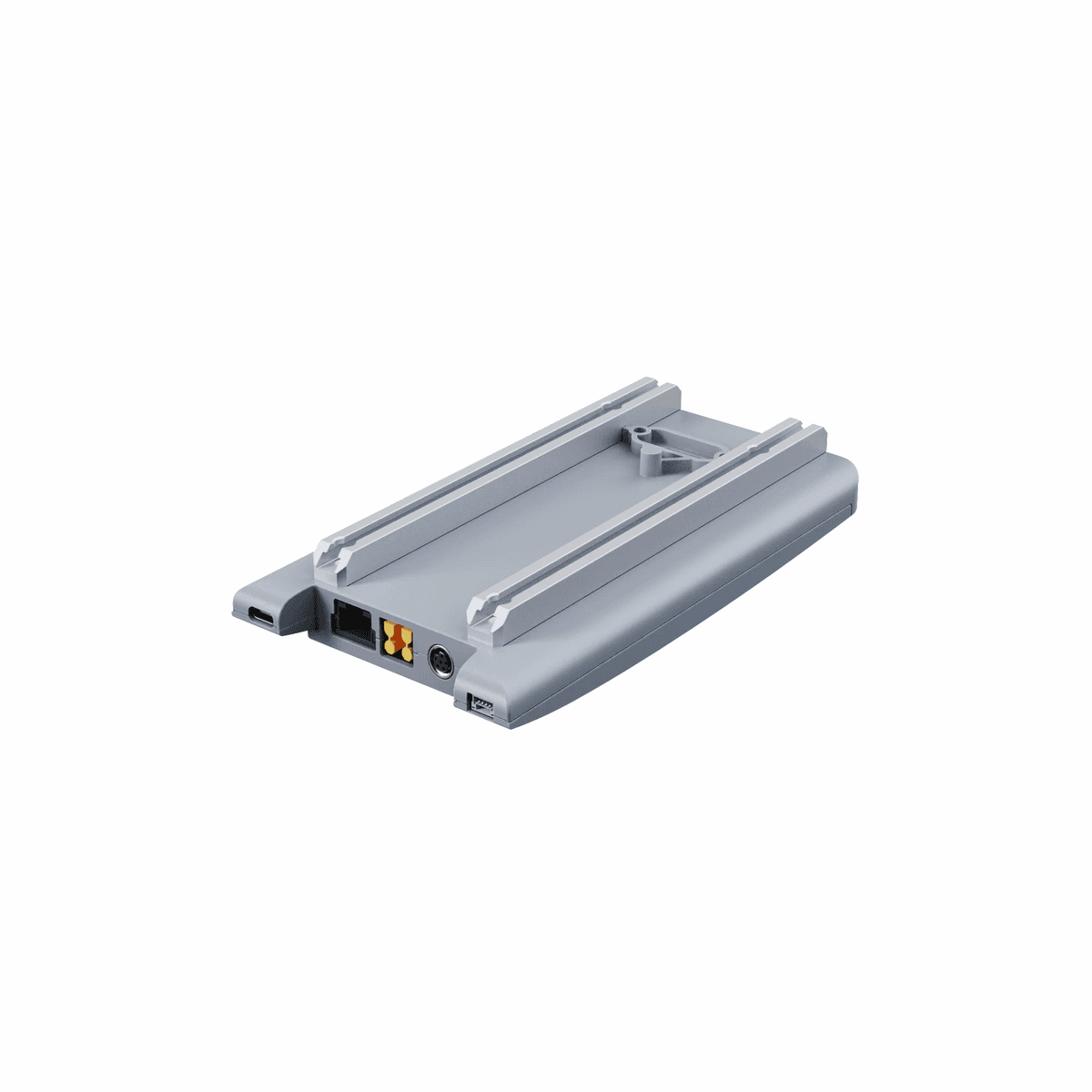

Unitree Go2 docking station, 100 TOPS Edge AI, automatic charging
UNITREE

Unitree Go2 docking station, 100 TOPS Edge AI, automatic charging

The Unitree Go2 Docking Station (100 TOPS) expands the robot with advanced data processing and autonomous functions. The integrated Edge AI module delivers 100 TOPS of computing power, up to 100 trillion operations per second, enough to process large volumes of sensor data in real time. This enables Unitree navigation algorithms, 3D SLAM mapping, GPS-free route planning, object and people recognition and detection of anomalies such as leaks. The station also supports automatic contact charging, so the robot can return to base on its own after a task.

Description

It also acts as a communication hub for additional equipment: USB 3.0 Type-A, USB 2.0 Type-C, USB 3.0 Type-C, two Gigabit Ethernet RJ45 ports, 100M Ethernet (micro-JST GH1.25-4PIN) and an M8 aviation connector allow you to attach the Unitree D1 robotic arm, Hesai and Livox LiDARs or gas sensors. Supply voltage 16–60 V, IP54 rated.

  • Type: docking station with Edge AI module for the Unitree Go2
  • Computing power: 100 TOPS
  • Functions: 3D SLAM, GPS-free navigation, object and anomaly detection, automatic contact charging
  • Ports: USB 3.0 Type-A ×1, USB 2.0 Type-C ×1, USB 3.0 Type-C ×1, Gigabit Ethernet RJ45 ×2, 100M Ethernet micro-JST ×1, M8 ×1
  • Supply voltage: 16–60 V
  • Protection rating: IP54
  • Packed weight: 0.42 kg; box 28.5 × 18 × 2.5 cm
  • MPN: 077238; manufacturer Unitree
  • Warranty: 12 months

Specifications

BrandUNITREE
Weight (boxed)0.42 kg
Warranty12 months
EAN5907085525716
