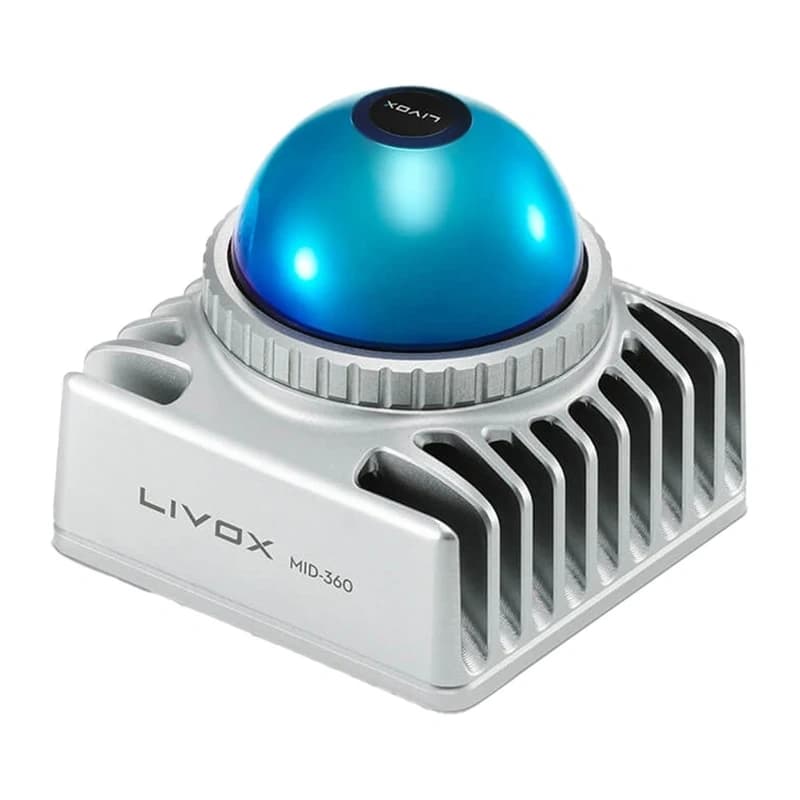

Unitree R1 Edu LiDAR scanner MID360, 360° field of view, mounting kit
UNITREE

Unitree R1 Edu LiDAR scanner MID360, 360° field of view, mounting kit

This LiDAR scanner expands the spatial perception of the Unitree R1 Edu humanoid robot. Based on the MID360 module, it offers a full 360° horizontal field of view and a vertical range from −7° to 52°, allowing accurate scanning of the surroundings and supporting navigation, mapping and research and development projects. The module is compatible with all versions of the R1 Edu robots, the developer and university editions with secondary development support, and is sold as a standalone extension for self-assembly.

Description

The kit includes a metal protective frame, a set of mounting components and dedicated cables; technical support is also available to users. Supply voltage DC 9–27 V, laser wavelength 905 nm.

  • Type: LiDAR scanner for the Unitree R1 Edu humanoid robot
  • LiDAR module: MID360
  • Field of view: 360° horizontal, −7° to 52° vertical
  • Laser wavelength: 905 nm
  • Supply voltage: DC 9–27 V
  • Compatibility: Unitree R1 Edu (all versions), self-assembly
  • In the box: MID360 LiDAR, metal protective frame, mounting kit, cables, technical support
  • MPN: R1; manufacturer Unitree
  • Warranty: 12 months

Specifications

BrandUNITREE
Weight (boxed)0.85 kg
Warranty12 months
EAN5905156109124
