Xilence XG172 Xilent Beam PC case, ATX, 3 × 120 mm ARGB, black
XILENCE

Xilence XG172 Xilent Beam PC case, ATX, 3 × 120 mm ARGB, black

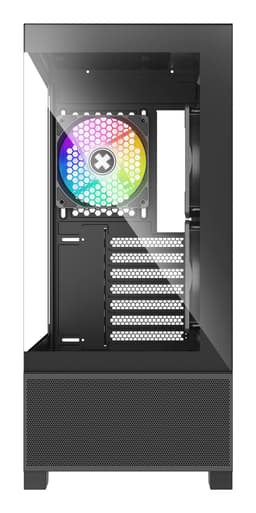

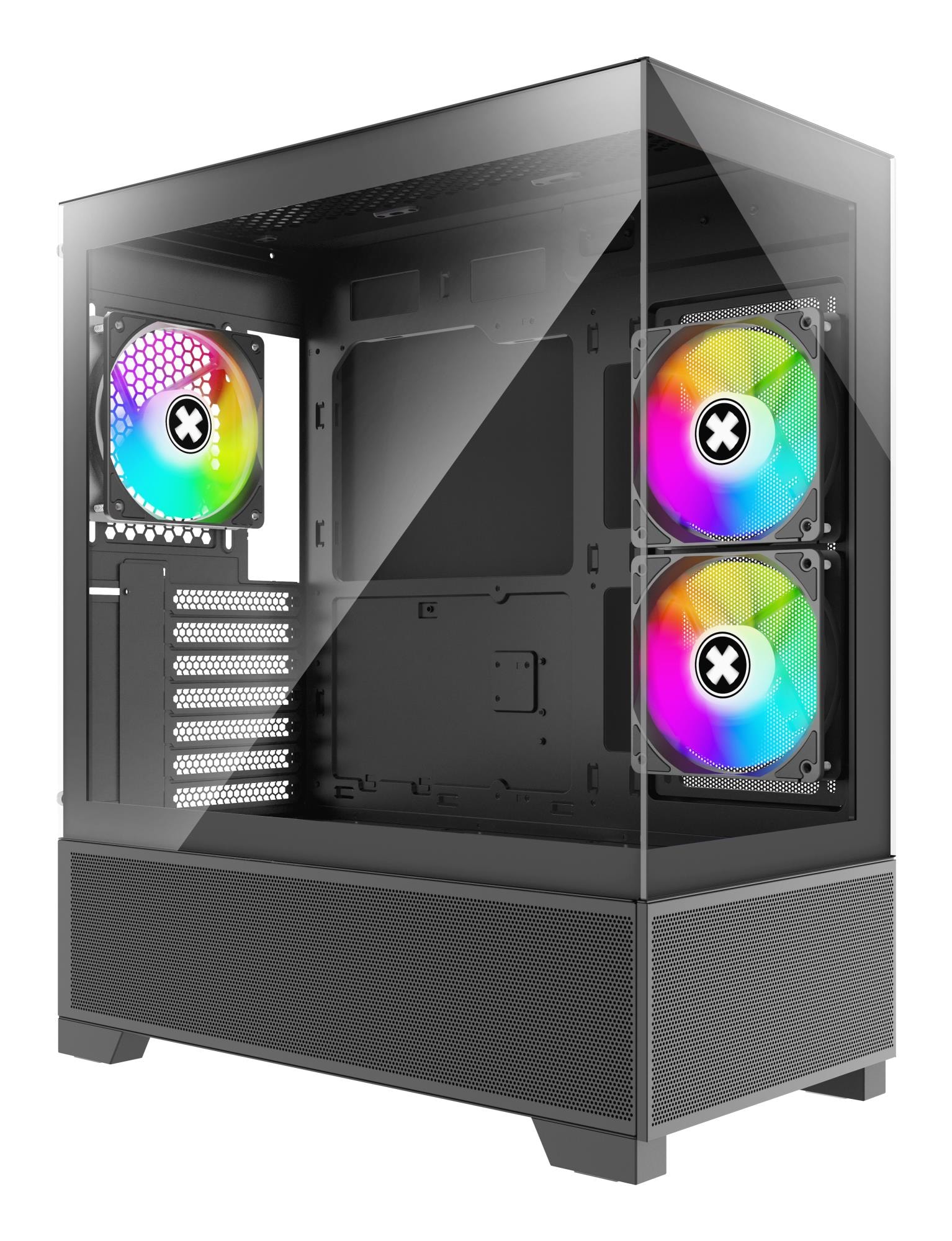

The Xilence XG172 Xilent Beam is an aquarium-style Midi Tower PC case for ATX, micro-ATX and Mini-ITX motherboards. A panoramic tempered glass window shows off the hardware, three PWM ARGB fans come included, and the lower section is mesh to keep air flowing.

  • Form factor: Midi Tower, ATX / micro-ATX / Mini-ITX boards, ATX power supply
  • Clearance: graphics card up to 410 mm, CPU cooler up to 170 mm, power supply up to 200 mm
  • Fans: 2 × 120 mm side and 1 × 120 mm rear included, plus room for 3 × 120 or 2 × 140 mm on top and up to 3 × 120 mm at the bottom
  • Radiators: top 240 / 280 / 360 mm, rear 120 mm
  • Front I/O: 1 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0, audio jack, reset and RGB buttons
  • Build: SPCC steel and tempered glass, 3 × 2.5″ and 2 × 3.5″ bays, 7 expansion slots

Description

A panoramic window that does not choke cooling

The large tempered glass window puts the motherboard, graphics card and lighting on display and gives the case its aquarium look. So the glass does not hold back cooling, the lower section is mesh and three 120 mm PWM ARGB fans are already fitted. A PWM/ARGB control board runs the lighting and fan speed, and the front panel has a dedicated RGB button.

Who this PC case is for

Gaming PC builders who want to show their components and need the space for them: it takes a graphics card up to 410 mm long, an air cooler up to 170 mm tall or a liquid cooler with a 360 mm radiator on top. Well thought-out cable routing keeps the view behind the glass tidy. The case measures 220 × 421 × 490 mm and weighs 7.09 kg.

Specifications

General

BrandXILENCE
Form factorMidi Tower
Model nameXG172
Product colourBlack
MaterialSPCC/Tempered glass
TypePC
ManualYes
Side windowYes
IlluminationYes
Suitable forGaming
Cable managementYes
Maximum PSU length200
Illumination colourMulti
Number of 2.5" bays3
Number of 3.5" bays2
Rear fans installed1x 120 mm
Side fans installed2x 120 mm
Illumination locationCase fans
Number of expansion slots7
EAN4044953504082

Display

Tempered glass panel(s)Yes

Processor

Maximum CPU cooler height170

Storage

SSD form factor2.5"
Supported HDD sizes3.5

Graphics

Maximum graphics card length410

Ports

Combo headphone/mic portYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.01

Keyboard & controls

Reset buttonYes
On/off buttonYes
RGB control buttonYes

Battery & power

Power supply includedNo
Supported power supply form factorsATX

Performance & capacities

Anti-dust filterYes
Cooling & Ventilation SystemCooling Fan Support (mm): Side:2x 120mm Top:3x120mm / 2x140mm Rear:1 x 120mm Bottom: up to 3 x 120mm

Features

Case product featuresFan control panel/Transparent panel
Top fans diameters supported120/140
Top radiator sizes supported240/280/360
Rear fans diameters supported120
Rear radiator sizes supported120
Side fans diameters supported120
Bottom fans diameters supported120
Number of top fans supported (max)3
Supported motherboard form factorsATX/micro ATX/Mini-ITX
Number of rear fans supported (max)1
Number of side fans supported (max)2
Pulse-width modulation (PWM) supportYes
Number of bottom fans supported (max)3

Dimensions & weight

Width220 mm
Depth421 mm
Height490 mm
Weight7.09 kg

Questions & answers

Will a long graphics card fit?

Yes, the graphics card can be up to 410 mm long. No power supply is included; it takes an ATX unit up to 200 mm long.

Can I fit a 360 mm liquid cooler?

Yes, the top of the case takes a 240, 280 or 360 mm radiator. The rear takes a 120 mm radiator.

How big is the case?

It is 220 mm wide, 421 mm deep and 490 mm tall, and weighs 7.09 kg.
