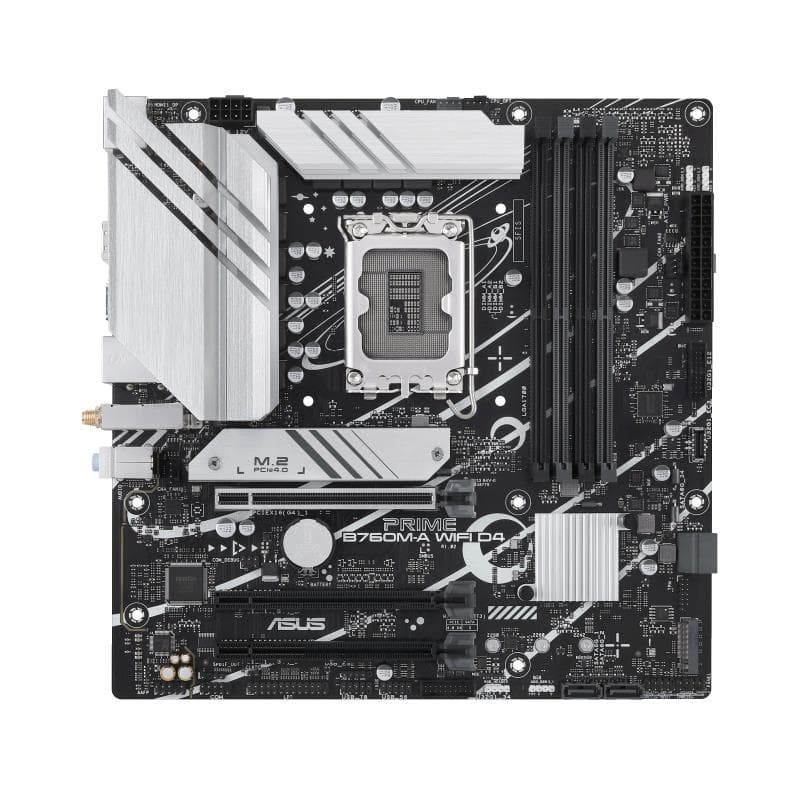

Four DDR4 slots take up to 128 GB, and ASUS OptiMem II trace routing helps memory stay stable at higher speeds. An M.2 heatsink keeps the SSD from throttling during long transfers, while VRM heatsinks and Fan Xpert 2+ software keep the system stable under load. There is a front USB 3.2 Gen 1 Type-C header and three Addressable Gen 2 headers for RGB lighting.
Builders of a 12th or 13th Gen Intel PC who want to reuse the DDR4 memory they already have. Three display outputs suit office work on integrated graphics, the PS/2 port serves an older keyboard, and the micro-ATX format fits a smaller case.
| Brand | ASUS |
|---|---|
| Line-in | Yes |
| BIOS type | UEFI AMI |
| Component for | PC |
| BIOS memory size | 128 |
| Headphone outputs | 3 |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| RGB LED pin header | Yes |
| Number of memory slots | 4 |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| EAN | 4711081982661 |
| Processor manufacturer | Intel |
|---|---|
| Motherboard chipset | Intel B760 |
| Processor socket | LGA 1700 |
| CPU fan connector | Yes |
| Motherboard chipset family | Intel |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory | 128 GB |
|---|---|
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported storage drive types | HDD & SSD |
|---|---|
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Microphone in | Yes |
|---|---|
| Audio output channels | 7.1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 2 |
|---|---|
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 3 |
| 12V power connector | Yes |
| DisplayPort version | 1.4 |
| PS/2 ports quantity | 1 |
| S/PDIF out connector | Yes |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
|---|
| Clear CMOS button | Yes |
|---|
| RAID levels | 0/1/10/5 |
|---|---|
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 |
| Supported memory clock speed (max) | 5333 |
| Cables included | SATA |
|---|---|
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Parallel processing technology support | Not supported |
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
No. This is the D4 version and supports DDR4 DIMM modules only, up to 128 GB in total.
Intel Core i3, i5, i7, i9, Pentium Gold and Celeron processors for the LGA 1700 socket; the manufacturer names 12th and 13th Gen Intel Core.
The rear panel has two HDMI outputs and one DisplayPort. They work with a processor that has integrated graphics.
