All four ports run at 2.5 Gbit/s, and each can take the WAN or LAN role as needed. That lets you connect fast fibre internet, a NAS and a desktop computer without a gigabit port holding them back. Traffic through the 2.5G ports gets top priority in the router. The USB 3.2 port can share files across the network (Samba, FTP) or take a mobile internet modem.
Homes with many smart devices and phones that already support Wi-Fi 7 or 6 GHz; home offices that need VPN and a separate network for IoT devices (Smart Home Master allows up to three SSIDs); and larger houses where coverage is extended with AiMesh nodes.
| Brand | ASUS |
|---|---|
| Product type | Tabletop router |

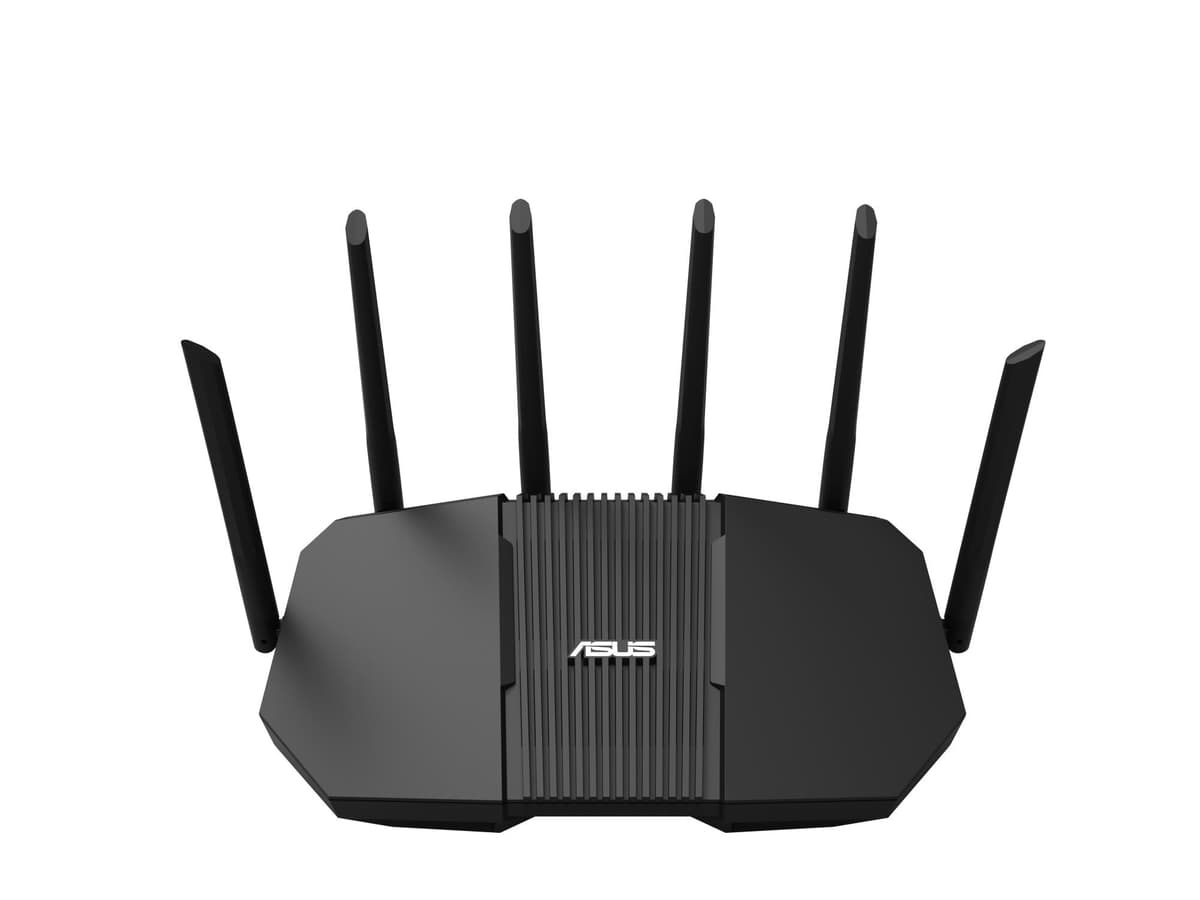

| Model name | RT-BE90U BE9400 AiMesh |
| Product colour | Black |
| Firewall | Yes |
| Modulation | 4096-QAM/OFDMA |
| DHCP server | Yes |
| Media server | Yes |
| Warranty card | Yes |
| Parental control | Yes |
| System event log | Yes |
| Quick start guide | Yes |
| Dynamic DNS (DDNS) | Yes |
| Built-in FTP server | Yes |
| WAN connection type | RJ-45 |
| EAN | 4711636276719 |
| Processor cores | 4 |
|---|---|
| Processor frequency | 1500 GHz |
| Built-in processor | Yes |
| Internal memory | 1000 GB |
|---|
| Support Samba (storage) | Yes |
|---|
| Flash memory | 256 MB |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet WAN | Yes |
| SIM card slot | No |
| Port forwarding | Yes |
| Port triggering | Yes |
| Wake-on-LAN ready | Yes |
| 3G/4G USB modem compatibility | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| WLAN data transfer rate (max) | 9400 Mbit/s |
| Antenna design | External |
| Security algorithms | SSH/WPA/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| Antennas quantity | 6 |
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Network address translation (NAT) | Yes |
| WLAN data transfer rate (first band) | 688 |
| WLAN data transfer rate (third band) | 5764 |
| WLAN data transfer rate (second band) | 2882 |
| Firewall security | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
|---|
| On/off switch | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| AC adapter included | Yes |
|---|---|
| AC input voltage | 110 – 240 V |
| AC input frequency | 50/60 |
| Output voltage | 12 V |
| Power source type | AC |
| Output current | 2.5 |
| MAC address filtering | Yes |
|---|
| Cables included | LAN (RJ-45) |
|---|---|
| LED indicators | Power, LAN, WAN |
| DMZ support | Yes |
| VPN support | nstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark Support Nord VPN |
| Package type | Box |
| Quality of Service (QoS) support | Yes |
| Width | 320 mm |
|---|---|
| Depth | 180 mm |
| Height | 191 mm |
| Weight | 761 g |
There is no SIM card slot. Mobile internet still works through 4G LTE/5G tethering from a phone or a 3G/4G modem plugged into the USB port.
Yes. RT-BE90U supports ASUS AiMesh, which builds a single mesh network with seamless roaming together with other AiMesh-compatible ASUS devices.
As a VPN server WireGuard, OpenVPN, IPSec and PPTP; as a client WireGuard, OpenVPN, L2TP and PPTP. There is also VPN Fusion plus support for Surfshark and NordVPN.
