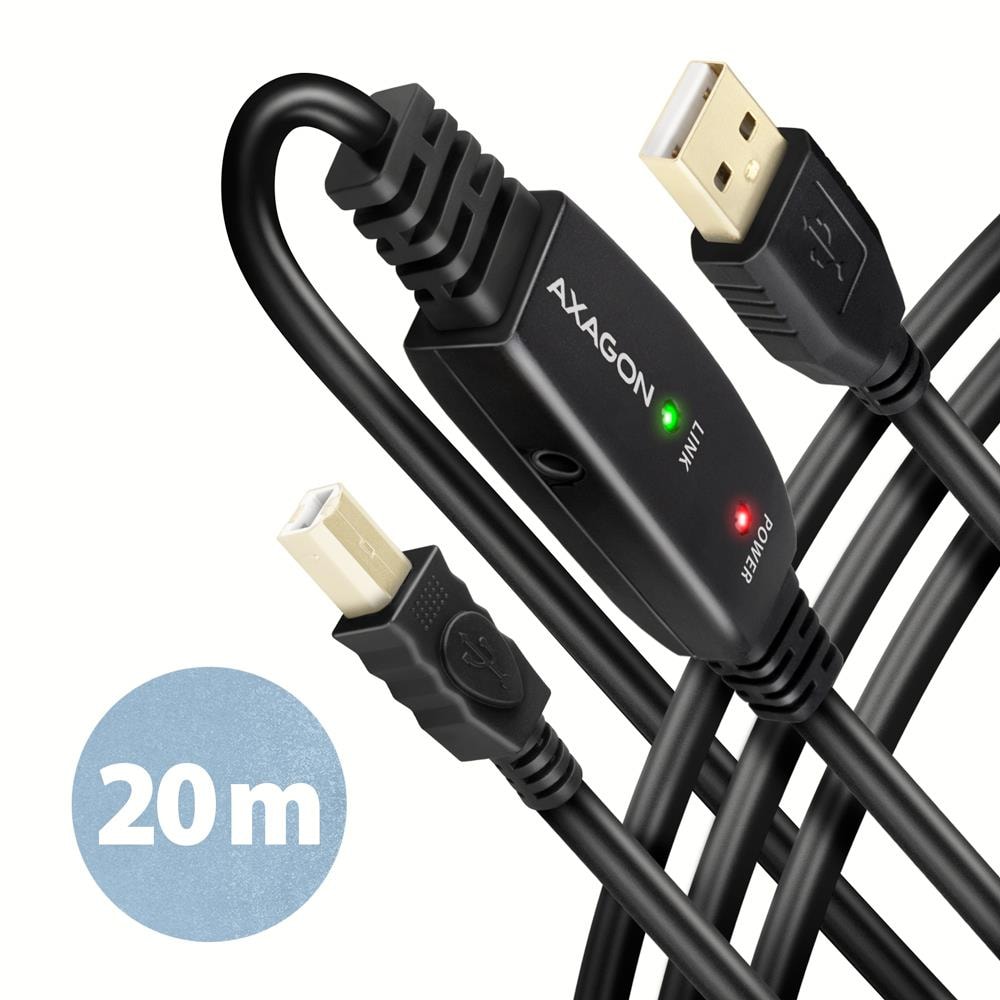

A USB-B plug on the device end means the printer or scanner connects directly, with no adapter in between. The active part boosts the signal and can take auxiliary power from a phone charger with a USB-A output of at least 5 V / 1 A when needed. Two LEDs show power and device connection. No drivers are needed: Axagon lists Windows XP to 11, Windows Server 2003 to 2022, Mac OS X 10.x and Linux (kernel 2.6.x and later).
Warehouses, workshops and open-plan offices where a printer, scanner or plotter stands up to 20 m from the computer. The cable weighs 674 g and its compact active part fits into a cable duct. The shorter 15 m version is the ADR-215B.
| Brand | AXAGON |
|---|---|
| Model name | ADR-220B USB 2.0 A-M -> B-M active connecting/repeater cable 20m |
| Product colour | Black |
| Plug and Play | Yes |
| Maximum data transfer rate | 0.48 |
| EAN | 8595247907233 |
| USB version | USB 2.0 |
|---|---|
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 20 m |
|---|
| Package type | Box |
|---|
| Weight | 674 g |
|---|
Yes, Axagon suggests its ADR-210 USB extension cable for that. A regular passive USB cable can also be used behind the active one.
The box contains a 1.2 m USB-A to 3.5 mm power cable but no charger. In most cases bus power is enough and auxiliary power is not needed.
In length and weight: the ADR-220B is 20 m and 674 g, the ADR-215B is 15 m and 517 g. Connectors, speed and power options are the same.
