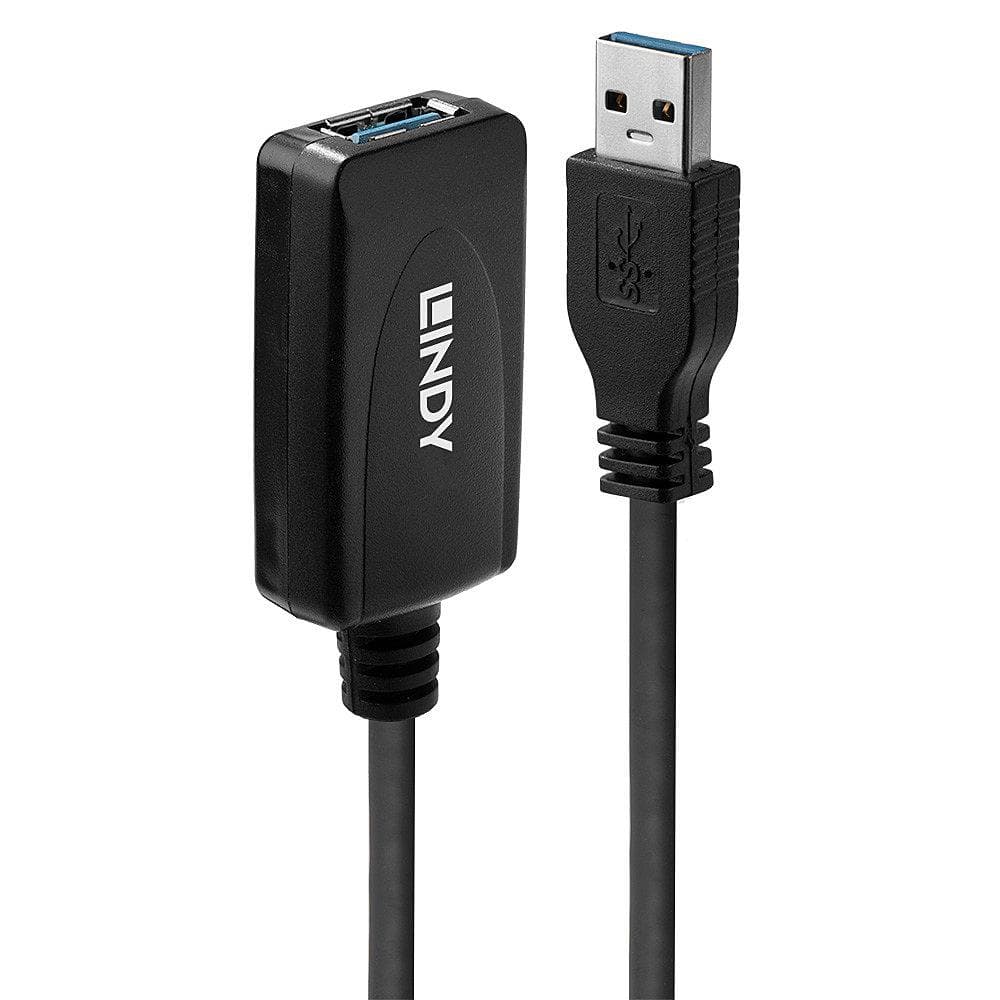

Lindy 43155 active USB 3.0 extension cable 5 m, A–A, 5 Gbit/s
LINDY

Lindy 43155 active USB 3.0 extension cable 5 m, A–A, 5 Gbit/s

The Lindy 43155 is a 5 m active USB 3.0 extension cable that keeps speeds of up to 5 Gbit/s over its full length. Built-in electronics let you place an external drive, webcam or other USB-A device further from a PC, laptop or tablet.

  • Connectors: USB-A male to the computer, USB-A female to the device
  • Length: 5 m, active electronics
  • Data transfer: USB 3.2 Gen 1 (USB 3.0), up to 5 Gbit/s
  • Daisy-chaining: up to 2 cables in series
  • Build: gold-plated contacts, shielded connectors, PVC jacket, 5.5 mm diameter

Description

USB 3.0 speed even five metres away

A passive USB 3.0 cable is usually short because the signal fades quickly at high speed. The active electronics in the 43155 keep transfers at up to 5 Gbit/s, so it also suits copying large files to an external drive. USB 3.0, 3.1 Gen 1 and 3.2 Gen 1 are the same 5 Gbit/s standard, and with any USB-A computer the cable is Plug and Play. Operating temperature is 0–60 °C.

Who this USB cable is for

Meeting rooms where the camera sits by the screen and the computer under the table: Google has certified this cable for connecting an ASUS Chromebox and a USB camera in Google Hangouts Meet hardware. Also home and office users whose external drive or webcam has to sit further from the computer.

Specifications

General

BrandLINDY
Model name5m USB 3.0 Active Extension
Product colourBlack
Cable typeRound cable
AWG wire size28/24
Cable diameter5.5
Contact materialBrass
Bend radius (min)55
Conductor materialTinned copper
Nominal attenuation1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
Transmission mediumTwisted pair
Maximum data transfer rate5000
EAN4002888431552

Storage

Storage temperature (T-T)0 - 70

Ports

USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector materialGold
Connector shieldingYes
Cable jacket materialPolyvinyl chloride (PVC)
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector shield materialAluminium
Connector contacts platingGold
Connector housing materialPlastic
Connector 1 dimensions (WxDxH)16 x 48 x 6
Connector 2 dimensions (WxDxH)24 x 46 x 12

Battery & power

Cable length5 m

Performance & capacities

Operating temperature (T-T)0 – 60 °C

Features

Package typeBlister

Dimensions & weight

Weight220 g

Questions & answers

How many cables can be connected in a row?

Lindy allows up to two 43155 cables in series.

Does it work with a USB 2.0 device?

Yes, USB 3.0, 3.1 and 3.2 computers, cables and devices are compatible with each other; a USB 2.0 device runs at its own speed.

Can it be used with a video conferencing camera?

Yes, it is certified by Google for the link between an ASUS Chromebox and a USB camera in Google Hangouts Meet hardware.
