GIGABYTE

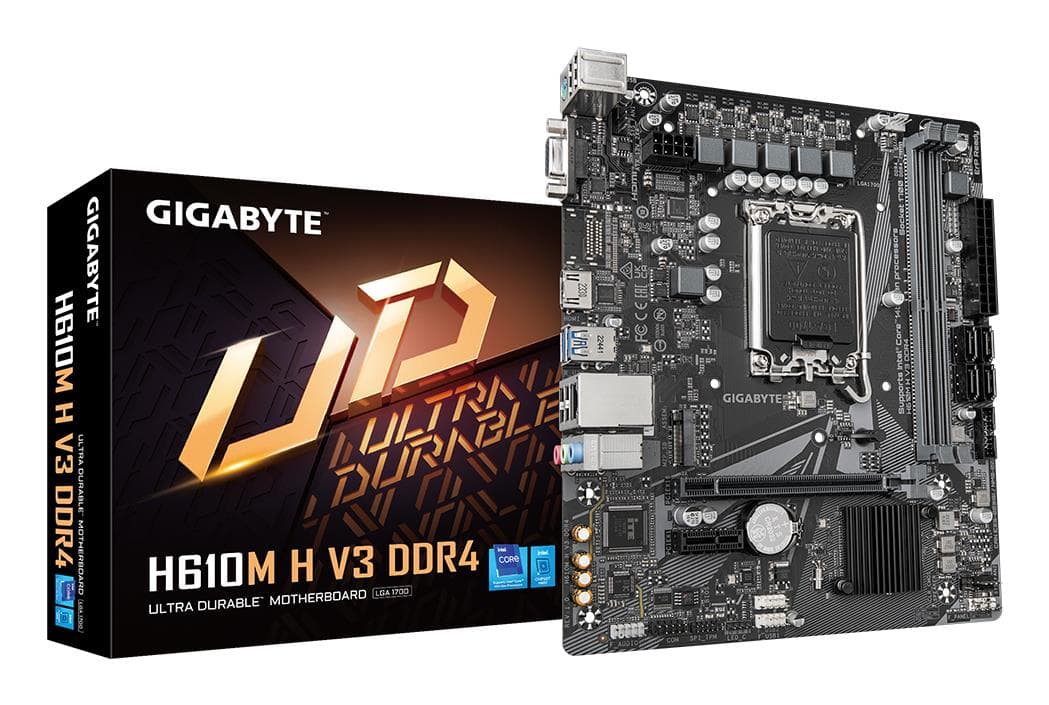

Gigabyte H610MHV3 DDR4 LGA1700 Micro-ATX Intel H610 Motherboard

Maximum resolution4096 x 2304
Processor manufacturerIntel
Maximum internal memory64 GB
Number of HDDs supported1
Graphics cardHD Graphics
Battery technologyLithium-Manganese Dioxide (LiMnO2)

The Gigabyte H610MHV3 DDR4 is a Micro-ATX Intel motherboard built on the H610 Express chipset with an LGA1700 socket , making it a solid foundation for 12th and 13th Gen Intel Core builds where space and budget matter without sacrificing essential connectivity.

Description

Compact Layout, Complete Connectivity

LGA1700 socket with Intel H610 chipset — supports current-generation Intel Core processors
2x DDR4 DIMM slots in a dual-channel configuration for straightforward memory upgrades
PCIe 4.0 x16 slot for a dedicated graphics card plus a PCIe 3.0 x1 slot for expansion cards
1x M.2 slot (PCIe 3.0 x4) for fast NVMe SSD storage
Rear I/O includes HDMI, D-Sub, 4x USB 2.0, 2x USB 3.2, RJ45 LAN and 3 audio ports

This board suits home office PC builds, entry-level gaming rigs, and everyday desktop systems where a reliable, no-frills Micro-ATX platform is the practical choice.

Specifications

General

Brand	GIGABYTE
Product colour	Black
HDCP	Yes
BIOS type	UEFI AMI
ACPI version	5.0
Component for	PC
BIOS memory size	128
Clear CMOS jumper	Yes
Headphone outputs	3
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
RGB LED pin header	Yes
PC health monitoring	Fan/Temperature/Voltage/Water cooling
PCI Express x1 slots	1
PCI Express x16 slots	1
Number of memory slots	2
Motherboard form factor	micro ATX
Number of M.2 (M) slots	1
Products per shipping (inner) case	1
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Warranty	3 years
EAN	4719331859718

Display

Maximum resolution	4096 x 2304

Processor

Processor manufacturer	Intel
Motherboard chipset	Intel H610 Express
Processor socket	LGA 1700
CPU fan connector	Yes
Motherboard chipset family	Intel
Compatible processor series	Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Supported processor sockets	LGA 1700

Memory

Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM

Storage

Number of HDDs supported	1
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III

Graphics

Graphics card	HD Graphics
Graphics card family	Intel

Audio

Audio chip	Realtek ALC897
Microphone in	Yes
Audio output channels	7.1
Front panel audio connector	Yes

Ports

HDMI ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB connector type	USB Type-A
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
TPM connector	Yes
USB 2.0 connectors	2
12V power connector	Yes
PS/2 ports quantity	1
Serial port headers	1
DVI-D ports quantity	1
DisplayPorts quantity	2
Front panel connector	Yes
Ethernet interface type	Gigabit Ethernet
VGA (D-Sub) ports quantity	1
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1

Connectivity

Wi-Fi	No

Software & security

Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Windows operating systems supported	Windows 10 x64/Windows 11 x64

Keyboard & controls

Clear CMOS button	Yes

Battery & power

Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Number of battery cells	1
Power source type	ATX
Battery weight	3
Lithium weight per battery	0.07

Performance & capacities

Cooling type	Active
Supported memory clock speeds	2133/2400/2666/2933/3000/3200
Supported memory clock speed (max)	3200

Features

Cables included	SATA
Batteries included	Yes
Supported memory types	DDR4-SDRAM
Supported memory module capacities	12GB/16GB/1GB/2GB/32GB/4GB/8GB
Parallel processing technology support	Not supported
