MikroTik CSS318-16G-2S+IN network switch 16 × 1G, 2 × SFP+ 10G, SwOS
MIKROTIK

MikroTik CSS318-16G-2S+IN network switch 16 × 1G, 2 × SFP+ 10G, SwOS

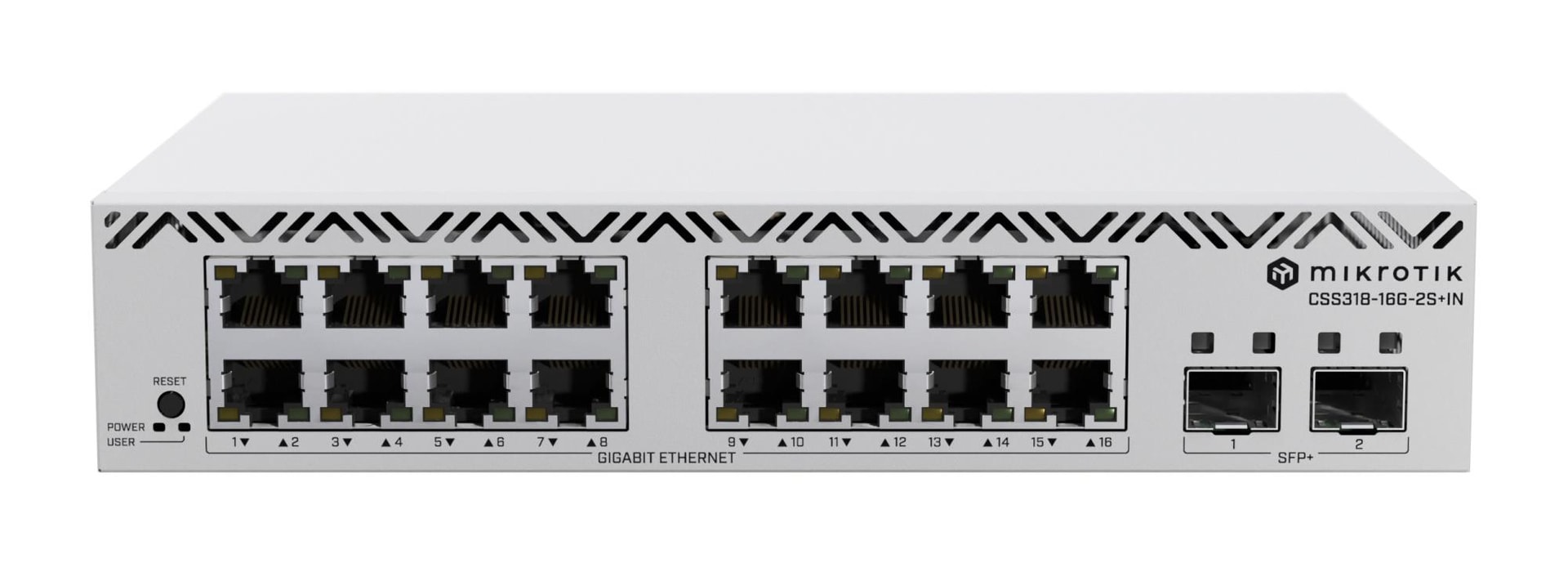

The MikroTik CSS318-16G-2S+IN is a managed network switch with sixteen gigabit ports and two 10G SFP+ uplinks. It fits setups where 24 ports are too many and 8 are not enough, and the compact 10-inch housing goes into a small rack or a standard 19″ rack.

  • Ports: 16 × RJ-45 10/100/1000 Mbit/s, 2 × SFP+ up to 10 Gbit/s
  • Management: SwOS in the browser: VLANs, traffic mirroring, bandwidth limiting, MAC filtering, broadcast storm control
  • Mounting: 10″ rack, 19″ rack or two units side by side in one 1U space; 218 × 157 × 44 mm
  • Power: internal 100–240 V AC, 10 W without attachments, up to 13 W at full load; no PoE
  • Hardware: 98DX2518 switch chip, 16 MB flash, operating range –40 to 70 °C

Description

SwOS: core managed-switch features in the browser

MikroTik's lightweight SwOS opens directly in a web browser and needs no extra software. From there you can split the network into VLANs, mirror traffic for analysis, limit port bandwidth, filter MAC addresses and decide which ports may forward traffic to each other. Some MAC and IP header fields can be adjusted too.

Who this network switch is for

A small or medium office, or a home server cabinet, with up to 16 wired devices and a need for a fast link to a NAS or server. The two SFP+ ports carry traffic onwards at 10 Gbit/s, and the low power draw suits a cabinet that runs around the clock.

Specifications

General

BrandMIKROTIK
Product colourWhite
StackableYes
Rack mountingYes
Installed SFP+ modules quantity2
Mean time between failures (MTBF)200000
EAN4752224009227

Processor

Processor model98DX2518

Camera

Flash memory16 MB

Ports

Power over Ethernet (PoE)No
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16

Software & security

Operating system installedSwOS

Keyboard & controls

Switch typeManaged

Battery & power

Power consumption (max)13 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC

Performance & capacities

Operating temperature (T-T)0 – 40 – 70 °C

Features

10G supportYes

Dimensions & weight

Width218 mm
Depth157 mm
Height44 mm

Questions & answers

Can it go in a 19-inch rack?

Yes, the switch fits a 10″ rack, a standard 19″ rack, or two units side by side in a single 1U space. Which mounting parts are included, the manufacturer does not specify.

Can I set up VLANs?

Yes, SwOS supports VLAN configuration, along with traffic mirroring, bandwidth limiting and MAC filtering.

Do the ports supply PoE?

No, this model has no PoE. Cameras or access points need a separate PoE switch or injector for power.
