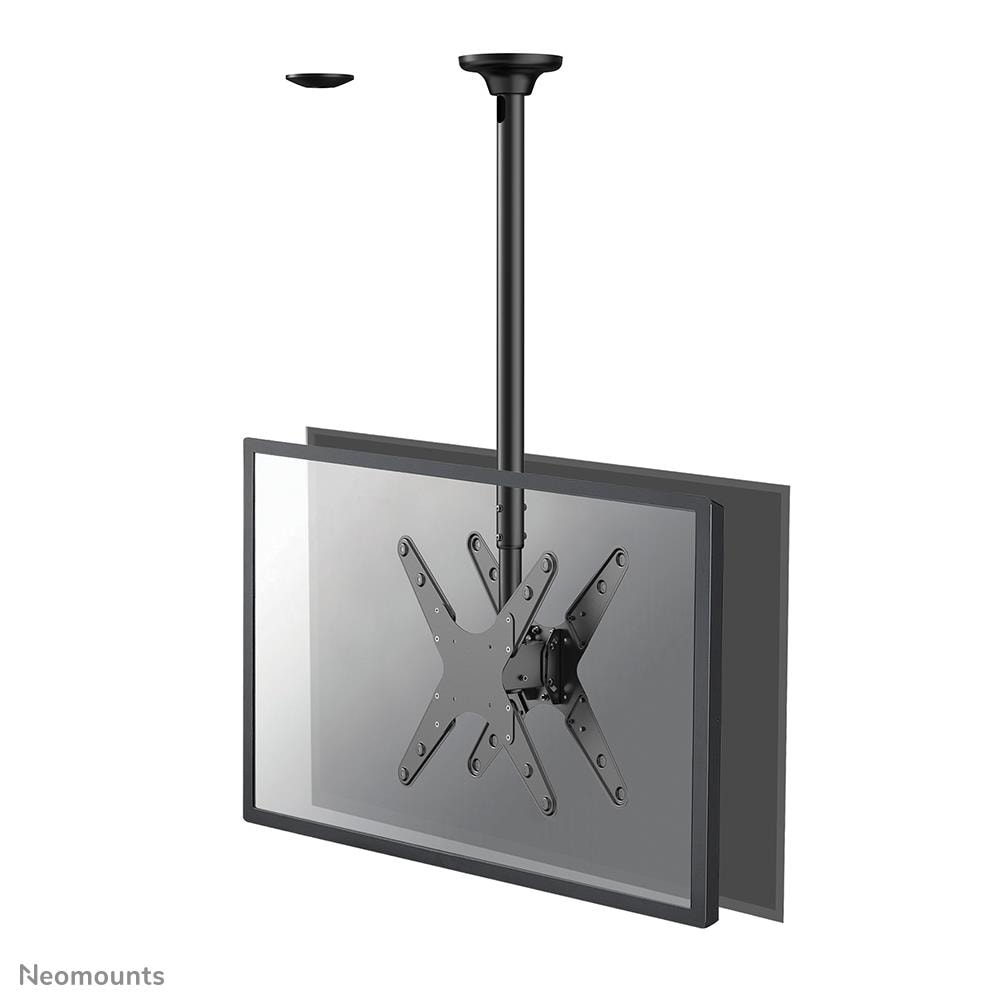

Neomounts FPMA-C340DBLACK Dual Ceiling TV Mount, Black

Maximum screen size75
Maximum weight capacity50
Angle of rotation6
Height1785 mm

Mount two large screens overhead with complete flexibility using the Neomounts FPMA-C340DBLACK — a full-motion ceiling mount designed for dual flat-panel displays up to 75 inches each. With a combined weight capacity of 100 kg (50 kg per screen) and compatibility with VESA patterns from 100x100 mm to 400x400 mm, this mount handles virtually any modern TV or monitor setup with ease.

Description

Achieving the perfect viewing angle is effortless thanks to the mount's multi-directional articulation: 10° tilt, 360° swivel, and 6° rotation. Drop height is adjustable between 106 and 156 cm, giving you precise control over screen positioning in any room. An integrated cable management system neatly conceals wiring from ceiling to screen, keeping your space clean and professional-looking.

Finished in sleek black, the FPMA-C340DBLACK includes an additional cover for installation on suspended ceilings, making it suitable for both home and commercial environments such as bars, gyms, or waiting areas. For installations requiring extra drop length, the Neomounts NS-EP100BLACK extension pole can add up to 107.5 cm of additional height.

Specifications

General

Brand	NEOMOUNTS
Product colour	Black
Housing material	Steel
Swivelling	Yes
Orientation	Landscape
Pivot angle	-3 - 3
Swivel angle	360
Mounting type	Ceiling
Tilt adjustment	Yes
Cable management	Yes
Tilt angle range	-10 - 0
Height adjustment	Yes
Maximum VESA mount	400 x 400
Minimum VESA mount	100 x 100
Swivel angle range	-180 - 180
Height adjustment type	Manual
Height adjustment range	1060 - 1560
Products per pallet (EU)	30
Master (outer) case width	950
Master (outer) case height	310
Master (outer) case length	270
Master (outer) case net weight	14500
Master (outer) case gross weight	17900
Products per master (outer) case	2
EAN	8717371449445

Display

Panel mounting interface	100 x 100/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400
Maximum screen size	75
Minimum screen size	32
Number of displays supported	2
Maximum weight capacity (per display)	50
