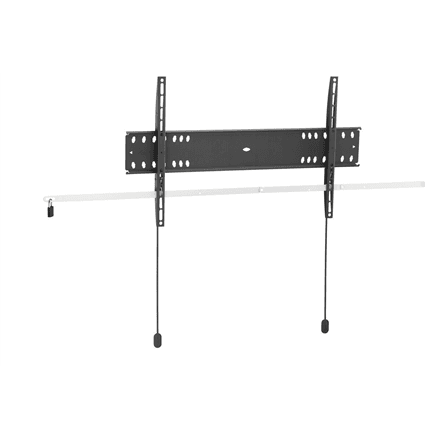

Vogels PFW 4700 Locking Wall Mount 55–80", up to 75 kg

VESA mountingYes
Net weight2.6 kg
Distance to the wall (min)27 mm
Maximum screen size compatibility80 "
Maximum weight (capacity)75 kg

A professional wall mount for large screens. The lock is aimed at public spaces: a conference room, a school or a shop where the screen must stay on the wall.

Description

Key features

Locking mechanism. The screen cannot be lifted off without a key.
55–80", up to 75 kg. The highest load rating in this class.
VESA up to 600 × 400 mm. Suits flat and curved televisions.
27 mm from the wall. A fixed position with minimal gap.

Specifications

Brand	Vogels
Colour of product	Black
VESA mounting	Yes
Net weight	2.6 kg
Distance to the wall (min)	27 mm
Maximum screen size compatibility	80 "
Maximum weight (capacity)	75 kg
Mounting interface compatibility (max)	600 x 400 mm
Mounting interface compatibility (min)	100 x 100 mm
Placement	Wall mount
Screen size compatibility	55-80 "
VESA mounting interfaces	100 x 100, 100 x 200, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 200, 600 x 300, 600 x 400 mm
Compatibility	Flat TV, Curved TV
Other features	The PFW 4700 locking fixed wall mount helps protect large flat panel displays in public areas against theft
EAN	8712285338649
