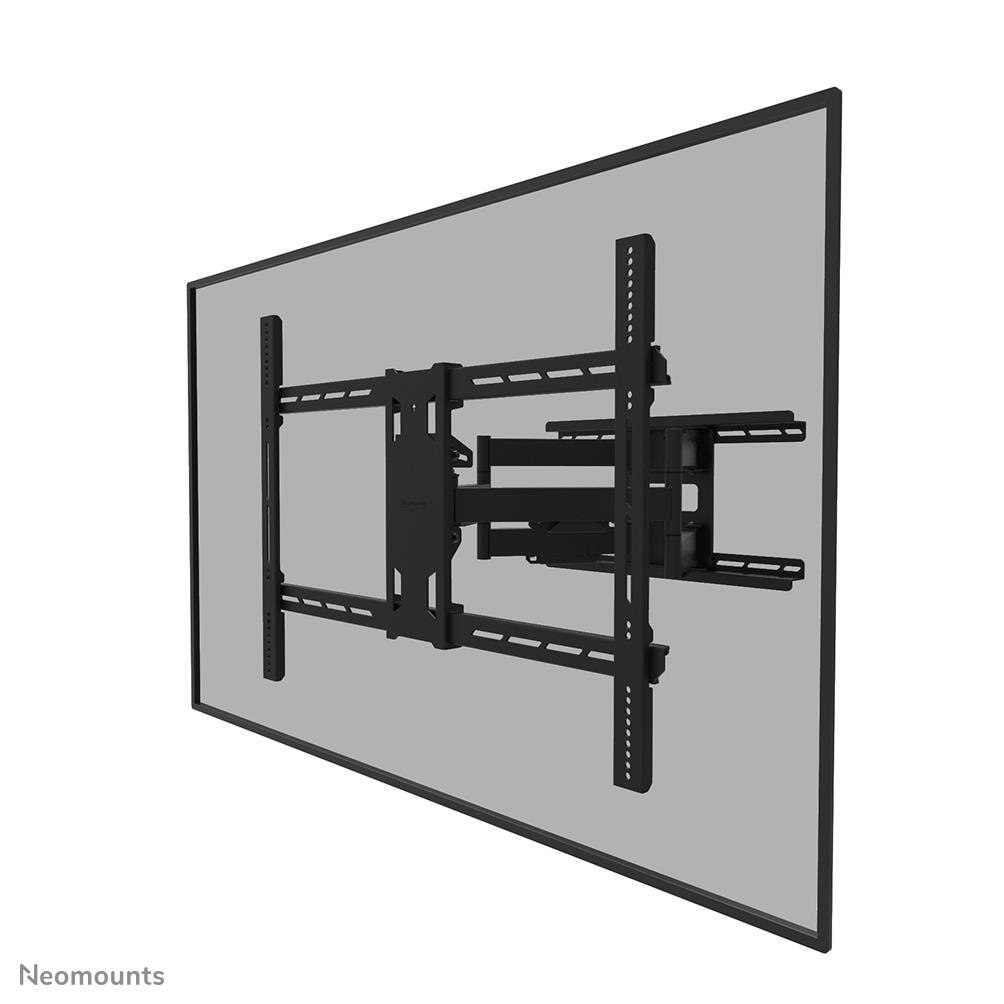

Neomounts WL40S-950BL18 Full-Motion TV Wall Mount

  • Maximum screen size110
  • Maximum weight capacity125
  • Angle of rotation6
  • Width880 mm
  • Package net weight22000

The Neomounts WL40S-950BL18 is a heavy-duty wall mount designed for large screens ranging from 55 to 110 inches, with an impressive weight capacity of up to 125 kg. Built from solid steel and finished in sleek black, this mount provides a stable and secure foundation for your TV while sitting just 82 mm from the wall when not in use.

Description

Enjoy complete flexibility in positioning thanks to full-motion adjustability — tilt your screen anywhere between -5° and +15°, swivel it left or right, and rotate it to the perfect viewing angle. Compatible with a wide range of VESA patterns from 300x200 mm up to 800x600 mm, making it suitable for most major TV brands and models.

Weighing 20.4 kg, this mount is engineered for permanent, professional-grade installation in living rooms, conference halls, or commercial display environments. Whether you are setting up a home cinema or a large-format display space, the WL40S-950BL18 delivers the reliability and versatility you need.

Specifications

General

BrandNEOMOUNTS
Product colourBlack
Housing materialSteel
LockableNot lockable
RotatingYes
SwivellingYes
Pivot angle-3 - 3
Mounting kitYes
Mounting typeWall
Accepts padlockNo
Tilt adjustmentYes
Cable managementYes
Tilt angle range-5 - 15
Height adjustmentYes
Maximum VESA mount800 x 600
Minimum VESA mount300 x 200
Swivel angle range-45 - 45
Height adjustment range0 - 10
Products per pallet (EU)20
Master (outer) case width450
Distance to the wall (max)703
Distance to the wall (min)82
Master (outer) case height950
Master (outer) case length100
Master (outer) case net weight20400
Master (outer) case gross weight22000
Products per master (outer) case1
Warranty5 years
EAN8717371449575

Display

Panel mounting interface300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/680 x 300/800 x 200/800 x 400/800 x 500/800 x 600
Maximum screen size110
Minimum screen size55
Number of displays supported1
Maximum weight capacity (per display)125

Storage

Maximum weight capacity125

Performance & capacities

Angle of rotation6

Features

Package net weight22000

Dimensions & weight

Width880 mm
Depth82 mm
Height630 mm
Weight20.4 kg
Depth (max)82
