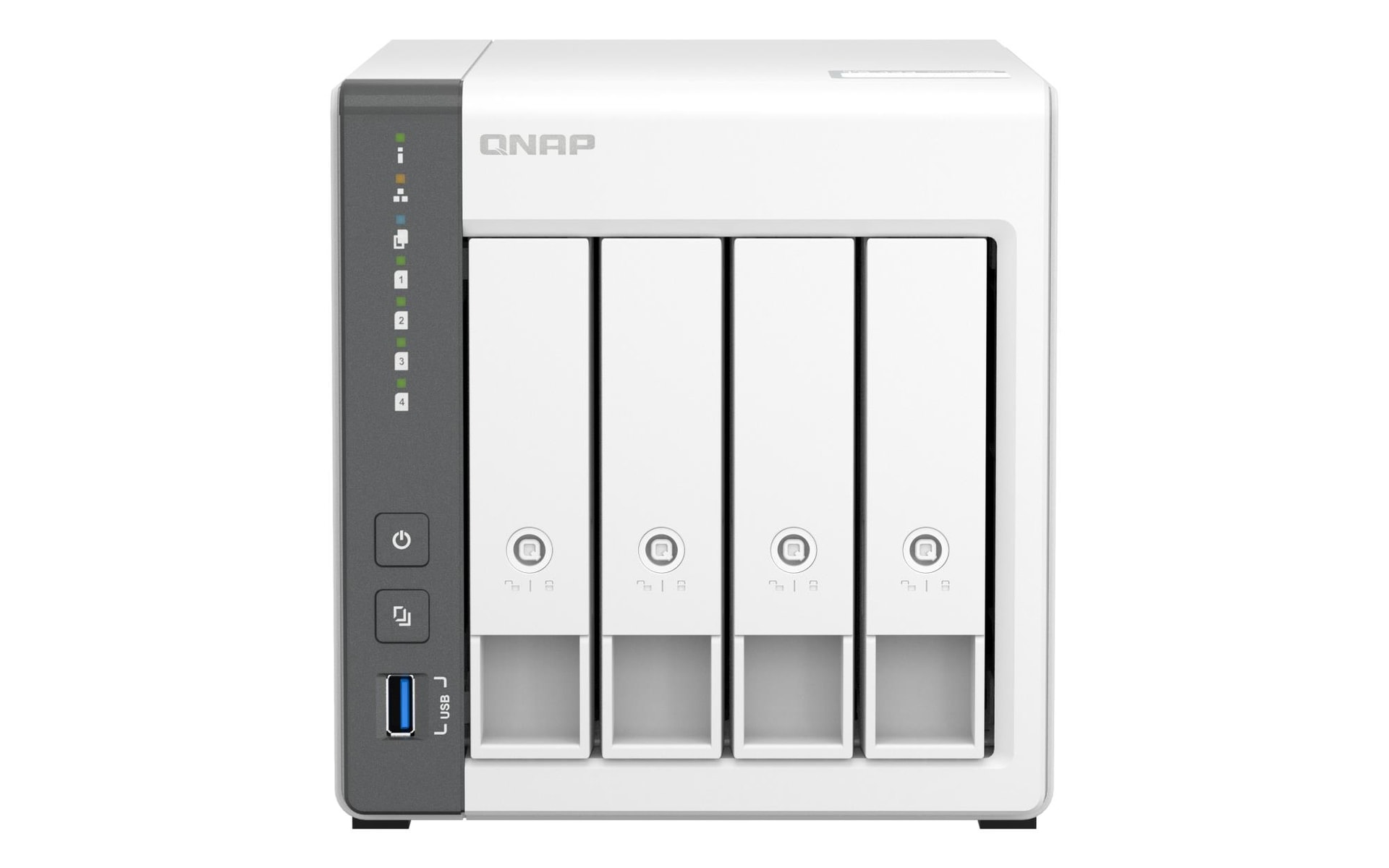

QNAP TS-433-4G NAS, 4 bays, ARM Cortex-A55, 4 GB, 2.5GbE, white

The QNAP TS-433-4G is a four-bay NAS for the home and home office: one shared place for family photos, films and computer backups. A quad-core ARM Cortex-A55 processor, 4 GB of memory, an NPU that accelerates AI tasks, plus a 2.5GbE and a 1GbE port make everyday file work and media browsing smooth.

  • Drives: 4 bays for 3.5″ and 2.5″ SATA HDDs or SSDs, hot-swappable and lockable; drives not included
  • Processor and memory: ARM Cortex-A55, 4 cores, 2.0 GHz, NPU; 4 GB (maximum capacity)
  • Network: 1 × 2.5GbE and 1 × 1GbE RJ-45
  • USB: 1 × USB 3.2 Gen 1, 2 × USB 2.0, One-Touch Copy
  • RAID and system: RAID 0, 1, 5, 6, 10, JBOD; QNAP QTS 5.0.1
  • Chassis: white, 160 × 225 × 168.5 mm, 2.07 kg, external 90 W power adapter

Description

A 2.5GbE port that speeds up your home network

The NAS has two RJ-45 ports: one 2.5-gigabit and one gigabit. The 2.5GbE port adds noticeable speed when moving large video files and backups, provided your router, switch or computer supports it. Laptops can use QNAP's USB 3.2 Gen 1 to 5GbE adapter, and desktops can take a PCIe network card. Wake-on-LAN lets you wake the NAS over the network.

Four drives and RAID that grows with your collection

Four hot-swappable bays take 3.5-inch and 2.5-inch SATA drives and SSDs, and the trays can be locked with the included key. RAID 0, 1, 5, 6, 10 and JBOD are supported: RAID 5 tolerates one failed drive and RAID 6 two. You can add capacity by swapping drives one by one for larger ones, attaching a QNAP expansion enclosure or mounting cloud storage.

An NPU that recognises faces and objects in photos

The quad-core 64-bit ARM Cortex-A55 runs at 2.0 GHz, and its built-in NPU accelerates face and object recognition in QNAP AI Core, so QuMagie sorts your photos by people and things on its own. ARM NEON technology speeds up video processing. The 4 GB of memory is the maximum for this model and is enough for files, media and light Docker containers.

One-touch backup and secure remote access

Plug a flash drive or external hard drive into the front USB port, press the One-Touch Copy button and the files are copied to the NAS. Hybrid Backup Sync sends backups to the cloud, while snapshots protect against ransomware and accidental deletion. myQNAPcloud gives you access to files over the internet, QVPN supports WireGuard, and two-step verification plus QuFirewall keep outsiders out.

An efficient white chassis with a large fan

The chassis measures 160 × 225 × 168.5 mm and weighs 2.07 kg without drives. A single 120 mm fan provides cooling and power comes from an external 90 W adapter. According to QNAP, typical consumption is 22.5 W and 8.45 W with the drives in standby, so running the NAS around the clock barely registers on the electricity bill. The chassis has a Kensington lock slot and supports up to 200 concurrent connections.

Who this NAS is for

Families who want to gather photos, films and computer backups in one place and drop monthly cloud subscriptions; home offices that share files and work remotely; and users who want RAID 5 protection across four drives and 2.5GbE speed but do not need virtual machines or expandable memory. The white chassis fits into a living room better than a server-style box.

Specifications

General

BrandQNAP
Model nameTS-433
Product colourWhite
TypeNAS
BuzzerYes
SnapshotYes
Disk scanYes
Hot spareYes
System logYes
DHCP serverYes
Chassis typeTower
Device classHome & Home Office
Disk roamingYes
Fan diameter120
RAID rebuildYes
Number of fans1
Backup functionYes
Number of screws28
Dynamic DNS (DDNS)Yes
Built-in FTP serverYes
Management protocolsSNMP V2/V3
Online RAID expansionYes
Online RAID migrationYes
Password authenticationYes
Access Control List (ACL)Yes
Operating relative humidity (H-H)5 - 95
Warranty2 years
EAN4711103080993

Processor

Processor familyARM
Processor modelCortex-A55
Processor cores4
Processor frequency2 GHz
Processor architectureARM Cortex-A55

Memory

Internal memory4 GB

Storage

Drive bay lockingYes
Hot-swap drive baysYes
Drive tray key includedYes
Storage drives installedNo
Storage temperature (T-T)-20 - 70
Installed storage drive typeNo
Storage drive sizes supported2.5/3.5
Supported storage drive typesHDD & SSD
Total installed storage capacity0
Number of storage drives supported4
Supported storage drive interfacesSerial ATA III, Serial ATA II

Camera

Flash memory4000 MB

Ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB portYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates100/1000/2500
Cable lock slotYes
Cable lock slot typeKensington
Wake-on-LAN readyYes

Connectivity

Security algorithms256-bit AES/FIPS 140-2/HTTPS/SSH

Software & security

Operating system installedQNAP QTS
Operating system version5.0.1
Mac operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019
Windows operating systems supportedWindows 10/Windows 11/Windows 7/Windows 8

Keyboard & controls

On/off switchYes
Reset buttonYes

Battery & power

Power consumption (typical)22.54 W
AC input voltage100 – 240 V
Fan voltage12
Power cables quantity1
Power supply locationExternal
Concurrent connections200
External power adapterYes
Power consumption (HDD standby)8.45
Power supply unit (PSU) capacity90

Performance & capacities

Operating temperature (T-T)0 – 40 °C
RAID levels0/1/10/5/6/JBOD
Cooling typeActive

Features

Cables includedAC/LAN (RJ-45)
LED indicatorsPower/Reset/USB
Package typeBox
RAID supportYes
iSCSI supportYes
Backup featuresCloud/iSCSI LUN
Browser supportedApple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
S.M.A.R.T. supportYes
Jumbo frames supportYes
Multilingual supportYes
Maximum RAM supported4
Supported file systemsexFAT/ext3/ext4/FAT32/HFS+/NTFS

Dimensions & weight

Width160 mm
Depth225 mm
Height168.5 mm
Weight2.07 kg
Product Net Weight2.07 kg

Questions & answers

Are drives included?

No, the NAS comes without drives. It takes four 3.5-inch or 2.5-inch SATA HDDs or SSDs. A power cable, a network cable and a drive tray key are in the box.

Can the memory be upgraded?

No. According to QNAP, the maximum supported capacity is 4 GB, which is already installed.

Are both network ports 2.5GbE?

No. One port supports 2.5 Gbit/s and the other 1 Gbit/s. Both can be used at the same time.

Does it have an HDMI output or M.2 slots?

The manufacturer data lists neither an HDMI output nor M.2 slots. Media is watched over the network using an app on a smart TV, computer or phone.
