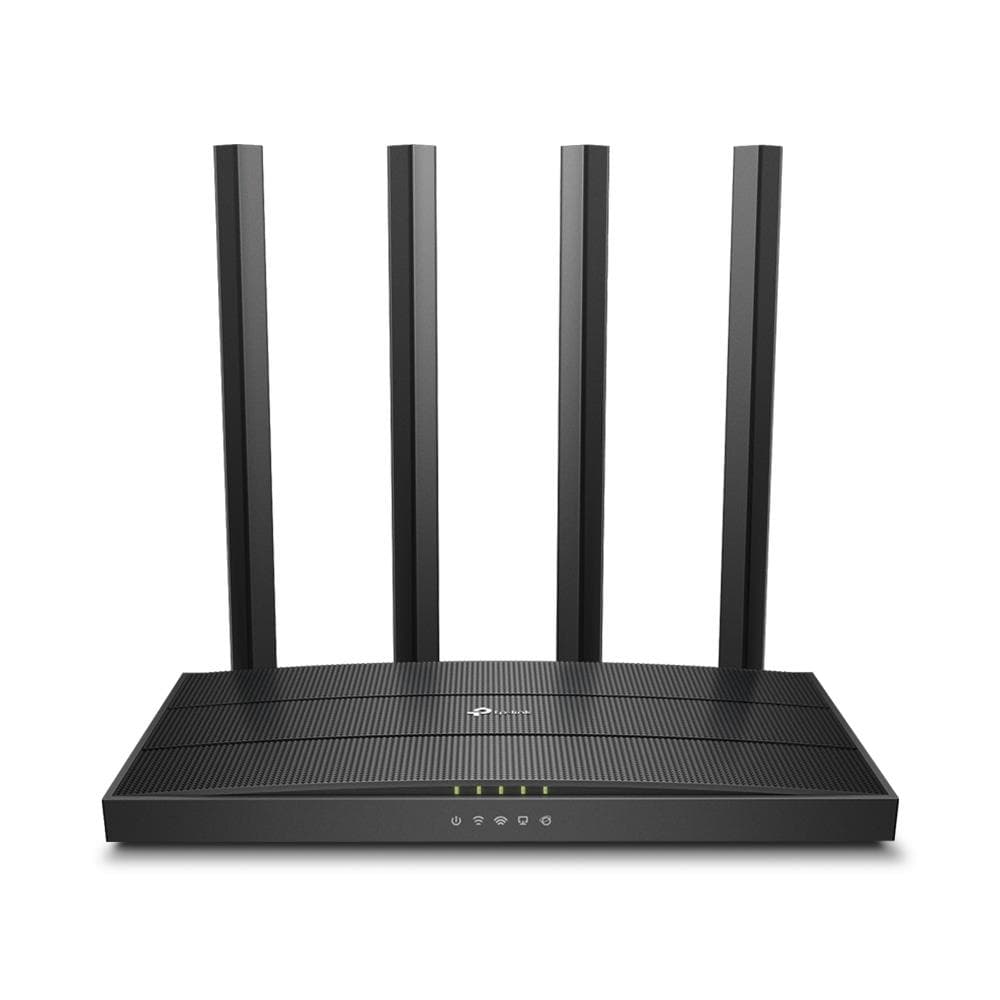

TP-Link Archer C80 Wi-Fi 5 router AC1900, 3 × 3 MIMO, 4 × 1G LAN
TP-LINK

TP-Link Archer C80 Wi-Fi 5 router AC1900, 3 × 3 MIMO, 4 × 1G LAN

TP-Link Archer C80 is a dual-band Wi-Fi 5 router with combined speeds up to 1900 Mbit/s. 3 × 3 MIMO, MU-MIMO and four external antennas give steady coverage across a flat, while five gigabit ports take care of wired devices.

  • Wi-Fi: Wi-Fi 5 (802.11ac Wave2), up to 1900 Mbit/s combined, up to 1300 Mbit/s on 5 GHz
  • Bands: 2.4 GHz and 5 GHz, Smart Connect
  • Ports: 1 × gigabit WAN + 4 × gigabit LAN (RJ-45)
  • Antennas: 4 fixed external antennas, 3 × 3 MIMO, MU-MIMO, beamforming
  • Management: web interface and Tether app, parental controls, guest network, SPI firewall
  • Other: 12 V adapter included, power switch, wall mountable, black

Description

Three streams for a faster link

3 × 3 MIMO means the router sends and receives data on three streams at once; three-stream devices, such as some Mac computers, benefit the most. Smart Connect moves each device to the less busy band, and Airtime Fairness stops older devices from slowing the whole network down.

Who this router is for

Flats or smaller houses with many Wi-Fi 5 devices that need a dependable router without extras. Also families who want to set time limits for the children and give guests a separate network.

Specifications

General

BrandTP-LINK
Product typeTabletop router
Model nameArcher C80
Product colourBlack
FirewallYes
DHCP clientYes
DHCP serverYes
Guest accessYes
Wall mountableYes
Dynamic DNS (DDNS)Yes
WAN connection typeRJ-45
Quick installation guideYes
Access Control List (ACL)Yes
Universal Plug and Play (UPnP)Yes
Stateful Packet Inspection (SPI)Yes
Operating relative humidity (H-H)10 - 90
EAN6935364088873

Memory

Memory card slot(s)No

Storage

Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

USB portNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10/100/1000
Ethernet LAN interface typeGigabit Ethernet
DC-in jackYes
Ethernet WANYes
SIM card slotNo
Port forwardingYes

Connectivity

Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)1300 Mbit/s
Antenna designExternal
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Security algorithms128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK
Antennas quantity4
Detachable antenna(s)No
WLAN data transfer rate (first band)1300

Software & security

Mac operating systems supportedmacOS
Linux operating systems supportedYes
Windows operating systems supportedWindows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64/Windows 7/Windows 7 Ente/Windows 7 Enterprise

Keyboard & controls

On/off switchYes
Reset buttonYes
WPS push buttonYes

Battery & power

AC adapter includedYes
Output voltage12 V
Power source typeDC
Transmit powerCE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz), FCC:<30dBm(2.4 GHz & 5 GHz)

Performance & capacities

Operating temperature (T-T)0 – 40 °C
MAC address filteringYes

Features

Cables includedAC/LAN (RJ-45)
LED indicatorsLAN, Power, Status, WLAN, WPS
DMZ supportYes
Browser supportedInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Mac compatibilityYes
Cabling technology10/100/1000Base-T(X)

Questions & answers

Does the router have a USB port?

No. Archer C80 has no USB port or memory card slot, so it cannot share a drive or printer over the network.

Can the router be mounted on a wall?

Yes, according to the manufacturer Archer C80 is wall mountable.

Does it work with mobile internet?

No, there is no SIM slot. Internet connects through the RJ-45 WAN port from a modem or wall socket.
