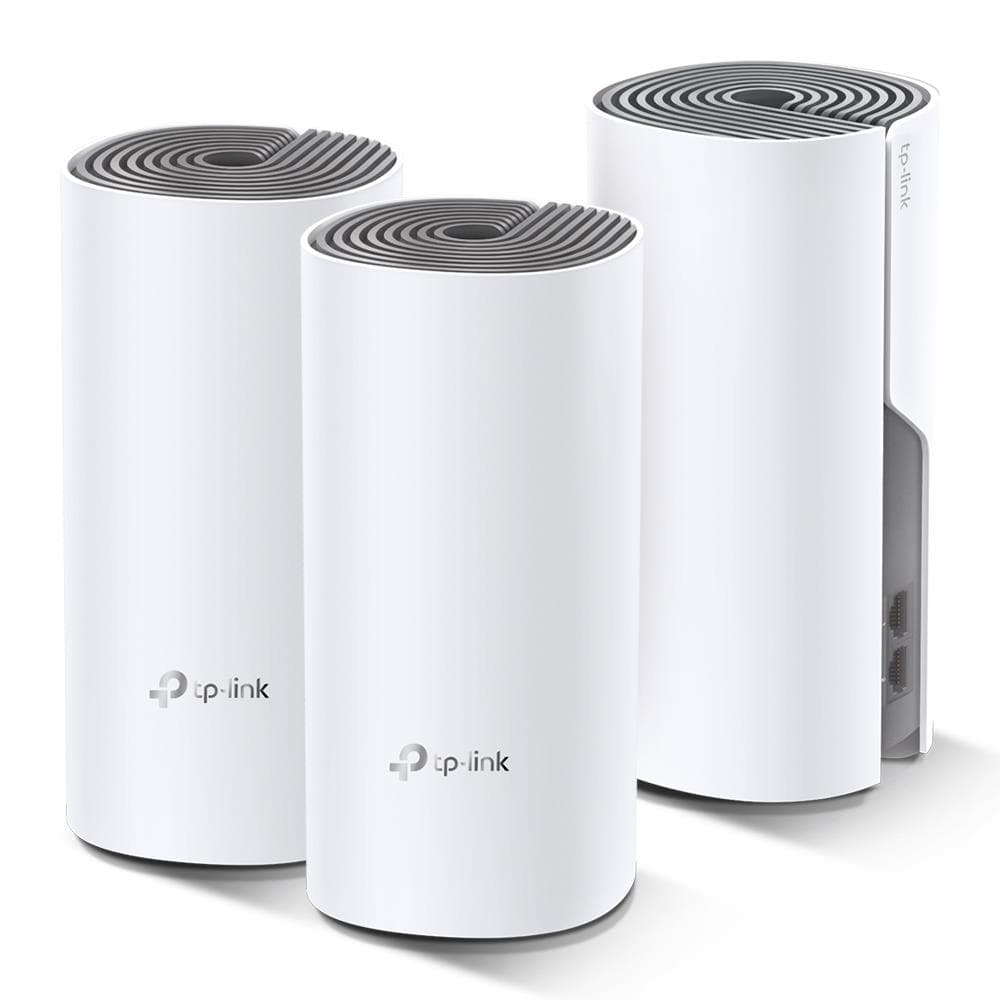

TP-Link Deco E4 mesh Wi-Fi system, 3-pack, Wi-Fi 5 AC1200, 1167 Mbit/s
TP-LINK

TP-Link Deco E4 mesh Wi-Fi system, 3-pack, Wi-Fi 5 AC1200, 1167 Mbit/s

TP-Link Deco E4 is a three-unit mesh Wi-Fi system that builds one shared network across the whole home. The units work under a single network name, and your phone or laptop moves to the nearest Deco on its own as you walk from room to room.

  • Wi-Fi: Wi-Fi 5 (802.11ac) AC1200, up to 1167 Mbit/s combined
  • Bands: 2.4 GHz up to 300 Mbit/s and 5 GHz up to 867 Mbit/s
  • Ports: 2 × RJ-45 Ethernet ports on each unit
  • Mesh: 3 units in the box, 2 internal antennas, beamforming
  • Management: Deco app, guest network, parental controls, QoS
  • Power: 9 V adapter for each unit, 90.7 × 90.7 × 190 mm

Description

Three units, one network without dropouts

A mesh system has no separate router and extenders, just three equal Deco units sharing one network name. They link to each other wirelessly, and you can also connect them with a cable for a faster link between units. According to the manufacturer, Deco E4 works in router or access point mode and is compatible with other Deco models.

Who this mesh Wi-Fi system is for

Multi-storey houses or long apartments where a single router cannot reach every room. The manufacturer rates the system for up to 100 devices, so it also suits families with plenty of phones, TVs and smart home gadgets. Setup is guided step by step in the phone app.

Specifications

General

BrandTP-LINK
Product typeMesh system
Model nameAC1200 Whole Home Mesh Wi-Fi System, 3-Pack
Product colourWhite, Grey
Static IPYes
Dynamic IPYes
BeamFormingYes
DHCP clientYes
DHCP serverYes
Guest accessYes
Parental controlYes
Dynamic DNS (DDNS)Yes
Sustainability complianceYes
Operating relative humidity (H-H)10 - 90
EAN6935364086794

Display

Number of units included3

Storage

Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Ethernet LAN (RJ-45) ports2
DC-in jackYes
Ethernet cableYes
Port forwardingYes

Connectivity

Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)1167 Mbit/s
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Security algorithmsWPA2-PSK/WPA-PSK
Antenna typeInternal
Antennas quantity2
Number of guest networks (5 GHz)1
Number of guest networks (2.4 GHz)1
WLAN data transfer rate (first band)300
WLAN data transfer rate (second band)867

Software & security

Firewall securitySPI Firewall

Keyboard & controls

Reset buttonYes

Battery & power

AC adapter includedYes
AC input voltage100 – 240 V
AC input frequency50 – 60 Hz
AC adapter input current0.3
AC adapter output current0.85
AC adapter output voltage9

Performance & capacities

Operating temperature (T-T)0 – 40 °C

Features

LED indicatorsLAN, WLAN
Quality of Service (QoS) supportYes

Dimensions & weight

Width90.7 mm
Depth90.7 mm
Height190 mm

Questions & answers

Can the system be expanded later?

Yes. According to the manufacturer, Deco E4 works with every other Deco model, so a new unit can be added to the network at any time.

How large an area do three units cover?

For the 3-pack the manufacturer quotes up to 4000 square feet. Real coverage depends on walls, floors and where the units are placed.

What is in the box?

Three Deco E4 units, their power adapters and an Ethernet cable.
