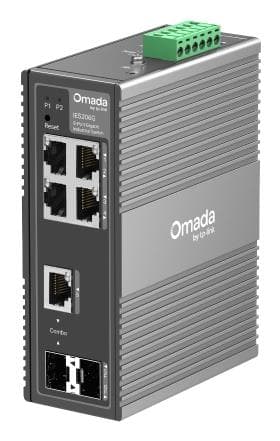

TP-Link Omada IES206G industrial network switch 6 × 1G, SFP + combo, DIN

Name: TP-Link Omada IES206G industrial network switch 6 × 1G, SFP + combo, DIN
Brand: TP-LINK
SKU: ELKO-1445891
Price: 183.99 EUR
Availability: InStock

The TP-Link Omada IES206G is an industrial managed network switch with six gigabit ports: four RJ-45, one combo RJ-45/SFP and one SFP slot. It operates from −40 to 75 °C, mounts on a DIN rail or wall and can be managed from the Omada cloud.

Ports: 4 × RJ-45 10/100/1000 Mbps, 1 × combo RJ-45/SFP, 1 × SFP
Management: managed, Omada cloud management via web or app, VLAN, QoS, STP/RSTP, IGMP snooping, port mirroring
Environment: −40…75 °C, 6 kV lightning protection, IP40 aluminium housing, fanless
Power: DC 9–60 V, two power inputs (1+1 redundancy)
Mounting: DIN rail or wall, 129 × 95 × 45 mm
Performance: 12 Gbps switching capacity, 8000-entry MAC table

Description

Industrial build for harsh conditions

The IP40 aluminium housing and fanless cooling mean there are no moving parts inside for dust or cold to damage. An operating range of −40 to 75 °C lets you install the switch in an unheated cabinet, a factory hall or an outdoor enclosure. 6 kV lightning protection and two separate power inputs keep the network running even if one power source fails. The SFP slots allow a fibre link to a distant building or mast.

Who this network switch is for

Factories, warehouses and building-systems installers who need a managed network inside an automation cabinet; sites where equipment sits in an unheated room or outdoor enclosure; and Omada users who want to add an industrial switch to the same cloud management.

Specifications

General

Brand	TP-LINK
Product colour	Black
Fanless	Yes
Jumbo frames	15000
Cloud-managed	Yes
IGMP snooping	Yes
Wall mountable	Yes
Forwarding rate	8.93
Auto-negotiation	Yes
Link aggregation	Yes
DIN rail mounting	Yes
MAC address table	8000
Store-and-forward	Yes
Web-based management	Yes
Spanning tree protocol	Yes
SFP module slots quantity	1
Operating relative humidity (H-H)	5 - 95
EAN	1210002602075

Storage

Switching capacity	12
Storage temperature (T-T)	-40 - 85
Storage relative humidity (H-H)	5 - 95

Ports

Power over Ethernet (PoE)	No
Port mirroring	Yes
Combo SFP ports quantity	1
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	4

Connectivity

Networking standards	IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch type	Managed

Battery & power

Power source	DC
DC input voltage	9 - 60
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 – 75 °C

Features

10G support	No
DHCP features	DHCP client
Auto MDI/MDI-X	Yes
Multicast support	Yes
Flow control support	Yes
Jumbo frames support	Yes
Quality of Service (QoS) support	Yes

Dimensions & weight

Width	129 mm
Depth	95 mm
Height	45 mm

Questions & answers

Does it have PoE?

No, the IES206G ports carry data only. If cameras or access points need power over the same cable, a PoE model is required.

Does it mount on a DIN rail?

Yes, the housing mounts on a DIN rail or a wall. At 129 × 95 × 45 mm the switch fits into a standard automation cabinet.

Can it be managed from the Omada cloud?

Yes, the switch supports Omada cloud management on the web or in the Omada app. A local web interface is also available for setting up VLANs, QoS and STP/RSTP.
