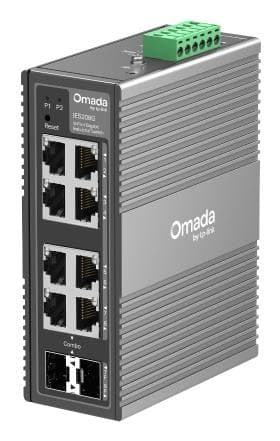

TP-Link Omada IES208G industrial network switch 8 × 1G, 2 × combo SFP, DIN
TP-LINK

TP-Link Omada IES208G industrial network switch 8 × 1G, 2 × combo SFP, DIN

The TP-Link Omada IES208G is an industrial 8-port gigabit managed network switch for DIN rail or wall mounting, with six RJ-45 ports and two combo SFP/RJ-45 ports. Its dual 9.6–60 V DC power inputs keep the network running even if one supply fails.

  • Ports: 6 × RJ-45 10/100/1000 Mbps + 2 × combo SFP/RJ-45
  • Management: managed, Omada cloud via web or app, VLAN, QoS, STP/RSTP, IGMP snooping
  • PoE: no
  • Environment: −40 to 75 °C, 6 kV lightning protection, IP40 aluminium housing
  • Mounting: DIN rail or wall, 129 × 95 × 45 mm
  • Power: 9.6–60 V DC, 1 + 1 redundant power input

Description

Reliability that does not hang on one power supply

The two power inputs take separate supplies, and if one fails the switch keeps running on the other. An operating range of −40 to 75 °C and 6 kV lightning protection allow it to go into an unheated cabinet or an outdoor site. STP/RSTP prevents network loops and lets you build a network with backup links, all managed through the Omada cloud.

Who this industrial network switch is for

Industrial automation and factories where equipment sits on a DIN rail in a control cabinet; transport, energy or water utility sites where the network must work through frost and heat; and integrators who want to manage industrial switches from the same Omada cloud as the rest of the network.

Specifications

General

BrandTP-LINK
Model nameIES208G
SeriesOmada
Jumbo frames15000
Cloud-managedYes
IGMP snoopingYes
Wall mountableYes
Forwarding rate11.9
Auto-negotiationYes
Link aggregationYes
DIN rail mountingYes
MAC address table8000
Web-based managementYes
Spanning tree protocolYes
Broadcast storm controlYes
EAN1210002602099

Storage

Switching capacity16

Ports

Power over Ethernet (PoE)No
Port mirroringYes
Static port securityYes
Combo SFP ports quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity6

Connectivity

Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeManaged

Battery & power

Power sourceDC
DC input voltage9.6 - 60
Redundant power supply (RPS) supportYes

Features

10G supportNo
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width129 mm
Depth95 mm
Height45 mm

Questions & answers

Does it provide PoE power?

No, the IES208G has no PoE. If cameras or access points need power over the cable, a PoE model from the same series or a separate PoE injector will do.

Is a power supply included?

The manufacturer does not specify. The switch needs a 9.6–60 V DC supply, and its two inputs can be used for backup power.

What do the combo SFP/RJ-45 ports offer?

Each of the two ports works either with an SFP module over fibre or with a regular RJ-45 network cable, so a distant device or building can be linked by fibre.
