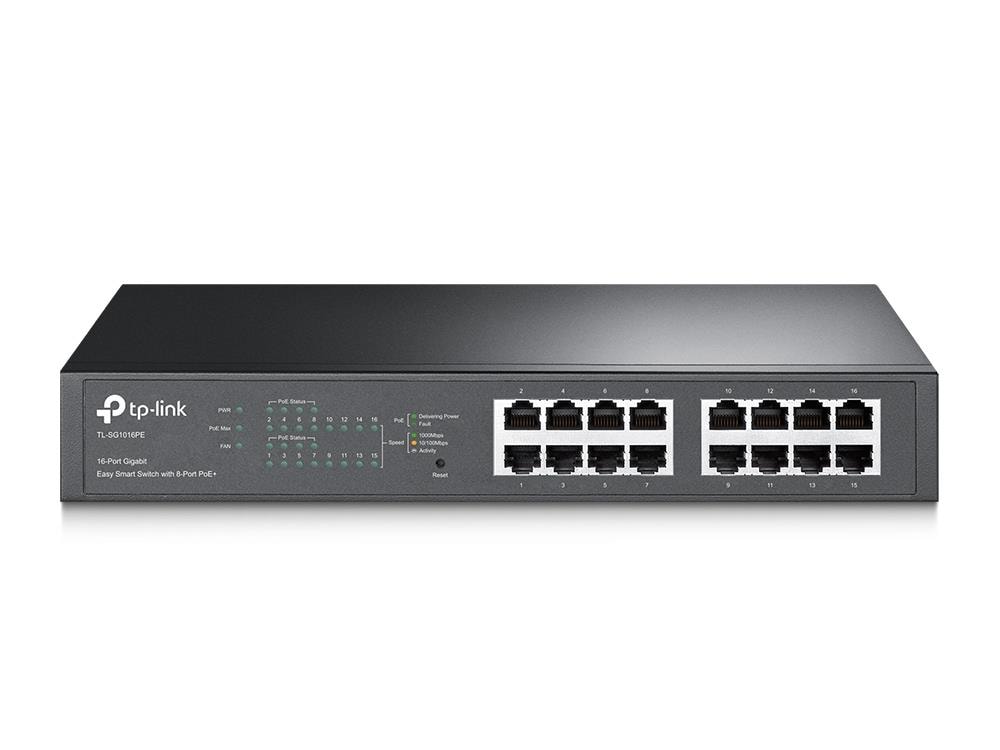

TP-Link TL-SG1016PE network switch 16 × 1G, 8 × PoE+ 110 W, Easy Smart
TP-LINK

TP-Link TL-SG1016PE network switch 16 × 1G, 8 × PoE+ 110 W, Easy Smart

The TP-Link TL-SG1016PE is a 16-port gigabit Easy Smart network switch whose eight PoE+ ports power access points, IP cameras and IP phones. The total PoE budget is 110 W, VLANs and QoS are configured through a web interface, and the housing mounts in a rack.

  • Ports: 16 × RJ-45 10/100/1000 Mbit/s, 8 of them PoE+
  • PoE: 110 W total, up to 30 W per port, IEEE 802.3af/at
  • Performance: 32 Gbit/s switching capacity, 8000-entry MAC table, 10 KB jumbo frames
  • Management: L2 Easy Smart, 802.1Q VLAN, QoS with 4 queues, IGMP snooping, port mirroring
  • Installation: 1U rack or desktop, metal housing, 294 × 180 × 44 mm
  • Power: 100–240 V, 1 fan

Description

30 W per port for more demanding devices

The PoE+ standard IEEE 802.3at delivers up to 30 W on each port, enough for higher-draw access points and cameras. The eight PoE+ ports share 110 W in total. The other eight gigabit ports are left for computers, printers and the router, and VLANs let you keep cameras or guest Wi-Fi apart from work computers.

Who this network switch is for

Small businesses or offices where several Wi-Fi access points, IP cameras and IP phones draw power from one device and the network needs splitting into VLANs. At 1U high the housing fits a server cabinet, but it also works on a shelf.

Specifications

General

BrandTP-LINK
Form factor1U
Model name16-Port Gigabit Easy Smart Switch with 8-Port PoE+
Product colourBlack
Housing materialMetal
StackableNo
User guideYes
Resource CDYes
Jumbo frames10000
IGMP snoopingYes
Rack mountingYes
Number of fans1
Rack mount kitYes
Forwarding rate23.8
Number of VLANs4000
Auto-negotiationYes
Link aggregationYes
Number of queues4
MAC address table8000
Store-and-forwardYes
Packet buffer memory4.1
Web-based managementYes
Broadcast storm controlYes
Sustainability complianceYes
Operating relative humidity (H-H)10 - 90
EAN6935364098865

Storage

Switching capacity32
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Port mirroringYes
Power connectorAC-in jack
Virtual LAN featuresPort-based VLAN/Tagged VLAN
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Total Power over Ethernet (PoE) budget110
Gigabit Ethernet (copper) ports quantity16
Power over Ethernet (PoE) power per port30
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity16
Power over Ethernet plus (PoE+) ports quantity8

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Software & security

Compatible operating systemsWindows

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (max)124.4 W
AC input voltage100 – 240 V
AC input frequency50/60
Power sourceAC/PoE
Maximum cable length100
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C

Features

Cables includedAC
LED indicatorsYes
10G supportNo
Package typeBox
VLAN supportYes
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat4/Cat5/Cat5e/Cat6
Quality of Service (QoS) supportYes

Dimensions & weight

Width294 mm
Depth180 mm
Height44 mm

Questions & answers

How many devices can it power?

There are 8 PoE+ ports, up to 30 W on one port and 110 W in total. With all eight in use that averages about 13.7 W per port, so check your devices' data sheets for their consumption.

Is it a managed switch?

Yes, it is an Easy Smart L2 switch with a web interface and utility. It supports port-based and 802.1Q VLANs, QoS, IGMP snooping, port mirroring, link aggregation and broadcast storm control.

Can it be rack-mounted?

Yes, the housing is 1U high and rack brackets are included.
