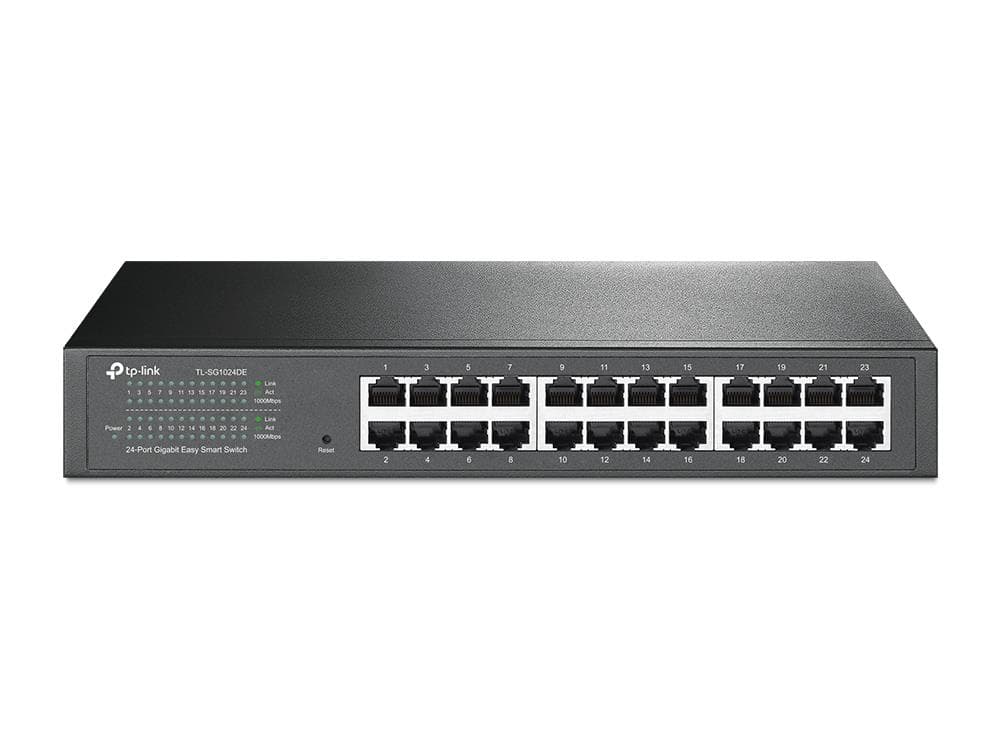

TP-Link TL-SG1024DE network switch 24 × 1G, Easy Smart, VLAN, rackmount
TP-LINK

TP-Link TL-SG1024DE network switch 24 × 1G, Easy Smart, VLAN, rackmount

The TP-Link TL-SG1024DE is a 24-port gigabit Easy Smart network switch for small businesses that have outgrown an unmanaged switch. VLANs, QoS and port mirroring are set up through a web interface, and the housing mounts in a rack (1U) or sits on a desk.

  • Ports: 24 × RJ-45 10/100/1000 Mbit/s
  • Performance: 48 Gbit/s, 8000-entry MAC table, 9216-byte jumbo frames
  • Management: L2 Easy Smart, web interface and utility, up to 32 VLANs
  • Traffic: QoS with 4 queues, IGMP snooping, link aggregation, rate limiting
  • Diagnostics: port mirroring, loop prevention, cable diagnostics
  • Installation and power: 1U rack or desktop, 294 × 180 × 44 mm, 100–240 V

Description

VLANs and QoS that keep calls and video smooth

Port-based and 802.1Q VLANs split the network into separate segments, for example for guests, cameras and accounting. QoS based on port or 802.1p priority moves voice and video ahead of other traffic. Port mirroring, loop prevention and cable diagnostics help locate a fault without extra equipment.

Who this network switch is for

Small and medium businesses with several workstations, printers and a server where the network needs to be segmented. It also suits IT staff who want a web-managed L2 switch that fits a server cabinet, and home lab owners learning how to configure VLANs.

Specifications

General

BrandTP-LINK
Form factor1U
Product colourBlack
User guideYes
Jumbo frames9216
IGMP snoopingYes
Rack mountingYes
Rate limitingYes
Rack mount kitYes
Forwarding rate35.7
Number of VLANs32
Auto-negotiationYes
Link aggregationYes
Number of queues4
MAC address table8000
Packet buffer memory0.512
Web-based managementYes
Broadcast storm controlYes
Operating relative humidity (H-H)10 - 90
EAN6935364021245

Storage

Switching capacity48
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Port mirroringYes
Virtual LAN featuresPort-based VLAN/Tagged VLAN
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet (copper) ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Software & security

Compatible operating systemsWindows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux

Keyboard & controls

Switch typeManaged
Switch layerL2

Battery & power

Power consumption (max)14.86 W
AC input voltage100 – 240 V
AC input frequency50 – 60 Hz
Power sourceAC
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation114.37

Features

Cables includedAC
LED indicatorsYes
10G supportNo
Package typeBox
VLAN supportYes
Auto MDI/MDI-XYes
Loop protectionYes
Flow control supportYes
Jumbo frames supportYes
Cable types supportedCat3/Cat5/Cat6
Quality of Service (QoS) supportYes

Dimensions & weight

Width294 mm
Depth180 mm
Height44 mm

Questions & answers

How is Easy Smart different from an unmanaged switch?

The TL-SG1024DE also works as soon as it is plugged in, but the web interface or utility lets you configure up to 32 VLANs, QoS, IGMP snooping and link aggregation on top.

Can it be rack-mounted?

Yes. The housing is 1U high and rack brackets are included, and the switch can also stand on a desk.

Which operating systems does management work with?

The manufacturer lists Windows 98SE, NT, 2000, XP, Vista, Windows 7 and 8, Mac OS, NetWare, UNIX and Linux.
