TP-Link TL-SL1226P network switch 24 × 100M PoE+ / 2 × 1G, 250 W PoE

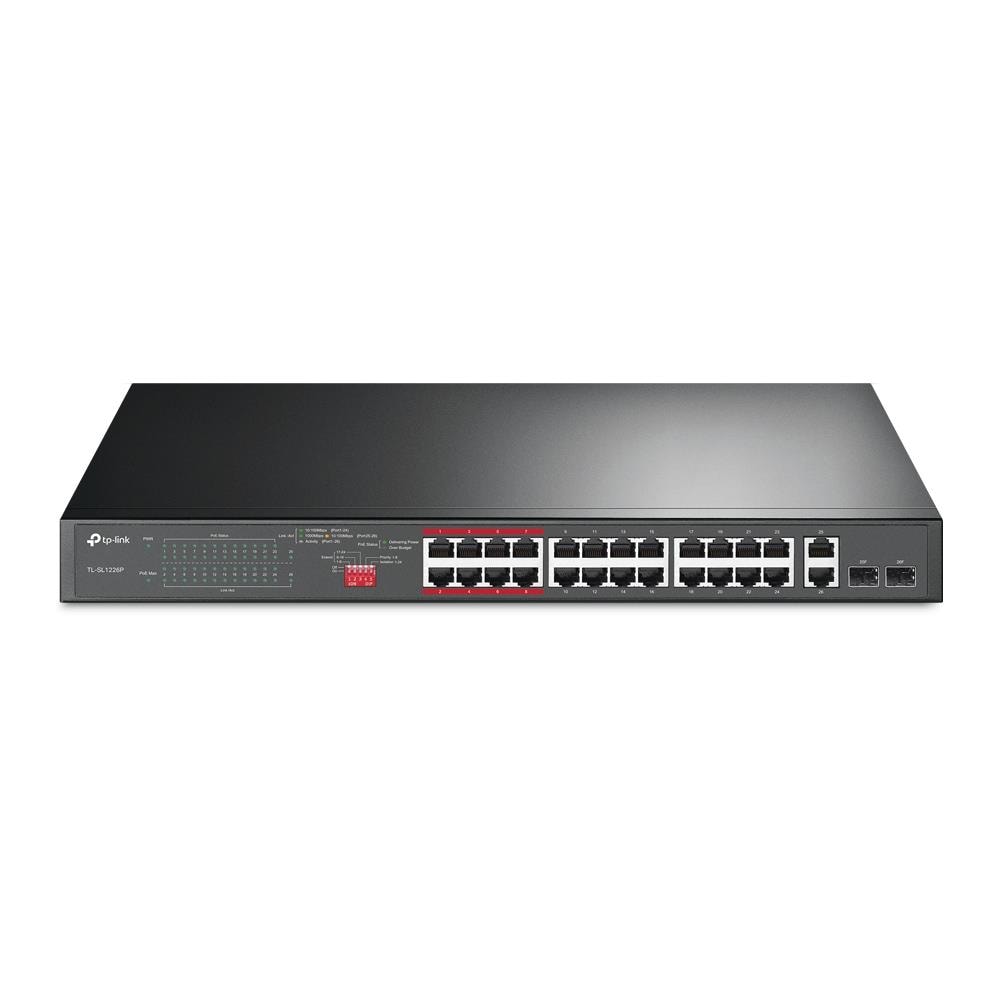

The TP-Link TL-SL1226P is an unmanaged 1U rack switch with 24 PoE+ ports, built above all for video surveillance. All 24 ports supply up to 30 W from a 250 W total budget, and in extend mode power and data reach up to 250 m.

  • Ports: 24 × RJ-45 10/100 Mbit/s PoE+, 2 × gigabit RJ-45, 2 × gigabit SFP combo
  • PoE: IEEE 802.3af/at, up to 30 W per port, 250 W in total
  • Performance: 8.8 Gbit/s switching capacity, 6.54 Mpps forwarding rate, 8000-entry MAC table, jumbo frames
  • Management: unmanaged; extend mode up to 250 m, priority mode for ports 1–8, port isolation
  • Housing and power: 1U, 440 × 180 × 44 mm, rack mount kit included, 2 fans; internal 100–240 V power supply

Description

Distant cameras, smooth video

In extend mode the switch carries power and data up to 250 m, so a camera in the yard or car park needs no device in between. Priority mode favours ports 1–8 so the most important cameras keep an uninterrupted picture, and isolation mode separates ports 1–24 from one another. The gigabit and SFP ports carry all the video to the recorder.

Who this network switch is for

Video surveillance in a warehouse, retail space, school or dormitory, and offices with up to 24 PoE devices: cameras, access points and IP phones. The switch fits a 19″ server rack and needs no configuration.

Specifications

General

BrandTP-LINK
Form factor1U
Model name24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Product colourGrey
Jumbo frames10000
Rack mountingYes
Number of fans2
Rack mount kitYes
Forwarding rate6.54
Auto-negotiationYes
MAC address table8000
Quick start guideYes
Store-and-forwardYes
Packet buffer memory4.1
Traffic classificationYes
Operating relative humidity (H-H)10 - 90
EAN6935364089443

Storage

Switching capacity8.8
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)Yes
Combo SFP ports quantity2
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Fast Ethernet (copper) ports quantity24
Total Power over Ethernet (PoE) budget250
Gigabit Ethernet (copper) ports quantity2
Power over Ethernet (PoE) power per port30
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity26
Power over Ethernet plus (PoE+) ports quantity24

Connectivity

Networking standardsIEEE 802.3af/IEEE 802.3at/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

Power consumption (max)281 W
AC input voltage100 – 240 V
Power sourceAC
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 50 °C
Heat dissipation1002.54

Features

LED indicatorsYes
10G supportNo
Auto MDI/MDI-XYes
Jumbo frames supportYes

Dimensions & weight

Width440 mm
Depth180 mm
Height44 mm

Questions & answers

How many cameras can it power?

All 24 ports are PoE+ with up to 30 W each, and the total budget is 250 W. If a camera draws up to 10 W, all 24 can run at once.

Can it go into a server rack?

Yes, it is a 1U switch and the rack mount kit is in the box.

Are the ports gigabit?

The PoE ports run at 10/100 Mbit/s, which is enough for a camera video stream. The 2 RJ-45 ports and 2 SFP combo ports are gigabit and connect the recorder or router.
