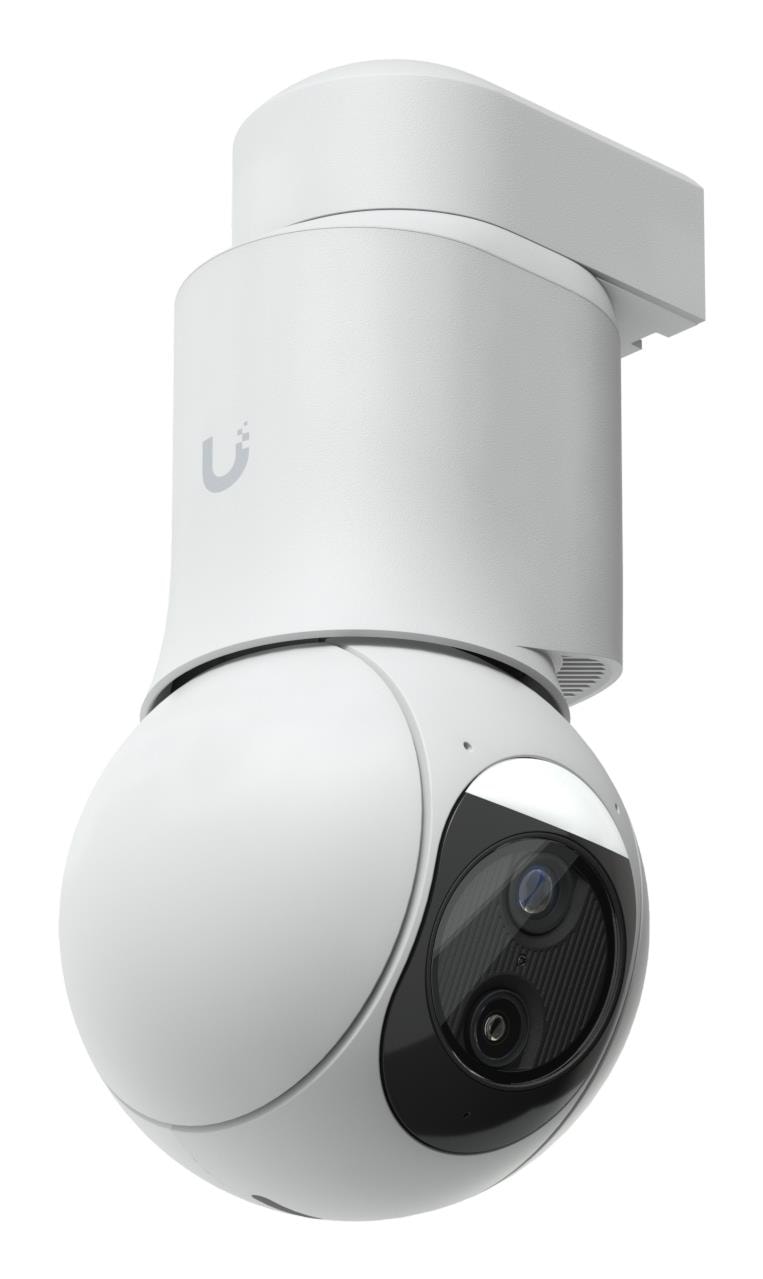

Ubiquiti G6 PTZ UVC-G6-PTZ-W IP camera 4K 8 MP, PTZ, IR 30 m, IP66, PoE

The Ubiquiti G6 PTZ (UVC-G6-PTZ-W) is a pan-tilt 8-megapixel IP camera for indoor and outdoor use. The manufacturer gives it 10× hybrid zoom and fast PTZ control for following moving subjects, and in the dark it sees up to 30 metres in infrared. Power and network arrive over a single PoE cable.

  • Resolution: 8 MP, 3864 × 2160 (4K), up to 30 fps, 1/1.8″ sensor
  • Field of view and zoom: 109.9° horizontal, 56.7° vertical, 134.1° diagonal, 10× hybrid zoom
  • PTZ: 350° pan, tilt, motion tracking
  • Night vision: IR up to 30 m, IR cut filter, built-in light
  • Power: PoE, 24.5 W maximum
  • Protection: IP66, IK04, −30 to 50 °C
  • Storage and audio: microSD slot, two-way audio

Description

PTZ control that keeps a moving subject in frame

The camera pans through 350° and tilts vertically, so one unit covers an area that would otherwise need several fixed cameras. The manufacturer highlights ultra-low-latency PTZ control and motion tracking: the camera can follow a person or vehicle from one edge of the view to the other. Its position is changed remotely, with no ladder required.

4K images and 10× hybrid zoom

The 1/1.8″ sensor delivers 8-megapixel images at 3864 × 2160 and up to 30 frames per second. According to the manufacturer's description, the camera has two lenses and 10× hybrid zoom, which combines optical and digital magnification. In the wide view the field of view is 109.9° horizontally and 134.1° diagonally. Brightness, contrast, sharpness and HDR are adjustable, and 2D and 3D noise reduction are applied.

Smart detection that tells people from vehicles

The camera detects faces, people, pets and vehicles, and classifies targets as human or vehicle. Licence plate recognition is supported as well, which is useful on driveways and in car parks. Privacy masking hides a neighbour's window or any other area that must not be recorded, and a text caption can be overlaid on the image. Processing runs on an ARM Cortex-A53 processor together with what the manufacturer calls a multi-TOPS AI engine.

Night vision to 30 metres and a light of its own

In the dark, infrared LEDs light the scene up to 30 metres away. A light sensor and day/night mode switch the IR cut filter automatically, so daytime colours stay natural. The camera also has a built-in light that can illuminate a dark area with visible light. LED indicators show the camera's status.

Two-way audio and a microSD card

A built-in microphone and speaker provide two-way audio: you can hear what is happening at the camera and speak directly to a visitor, a courier or an uninvited guest. The integrated card reader takes microSD cards, so footage can also be kept on a card in the camera itself. The connection is wired, through a Fast Ethernet RJ-45 port; there is no Wi-Fi or Bluetooth.

A weatherproof housing with three mounting options

The aluminium and polycarbonate housing is rated IP66, which means protection against dust and powerful water jets. The camera operates from −30 to 50 °C and has IK04 impact resistance. It is powered over PoE with a maximum draw of 24.5 W. It is white, 203.2 mm tall, 107.2 mm in diameter and weighs 1 kg; a mounting kit and screws for ceiling, wall or pole are included.

Who this IP camera is for

Businesses that want one camera to cover a storage yard, car park or site; owners of a house with a long driveway who want to read number plates too; and surveillance installers for whom motion tracking and smart detection matter. Two-way audio lets you respond to an event straight away.

Specifications

General

BrandUBIQUITI
Form factorSpherical
Product colourWhite
Housing materialAluminium/Polycarbonate (PC)
TypeIP security camera
ManualYes
IK codeIK04
LED typeIR
Frame rate30
PTZ controlYes
Mounting kitYes
Night visionYes
WeatherproofYes
Mounting typeCeiling/Wall/Pole
Total megapixels8
Text caption overlayYes
Night vision distance30
Image quality adjustmentBrightness/Contrast/HDR/Sharpness
License plate recognitionYes
Operating relative humidity (H-H)20 - 90
Human and vehicle targets classificationYes
EAN810177161486

Display

Maximum resolution3864 x 2160

Processor

Processor modelARM Cortex-A53
Built-in processorYes

Storage

Compatible memory cardsMicroSD (TransFlash)
Built-in HDDNo

Camera

Day/night modeYes
Privacy maskingYes
Zoom capabilityYes
Number of cameras1
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, diagonal134.1
Lens viewing angle, vertical56.7
Lens viewing angle, horizontal109.9

Audio

Audio system2-way
Built-in microphoneYes
Built-in speaker(s)Yes

Ports

Card reader integratedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet

Connectivity

Wi-FiNo
BluetoothNo
Connectivity technologyWired

Keyboard & controls

Reset buttonYes

Battery & power

Power consumption (max)24.5 W
Power source typePoE
DC output voltage42.5,57

Performance & capacities

Operating temperature (T-T)0 – 30 – 50 °C
Noise reductionYes
Angle of rotation350
Noise reduction technology2D noise reduction, 3D noise reduction
Infrared (IR) cut-off filterYes

Features

International Protection (IP) codeIP66
LED indicatorsYes
Light sensorYes
Built-in lightYes
Screws includedYes
Optical sensor size1/1.8
Placement supportedIndoor & outdoor
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Pet detection/Vehicle detection

Dimensions & weight

Height203.2 mm
Diameter107.2 mm
Weight1 kg

Questions & answers

Does the camera need a separate power supply?

No, it is powered over PoE. Note that it draws up to 24.5 W, so your PoE switch or injector must be able to supply that much per port.

Can I talk through the camera?

Yes, audio is two-way: the camera has both a microphone and a speaker.

Is a memory card included?

The camera has a microSD slot, but the manufacturer does not specify whether a card is included.

Is the camera suitable for outdoor use?

Yes. It is rated IP66, operates from −30 to 50 °C and mounts on a ceiling, wall or pole.
