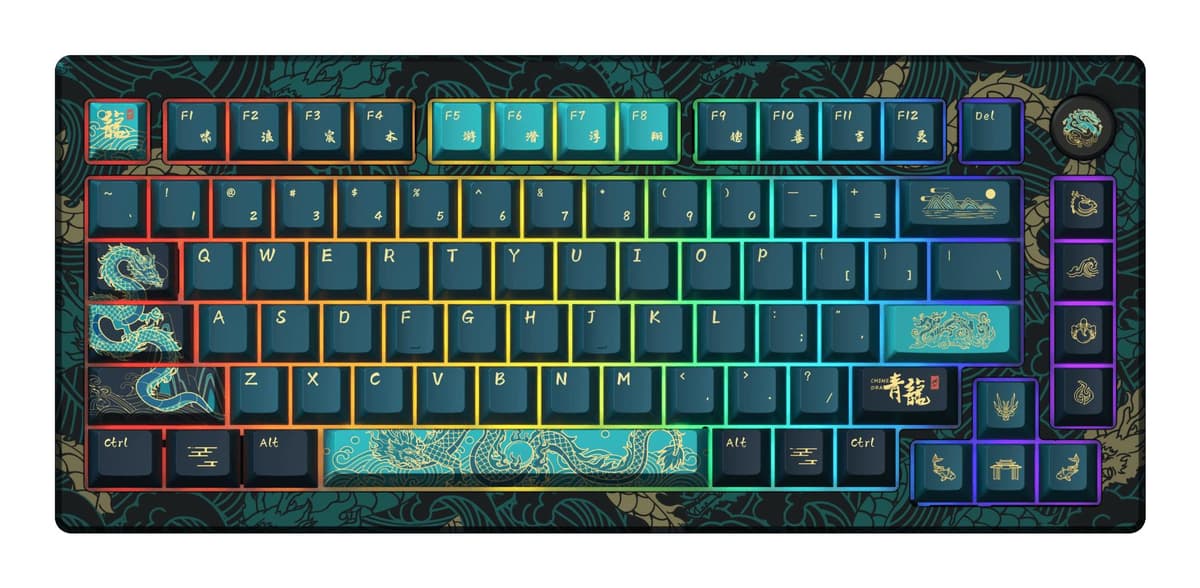

Akko MOD007V3 HE Year of Dragon gaming keyboard 75%, magnetic switches, US

The Akko MOD 007 V3 HE Year of Dragon is a wired 75% gaming keyboard with Akko Astrolink magnetic switches, an 8000 Hz polling rate and an aluminium case. The magnetic switches let you choose the actuation point of every key and use Rapid Trigger, which makes repeated presses faster than on a regular mechanical keyboard.

  • Connection: wired, detachable USB-C cable
  • Layout: US English (ANSI), QWERTY
  • Switches: Akko Astrolink magnetic, 0.1–3.4 mm actuation, 8000 Hz polling rate
  • Form factor: 75%, no numeric keypad, 333 × 141 × 33 mm, 2 kg
  • Lighting: adjustable RGB backlight, programmable rotary knob
  • Case and keycaps: anodised aluminium, Cherry profile PBT keycaps
  • In the box: keycap and switch pullers

Description

Magnetic switches with adjustable actuation

Akko Astrolink switches are magnetic: the key position is measured by a sensor rather than a mechanical contact. That is why the actuation point of each key can be set in the Akko Driver software anywhere from 0.1 to 3.4 mm. In a game a key can fire at the lightest touch, while for typing you can make it deeper to cut down on accidental presses. Rapid Trigger resets a key the moment it starts to rise, so repeat presses are quick.

8000 Hz and Snap Key for competitive play

An 8000 Hz polling rate means the keyboard reports to the computer 8000 times per second, shortening the delay between a key press and what happens in the game. Snap Key is the Akko implementation of SOCD: when two opposite direction keys are held, the most recent press wins, so you can change direction without releasing the previous key. That pays off in fast shooters.

Several actions on one key

Dynamic Keystrokes (DKS) lets you assign up to four actions to one key depending on how deep you press it and when you release it. Mod-Tap gives a key two functions, one for a tap and one for a hold. Toggle Key turns a key into a switch. The rotary knob controls volume and lighting, and it can also be programmed for other functions.

Aluminium case and a cleaner sound

The case is aluminium with a three-tone anodised finish that makes it more scratch-resistant and durable. PORON foam under the plate dampens switch noise and gives each press a cleaner feel. The stabiliser wires are demagnetised so they do not interfere with the magnetic switch sensing and long keys actuate precisely. At 2 kg, the keyboard stays firmly in place on the desk.

Year of Dragon design and PBT keycaps

The Cherry profile keycaps are dye-sublimated PBT: the legends are inside the material and do not wear off over time. The design uses a cyan colour scheme with Year of Dragon motifs, and the knob is themed as well. The cable is detachable with a USB-C connector, which makes the keyboard easy to carry, and keycap and switch pullers come in the box.

Who this gaming keyboard is for

Competitive players who value adjustable actuation, Rapid Trigger, Snap Key and an 8000 Hz polling rate; gamers who want a compact 75% keyboard that leaves more desk space for the mouse; and users who appreciate an aluminium case, PBT keycaps and the distinctive Year of Dragon design.

Specifications

General

BrandAKKO
Recommended usageGaming
Product colourMulticolour
MaterialAluminium
Device interfaceUSB
ManualYes
Hot keysYes
Polling rate8000
Physical layoutANSI
Detachable cableYes
Keycaps materialPolybutylene terephthalate (PBT)
Surface colorationImage
Keycap removal toolYes
EAN6978414650163

Ports

USB connector typeUSB Type-C

Connectivity

Connectivity technologyWired

Keyboard & controls

Numeric keypadNo
Pointing deviceNo
Keyboard styleStraight
Keyboard layoutQWERTY
Keyboard weight2000
Keyboard languageUS English
Keyboard key switchMagnetic key switch
Switch removal toolYes
Keyboard form factor75%
Keyboard dimensions (WxDxH)141 x 333 x 33
Keyboard key switch technologyAkko Astrolink Magnetic

Battery & power

Power source typeUSB

Performance & capacities

Programmable hot keysYes

Features

BacklightYes
Backlight typeRGB LED
Mouse includedNo
Backlight colourRGB
Adjustable backlightYes

Questions & answers

Which keyboard layout does it have?

The layout is US English (ANSI, QWERTY). Estonian letters such as Õ, Ä, Ö and Ü are not printed on the keys; the Estonian layout can be selected in the operating system settings.

Does the keyboard work wirelessly?

No, it is a wired keyboard. It connects and draws power through the detachable USB-C cable.

What is Rapid Trigger?

Rapid Trigger resets a key as soon as it starts to rise instead of waiting for it to pass a fixed point. That lets you press the same key again very quickly, which helps in shooters.

Which operating systems are supported?

The manufacturer does not specify supported operating systems. The keyboard connects over USB.
