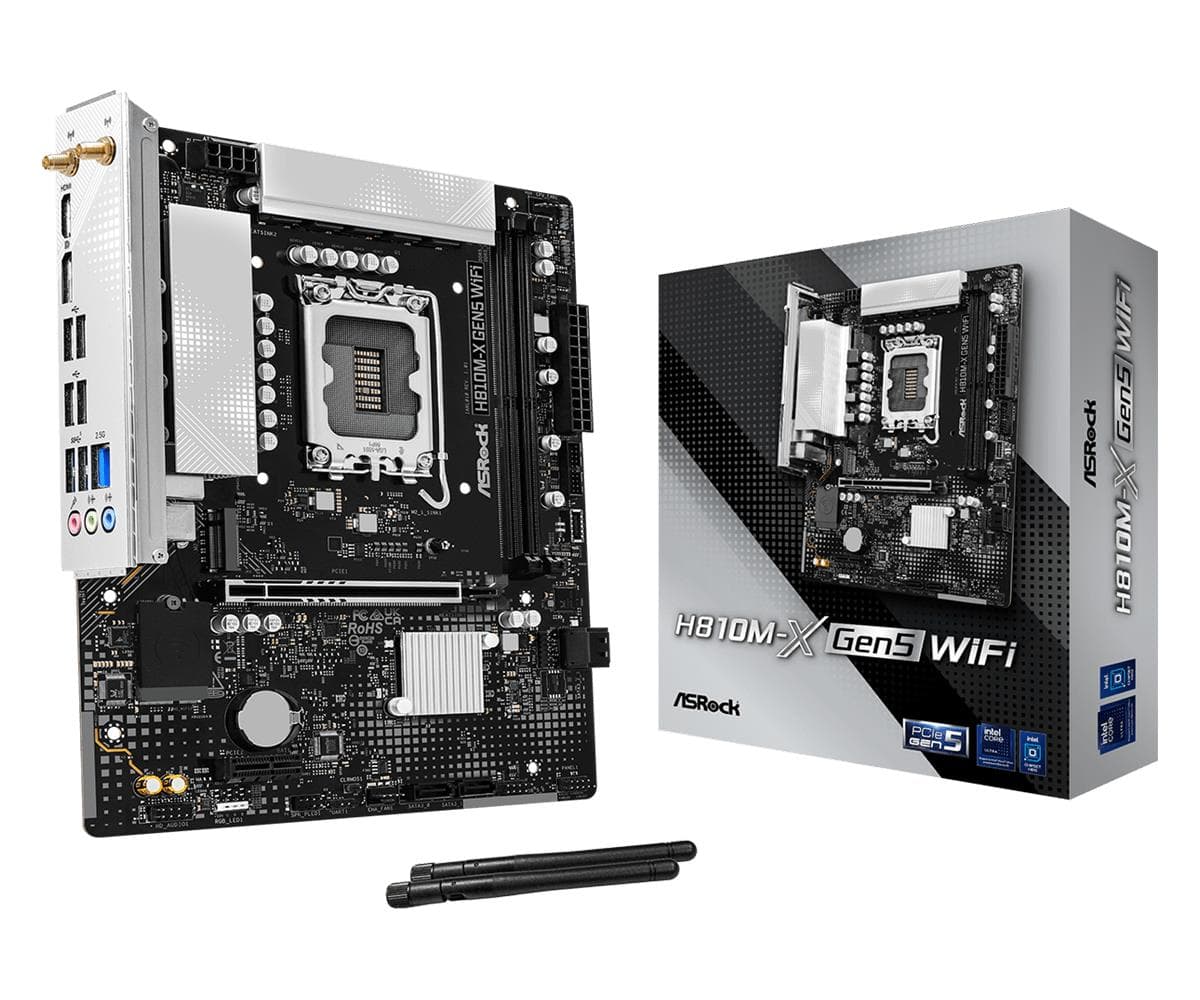

ASRock H810M-X Gen5 motherboard LGA1851 mATX DDR5, 2.5G LAN, front USB-C
ASROCK

ASRock H810M-X Gen5 motherboard LGA1851 mATX DDR5, 2.5G LAN, front USB-C

The ASRock H810M-X Gen5 is a micro-ATX motherboard on the Intel H810 chipset for Intel Core Ultra (Series 2) processors in the LGA1851 socket. Compared with the H810M-P Gen5, it adds 2.5 Gbit/s Realtek Dragon Ethernet and a header for the case front USB-C port.

  • Socket and chipset: LGA1851 (Socket V1), Intel H810
  • Form factor: micro-ATX, 244 × 193 mm
  • Memory: 2 × DDR5 DIMM, dual channel, up to 128 GB
  • Storage: M.2 PCIe 4.0 x4, 4 × SATA III
  • Expansion: PCIe 5.0 x16, PCIe 4.0 x1
  • Network and rear I/O: 2.5 Gbit/s LAN (Realtek Dragon RTL8125BG), HDMI, DisplayPort 1.4, 2 × USB-A 3.2 Gen1, 4 × USB 2.0

Description

Fast wired networking on the simplest chipset

The Realtek Dragon controller delivers up to 2.5 Gbit/s over cable, which speeds up file copies on a home or office network. The case front USB-C port gets up to 5 Gbit/s from the board. The board is only 193 mm deep, so it also fits small micro-ATX cases, and an aluminium heatsink cools the power stage. SATA cables are in the box.

Who this motherboard is for

Builders of an affordable home or office PC on the Intel Core Ultra platform, connected to the network by cable. HDMI and DisplayPort give two display outputs with a processor that has integrated graphics, and a graphics card can go into the PCIe 5.0 x16 slot later.

Specifications

General

BrandASROCK
HDCPYes
Line-inYes
BIOS typeUEFI AMI
HDCP version2.3
Component forPC
BIOS memory size256
Unbuffered memoryYes
ECC сompatibilityNon-ECC
RGB LED pin headerYes
Number of memory slots2
Motherboard form factormicro ATX
Number of M.2 (M) slots1
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
EAN4711581493827

Processor

Processor manufacturerIntel
Motherboard chipsetIntel H810
Processor socketLGA 1851 (Socket V1)
CPU fan connectorYes
Motherboard chipset familyIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Number of CPU fan connectors1

Memory

Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM

Storage

Supported storage drive interfacesSATA III, M.2

Audio

Audio chipRealtek ALC897
Microphone inYes
Audio output channels7.1
Front panel audio connectorYes

Ports

HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
TPM connectorYes
LAN controllerDragon RTL8125BG
USB 2.0 connectors1
DisplayPort version1.4
DisplayPorts quantity1
Ethernet interface type2.5 Gigabit Ethernet
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
Number of chassis fan connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2

Connectivity

Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
BluetoothYes
Bluetooth version5.3
Antenna includedYes

Software & security

Windows operating systems supportedWindows 11 x64

Features

Cables includedSATA
Supported memory typesDDR5-SDRAM

Dimensions & weight

Width244 mm
Depth193 mm
Product Net Weight1 kg

Questions & answers

How does it differ from the H810M-P Gen5?

The H810M-X Gen5 has 2.5 Gbit/s Realtek Dragon LAN and a front USB-C header. The H810M-P Gen5 uses a Realtek RTL8111H network controller.

Does the board have Wi-Fi and Bluetooth?

The supplier data are contradictory on wireless: the variant with Wi-Fi is called the H810M-X Gen5 WiFi. If you need Wi-Fi, confirm it on the ASRock product page before choosing.

Which processors does the board support?

Intel Core Ultra (Series 2) processors for the LGA1851 socket. Older LGA1700 models do not fit.
