AXAGON HMC-6G2L USB-C hub 6-in-1 10 Gbps, HDMI 4K60, RJ-45, 100 W PD
AXAGON

AXAGON HMC-6G2L USB-C hub 6-in-1 10 Gbps, HDMI 4K60, RJ-45, 100 W PD

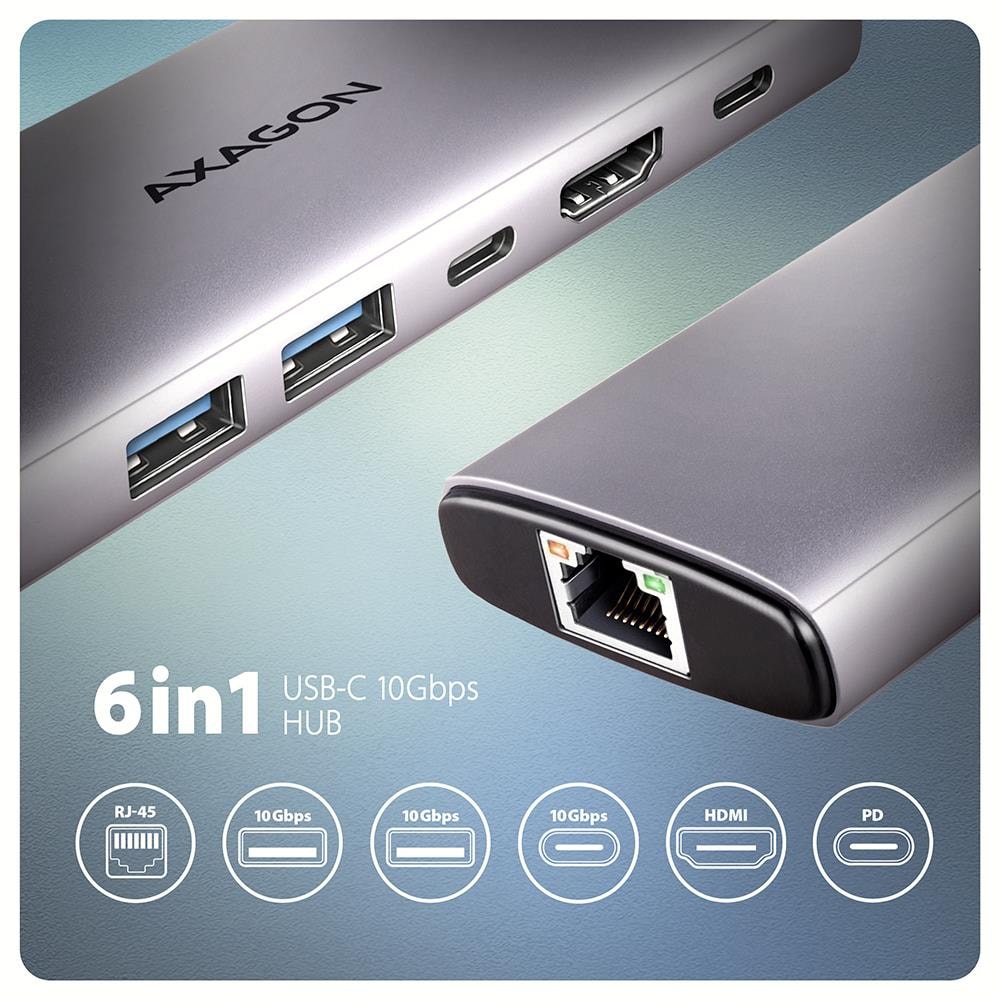

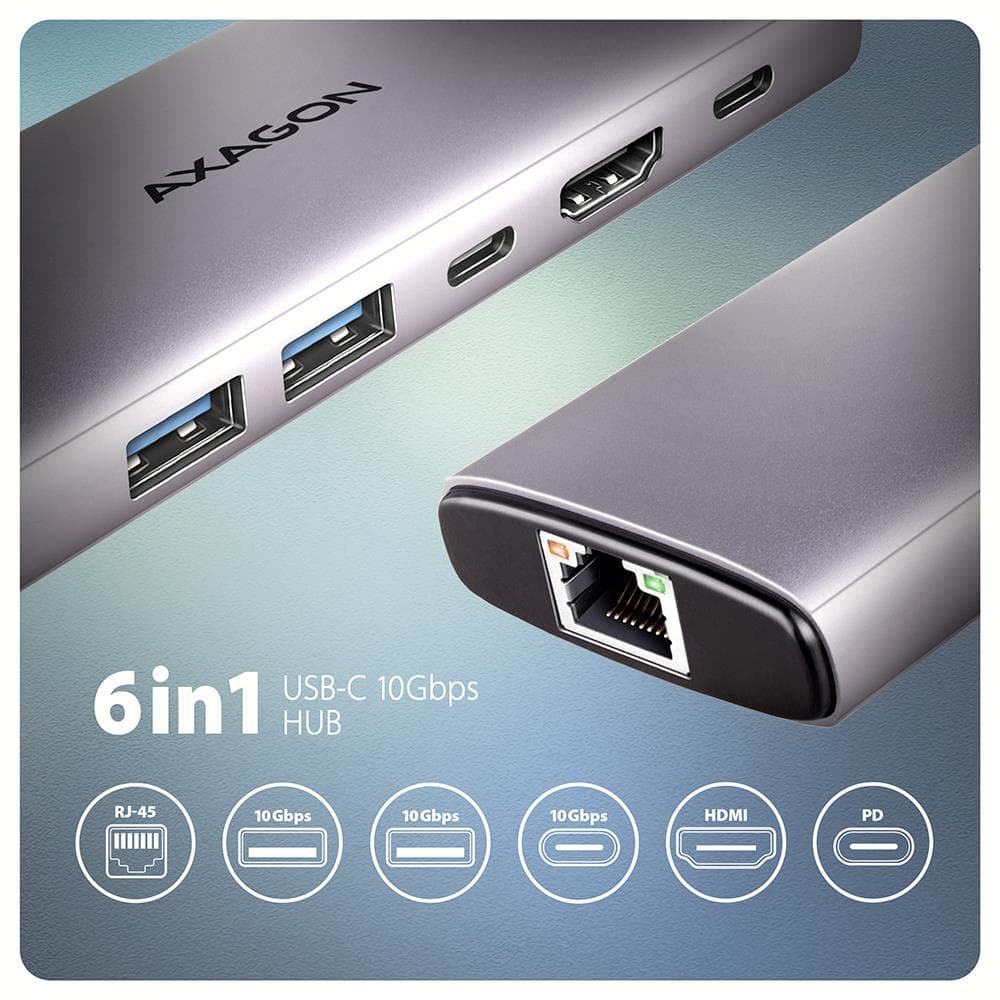

The AXAGON HMC-6G2L is a 6-in-1 USB hub that turns one USB-C port on your laptop into a small docking station: HDMI up to 4K 60 Hz, Gigabit Ethernet, three 10 Gbps USB ports and USB PD pass-through charging up to 100 W. The manufacturer lists it for Windows laptops as well as MacBook Air and MacBook Pro.

  • Host connection: USB-C, USB 3.2 Gen 2 (10 Gbps), 15 cm cable
  • Video: HDMI up to 4K 60 Hz, 2K 120 Hz, Full HD 240 Hz, HDR
  • Charging: USB-C PD 3.0 input up to 100 W
  • Ports: 2 × USB-A and 1 × USB-C 10 Gbps, Gigabit RJ-45
  • Body: aluminium, 120 × 46 × 15 mm, 79 g

Description

10 Gbps on every USB port

USB 3.2 Gen 2 gives all three data ports up to 10 Gbps, twice the speed of 5 Gbps hubs. That pays off with NVMe M.2 external drives, several of which can be connected at once. The ports also charge a phone at up to 1.5 A. The hub is compatible with USB4 and Thunderbolt 3/4 ports.

A monitor up to 240 Hz and wired networking

HDMI supports 4K at 60 Hz, 2K up to 120 Hz and Full HD up to 240 Hz, plus HDR and HDCP 2.3. For the maximum values the computer USB-C port must support DP Alt Mode (DisplayPort 1.4) or Thunderbolt 3/4. The Gigabit RJ-45 port supports Wake-on-LAN.

Who this USB hub is for

Laptop users who want to connect a monitor, network, a fast external drive and the charger with one cable. Supported systems are Windows 10 and 11, macOS, iPadOS, iOS, Linux, ChromeOS and Android, so the hub also works with an iPad or a phone.

Specifications

General

BrandAXAGON
Product colourAluminium
Housing materialAluminium
HDCPYes
ManualYes
Built-in fanNo
HDCP version1.4/2.3
Plug and PlayYes
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfacesHDMI/RJ-45/USB 3.1 (3.1 Gen 2) Type-C/USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Data transfer rate10
Warranty2 years
EAN8595247908056

Display

HD type4K Ultra HD
Maximum refresh rate240 Hz
High Dynamic Range (HDR) supportedYes
Maximum digital resolution4096 x 2160

Audio

Microphone inNo
Built-in microphoneNo
Built-in speaker(s)No

Ports

Card reader integratedNo
Combo headphone/mic portNo
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Type-C DisplayPort Alternate ModeYes
USB Power Delivery (USB PD)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000
DC-in jackNo
Power connectorUSB Type-C
USB cable length0.15
Wake-on-LAN readyYes
USB Power Delivery up to100
USB Power Delivery revision3.0

Connectivity

Connectivity technologyWired
Networking standardsIEEE 802.3ab/IEEE 802.3au

Software & security

Mobile operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid/ChromeOS
Server operating systems supportedYes
Windows operating systems supportedWindows 10/Windows 11

Battery & power

Wireless chargingNo
Output voltage20 V
Power source typeUSB
Cable length0.15 m
Output current5
Charging functionYes

Features

Cables includedUSB Type-C
LED indicatorsYes
Hot-Plug supportYes

Dimensions & weight

Width120 mm
Depth46 mm
Height15 mm
Weight79 g

Questions & answers

Will the hub charge my laptop?

Yes, if the laptop supports USB PD charging. A charger of up to 100 W plugs into the PD 3.0 input; both the laptop and the charger must support PD.

How many monitors can I connect?

One, over HDMI. Video works from a USB-C port with DP Alt Mode or from a Thunderbolt 3/4 port.

Does it work with a MacBook?

Yes, the manufacturer names MacBook Air and MacBook Pro as suitable and macOS is among the supported systems. No drivers are needed.
