AXAGON

AXAGON HMC-6GLN GLASS USB-C hub 6-in-1 5 Gbps, HDMI 4K60, RJ-45, 100 W PD

Name: AXAGON HMC-6GLN GLASS USB-C hub 6-in-1 5 Gbps, HDMI 4K60, RJ-45, 100 W PD
Brand: AXAGON
SKU: ELKO-1438764
Price: 56.99 EUR
Availability: InStock

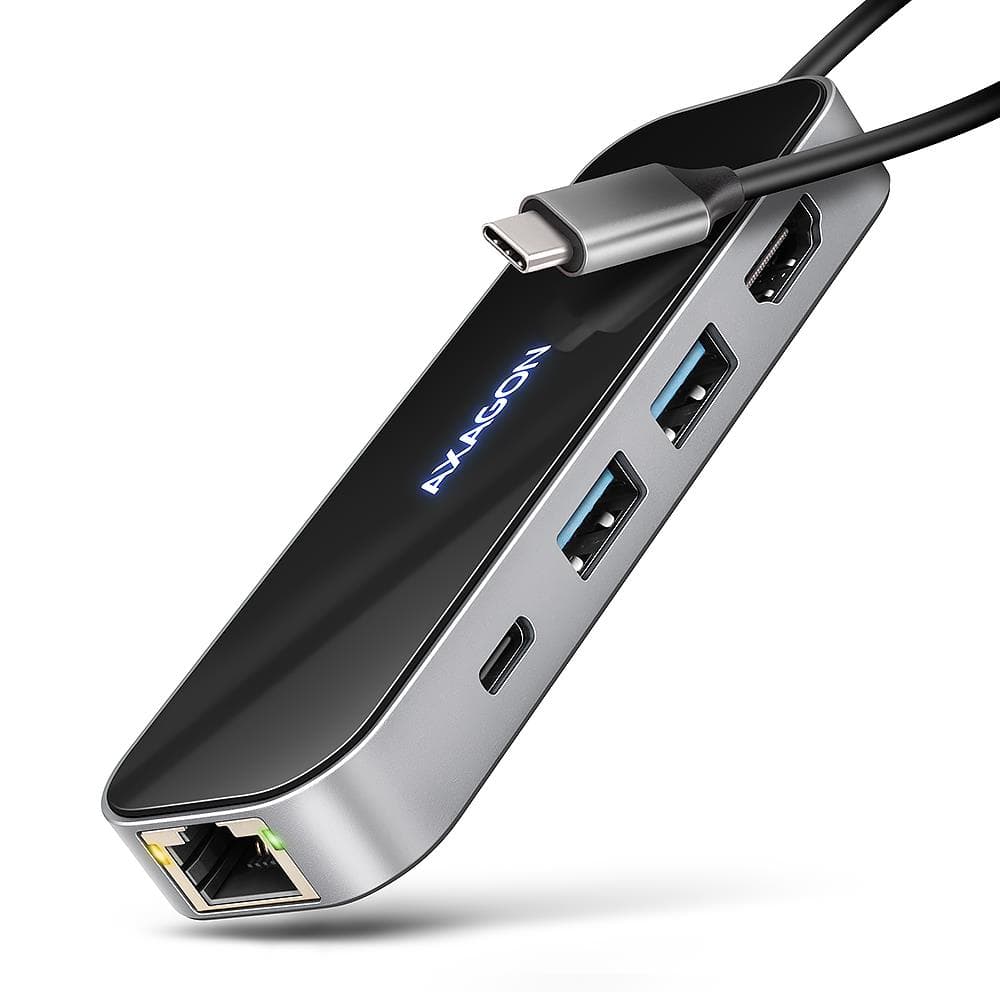

The AXAGON HMC-6GLN GLASS is a 6-in-1 USB hub with a glossy top and a backlit logo that connects to your laptop through a 20 cm USB-C cable. It offers HDMI up to 4K 60 Hz, Gigabit Ethernet, three 5 Gbps USB ports and USB PD pass-through charging up to 100 W.

Host connection: USB-C, USB 3.2 Gen 1 (5 Gbps), 20 cm cable
Video: HDMI up to 4K 60 Hz, 2K 144 Hz, Full HD 240 Hz, HDR
Charging: USB-C PD 3.0 input up to 100 W, charger not included
Ports: 2 × USB-A and 1 × USB-C 5 Gbps, Gigabit RJ-45
Body: aluminium, black, 110 × 35 × 13 mm, 58 g

Description

A monitor up to 144 Hz at 2K and 240 Hz at Full HD

HDMI shows 4K at 60 Hz, Quad HD up to 144 Hz and Full HD up to 240 Hz, with HDR and HDCP 2.2 support. For the maximum values the USB-C port must support DP Alt Mode version 1.4 or newer, or Thunderbolt 3. The manufacturer notes that on Apple devices running macOS the refresh rate is usually limited to 60 Hz.

Charging and network over one cable

A separate USB-C socket is for charging only: a USB PD 3.0 charger plugged into it supplies the laptop with up to 100 W and keeps the second USB-C port on the computer free. The Gigabit RJ-45 port supports 10/100/1000 Mbps. The USB ports handle several external drives and charge a phone at up to 1.5 A.

Who this USB hub is for

Owners of a modern laptop without USB-A sockets or a video output who also care how an accessory looks on the desk. Supported systems are Windows 10 and 11, macOS, iPadOS, iOS, Linux, ChromeOS and Android, so the hub also works with a tablet or phone.

Specifications

General

Brand	AXAGON
Product colour	Black
Housing material	Aluminium
HDCP	Yes
Manual	Yes
Built-in fan	No
HDCP version	1.4/2.2
Plug and Play	Yes
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces	HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Data transfer rate	5
Warranty	2 years
EAN	8595247908674

Display

Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
Maximum digital resolution	4096 x 2160

Audio

Microphone in	No
Built-in speaker(s)	No

Ports

Card reader integrated	No
Combo headphone/mic port	No
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10/100/1000
DC-in jack	No
USB 3.0	2
Power connector	USB Type-C
USB cable length	0.2
USB Power Delivery up to	100
USB Power Delivery revision	3.0

Connectivity

Connectivity technology	Wired

Software & security

Mobile operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Yes
Server operating systems supported	Yes
Windows operating systems supported	Yes

Battery & power

Wireless charging	No
Power source type	USB
Charging function	Yes

Features

Cables included	USB Type-C
LED indicators	Yes
Compatibility	universal
Hot-Plug support	Yes

Dimensions & weight

Width	13 mm
Depth	110 mm
Height	35 mm
Weight	58 g

Questions & answers

Will the hub charge my laptop?

Yes, if the laptop supports USB PD charging. A charger of up to 100 W plugs into the PD 3.0 input; it is not included.

Will I get 144 Hz with a MacBook?

According to the manufacturer, Apple devices running macOS are usually limited to 60 Hz. The higher refresh rates are meant for computers whose USB-C port supports DP Alt Mode 1.4 or Thunderbolt 3.

Is an Estonian manual included?

Yes, Estonian is among the languages of the multilingual manual. The box contains the hub with its attached 20 cm cable.
