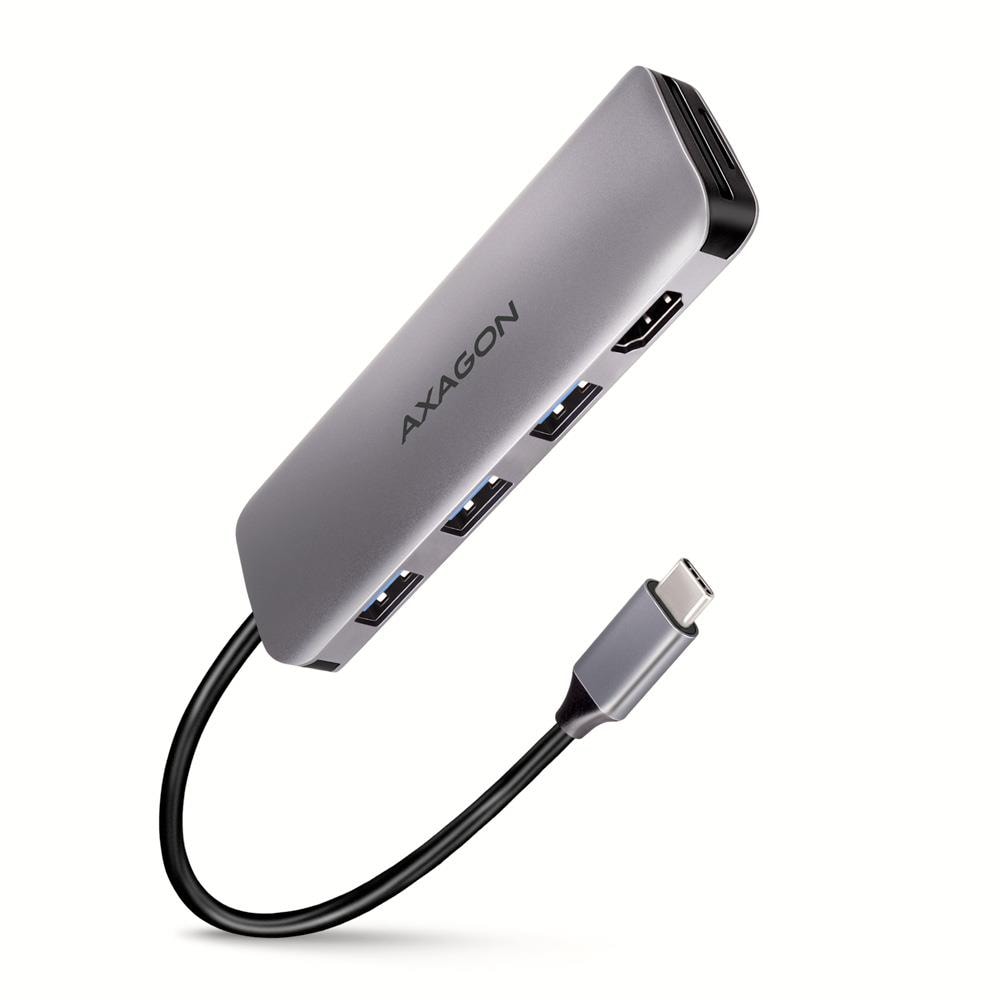

AXAGON HMC-HCR3A USB-C hub 5-in-1, 3 × USB-A, HDMI 4K30, SD/microSD
AXAGON

AXAGON HMC-HCR3A USB-C hub 5-in-1, 3 × USB-A, HDMI 4K30, SD/microSD

The AXAGON HMC-HCR3A is a USB hub in an aluminium body that adds three USB-A ports, an HDMI output and an SD/microSD card reader to a laptop, computer or phone through one USB-C port. The connection runs at USB 3.2 Gen 1 speed, up to 5 Gbps.

  • Host connection: USB-C, USB 3.2 Gen 1, attached 20 cm cable
  • Video: HDMI up to 4096 × 2160 30 Hz, 2560 × 1440 60 Hz, 1920 × 1080 up to 120 Hz
  • Ports: 3 × USB-A 5 Gbps, charging up to 1.5 A per port
  • Card reader: SD and microSD, UHS-I up to 104 MB/s
  • Body: aluminium, grey, 110 × 35 × 12.5 mm, 58 g

Description

HDMI that needs the right USB-C port

The HDMI output shows up to 4K at 30 Hz, WQHD up to 60 Hz and Full HD up to 120 Hz. HDCP 1.4 and 2.3 are supported, along with up to 8-channel audio. Video works only if the computer USB-C port supports DisplayPort Alternate Mode or is a Thunderbolt 3 port.

A card reader for two cards at once

The SD and microSD slots work simultaneously, so files can be copied directly from one card to the other. SDHC, SDXC and MMC cards up to 2 TB are supported. The USB-A ports handle several external drives and charge a phone at up to 1.5 A, 3 A in total.

Who this USB hub is for

Owners of a thin laptop without USB-A sockets, a card reader or a video output, and photographers who copy images straight from a card. No extra drivers are needed, as they are built into the system. Supported systems are Windows 10 and 11, macOS, Linux, Android and ChromeOS.

Specifications

General

BrandAXAGON
Product colourGrey
Housing materialAluminium
HDCPYes
ManualYes
Built-in fanNo
HDCP version1.4/2.3
Plug and PlayYes
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfacesHDMI/USB 3.1 (3.1 Gen 1) Type-A
Data transfer rate5
Warranty2 years
EAN8595247907011

Display

HD type4K Ultra HD
Maximum refresh rate120 Hz
Maximum digital resolution4096 x 2160

Storage

Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/MiniSD/MiniSDHC/MMC/MMC Mobile/RS-MMC/SD/SDHC/SDXC

Audio

Microphone inNo
Built-in microphoneNo
Built-in speaker(s)No

Ports

Card reader integratedYes
Combo headphone/mic portNo
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB Type-C DisplayPort Alternate ModeYes
USB Power Delivery (USB PD)No
Ethernet LANNo
Power connectorUSB Type-C
USB cable length0.2

Connectivity

Connectivity technologyWired

Software & security

Mobile operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedYes
Server operating systems supportedYes
Windows operating systems supportedYes

Battery & power

Power source typeUSB

Features

Cables includedUSB Type-C
LED indicatorsYes
Hot-Plug supportYes

Dimensions & weight

Width110 mm
Depth35 mm
Height12.5 mm
Weight58 g

Questions & answers

Does the hub charge my laptop?

No. This hub has no USB PD support, so the laptop is charged with its own charger. The USB-A ports can charge a phone or tablet.

Why is there no picture over HDMI?

Video requires the computer USB-C port to support DP Alt Mode or Thunderbolt 3, plus an updated operating system. Otherwise only the USB ports and card reader work.

Can I use the hub with a phone?

Yes, a phone with USB-C can take a flash drive, keyboard, mouse or monitor through the hub. For video the phone must also support DP Alt Mode.
