Dahua CS4010-8ET2GT-60 network switch 8 × 100M PoE + 2 × 1G, 60 W
DAHUA

Dahua CS4010-8ET2GT-60 network switch 8 × 100M PoE + 2 × 1G, 60 W

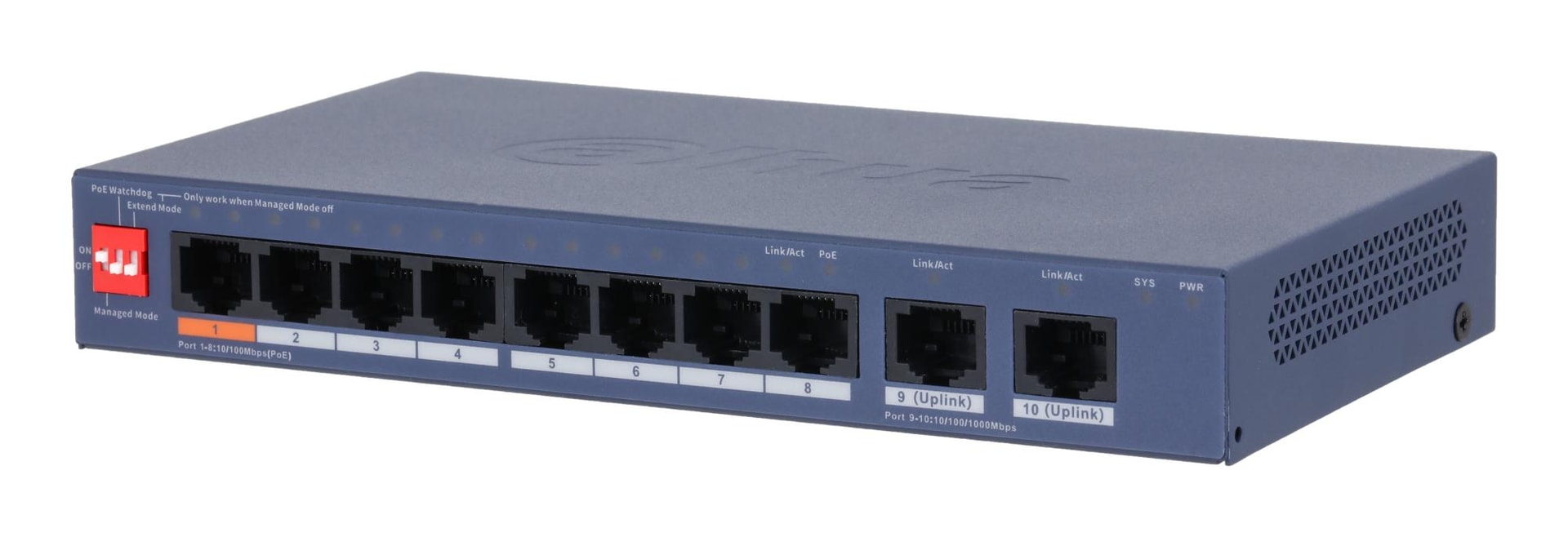

The Dahua CS4010-8ET2GT-60 is a cloud-managed network switch for systems with up to eight IP cameras. Eight 10/100 Mbit/s PoE ports share a 60 W budget, and two gigabit RJ-45 ports connect the NVR and the router. The metal housing can be mounted on a wall.

  • Ports: 8 × RJ-45 10/100 PoE + 2 × RJ-45 1G
  • PoE: 60 W total, IEEE 802.3af/at, plus Hi-PoE on the orange port
  • Management: web interface and DoLynk app, 32 VLANs, loop protection
  • Extras: PoE Watchdog, long-distance PoE, DIP switch for modes
  • Housing: metal, blue, 184.6 × 103.3 × 27 mm, 360 g, wall-mountable
  • Power: 53 V DC, power adapter included

Description

Two gigabit ports for the NVR and router

With two gigabit uplink ports, one goes to the NVR and the other to the router, so video from eight cameras reaches the recorder without a second switch. The orange port supports Hi-PoE for a higher-draw camera. PoE Watchdog automatically restarts the port of a camera that stops responding, and the DIP switch selects cloud management, Watchdog or long-distance PoE mode.

Who this network switch is for

Private houses, small retail spaces and offices with up to eight IP cameras; installers who manage sites from a phone through the DoLynk app; and anyone who needs a wall-mounted PoE switch that works from −10 to 55 °C.

Specifications

General

BrandDAHUA
Model nameCS4010-8ET2GT-60
Product colourBlue
Housing materialMetal
ManualYes
Jumbo frames9216
Cloud-managedYes
Rack mountingNo
Wall mountableYes
Forwarding rate4.17
Number of VLANs32
MAC address table8000
Packet buffer memory4
Web-based managementYes
Broadcast storm controlYes
Mean time between failures (MTBF)2837361
Operating relative humidity (H-H)10 - 90
EAN6937552421417

Storage

Switching capacity5.6
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 95

Ports

Ethernet LAN data rates10,100,1000
Power over Ethernet (PoE)Yes
Port mirroringYes
Power connectorDC-in jack
IP-MAC-Port bindingYes
Fast Ethernet (copper) ports quantity8
Total Power over Ethernet (PoE) budget60
Gigabit Ethernet (copper) ports quantity2
Power over Ethernet (PoE) ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity10

Connectivity

Networking standardsIEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeManaged
Reset buttonYes
Switch layerL2

Battery & power

Power sourceDC/PoE
Input current1.22
DC input voltage53
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 10 – 55 °C

Features

Cables includedAC
LED indicatorsYes
10G supportNo
VLAN supportYes
DHCP featuresDHCP client
Loop protectionYes
Multicast supportYes
Flow control supportYes
Jumbo frames supportYes

Dimensions & weight

Width103.3 mm
Depth184.6 mm
Height27 mm
Weight360 g

Questions & answers

Is 60 W enough for eight cameras?

That is 7.5 W per port on average. Check your cameras' data sheets: if the eight together draw less than 60 W, all of them can run at once.

Can it be managed?

Yes, through the web interface and centrally through the DoLynk app, which shows network status in real time. It supports 32 VLANs, loop protection, port mirroring and IP-MAC-port binding.

What is in the box?

According to the manufacturer, a 53 V DC power adapter, a power cable and a user manual.
