ENDORFY

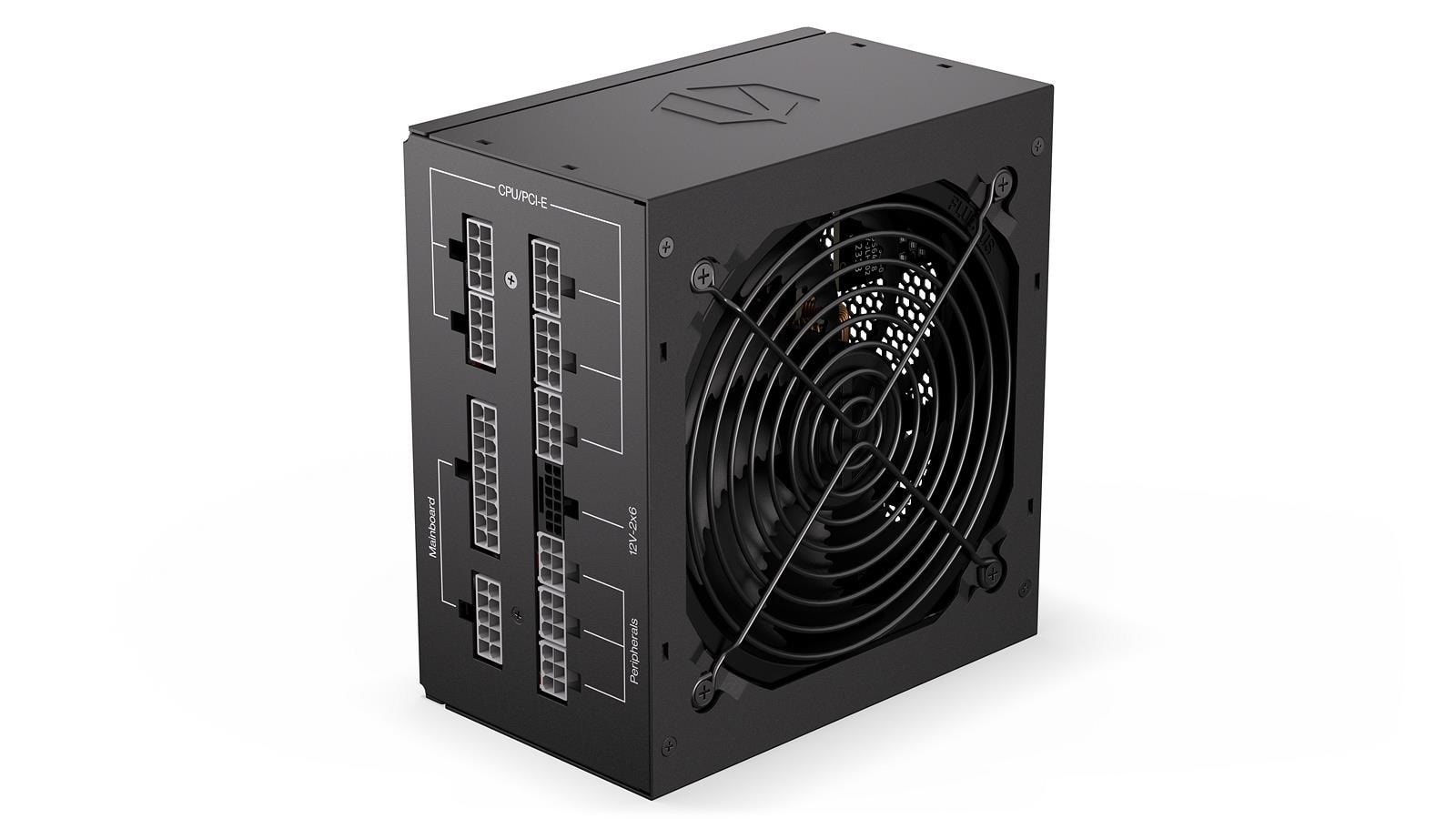

ENDORFY Supremo FM6 1000W 80 PLUS Gold Fully Modular ATX Power Supply

AC input voltage100 – 240 V
Cooling typeActive
Width140 mm
Motherboard power connector24-pin ATX
Cables includedAC

The ENDORFY Supremo FM6 1000W is a fully modular ATX 3.1 desktop power supply built for high-demand builds that need clean, stable power delivery. With 80 PLUS Gold efficiency certification, it converts more wall power into usable output and generates less heat doing it.

Description

Serious Power for Demanding Builds

1000W output handles power-hungry CPUs and multi-GPU configurations without breaking a sweat
80 PLUS Gold certified efficiency keeps energy waste and operating temperatures low
ATX form factor fits standard mid-tower and full-tower desktop cases
120mm fan delivers quiet, effective cooling across the full load range
Fully modular cabling means you only connect what you need, keeping airflow clean and cable management straightforward

A strong fit for gaming PC builders, content creation workstations, and anyone assembling a high-performance desktop that won't compromise on power quality or efficiency.

Specifications

General

Brand	ENDORFY
Model name	Supremo FM6 1000 W
Product colour	Black
Manual	Yes
Purpose	PC
ATX version	3.1
Cabling type	Fully-Modular
Fan diameter	120
Fan location	Top
Illumination	No
Number of fans	1
Doesn't contain	Cadmium/Lead/Mercury
Mean time between failures (MTBF)	100000
Warranty	10 years
EAN	5903018667942

Ports

EPS power connector (8-pin)	Yes
Motherboard power connector	24-pin ATX
EPS power connector (4+4 pin)	Yes
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (12+4 pin)	1
Peripheral (Molex) power connectors (4-pin)	1

Keyboard & controls

On/off switch	Yes
On/off fan switch	No

Battery & power

AC input voltage	100 – 240 V
AC input frequency	50/60
Total power	1000
Input current	13 - 6.5
Combined power (+5V)	100
80 PLUS certification	80 PLUS Gold
Combined power (+12V)	996
Combined power (-12V)	3.6
Combined power (+3.3V)	100
Combined power (+5Vsb)	15
SATA power cable length	560/720/880
Max output current (+5V)	20
Max output current (+12V)	83
Max output current (-12V)	0.3
Power protection features	Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Max output current (+3.3V)	20
Max output current (+5Vsb)	3
Number of SATA power cables	3
Motherboard power cable length	600
PCI Express power cable length	560
Power Factor Correction (PFC) type	Active
Power supply unit (PSU) form factor	ATX
Peripheral (Molex) power cable length	880
