ENDORFY

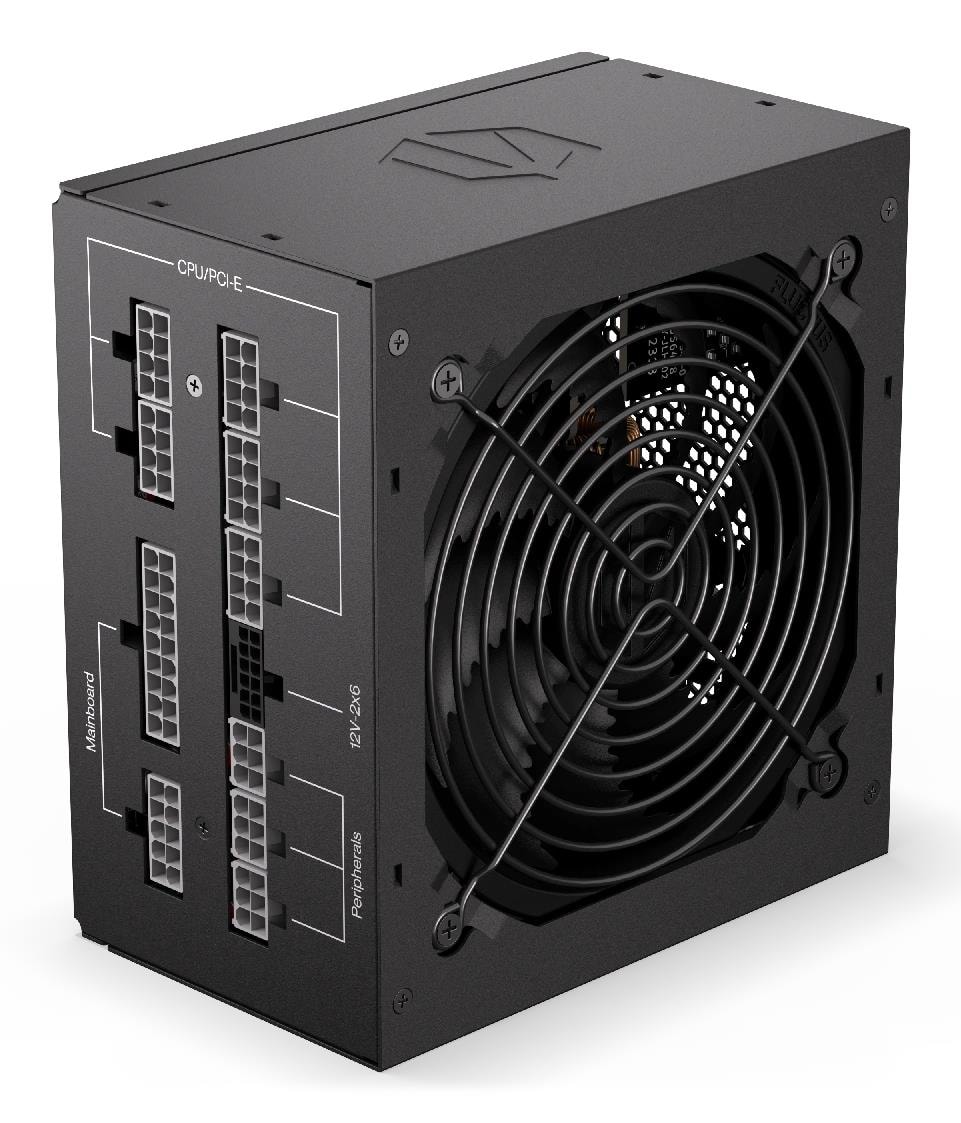

ENDORFY Supremo FM6 850W 80 Plus Gold ATX Power Supply

  • AC input voltage100 – 240 V
  • Fan speed1260 - 1540
  • Width140 mm
  • Motherboard power connector24-pin ATX
  • Cables includedAC

The ENDORFY Supremo FM6 850W is a fully modular ATX desktop computer power supply built to the ATX 3.1 standard, delivering 850 watts of stable output with 80 PLUS Gold certified efficiency — meaning less wasted energy and less heat inside your case.

Description

Quiet, Efficient Power for Demanding Builds

  • 850W output with ATX form factor — suited for high-end gaming and workstation rigs
  • 80 PLUS Gold efficiency keeps power losses low under typical and peak loads
  • 120mm Fluctus fan for near-silent thermal management during intensive sessions
  • PCIe 5.1 ready with a 12V-2x6 connector included alongside traditional PCIe 6+2 PIN cables
  • Japanese capacitors and a rated MTBF of 100,000 hours for long-term reliability

A strong match for PC builders upgrading to the latest GPUs, avid gamers running power-hungry components, and professionals who need a dependable, low-noise ATX PSU that won't compromise system stability under sustained load.

Specifications

General

BrandENDORFY
Model nameSUPREMO FM6
Product colourBlack
ManualYes
PurposePC
ATX version3.1
Cabling typeFully-Modular
Fan diameter120
Fan locationTop
IlluminationNo
Number of fans1
Doesn't containCadmium/Lead/Mercury
Case or master carton weight17000
Mean time between failures (MTBF)100000
Case or master carton dimensions (W x D x H)600 x 235 x 290
Warranty10 years
EAN5903018667959

Ports

Motherboard power connector24-pin ATX
EPS power connector (4+4 pin)Yes
Number of SATA power connectors8
PCI Express power connectors (6+2 pin)3
PCI Express power connectors (12+4 pin)1
Peripheral (Molex) power connectors (4-pin)1

Keyboard & controls

On/off switchYes
On/off fan switchNo

Battery & power

AC input voltage100 – 240 V
AC input frequency50/60
Total power850
Input current13 - 6.5
Combined power (+5V)100
80 PLUS certification80 PLUS Gold
Combined power (+12V)840
Combined power (-12V)3.6
Combined power (+3.3V)66
Combined power (+5Vsb)15
SATA power cable length560
Max output current (+5V)20
Max output current (+12V)70
Max output current (-12V)0.3
Power protection featuresOver current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Max output current (+3.3V)20
Max output current (+5Vsb)3
Power Factor Correction (PFC) typeActive
Power supply unit (PSU) form factorATX

Performance & capacities

Fan speed1260 - 1540
Cooling typeActive

Features

Cables includedAC
LED indicatorsNo
Package typeBox
Bearing technologyFDB

Dimensions & weight

Width140 mm
Depth150 mm
Height87 mm
Weight1.46 kg
