Lindy 42780 active USB 2.0 extension cable 8 m, USB-A M/F, 480 Mbps
LINDY

Lindy 42780 active USB 2.0 extension cable 8 m, USB-A M/F, 480 Mbps

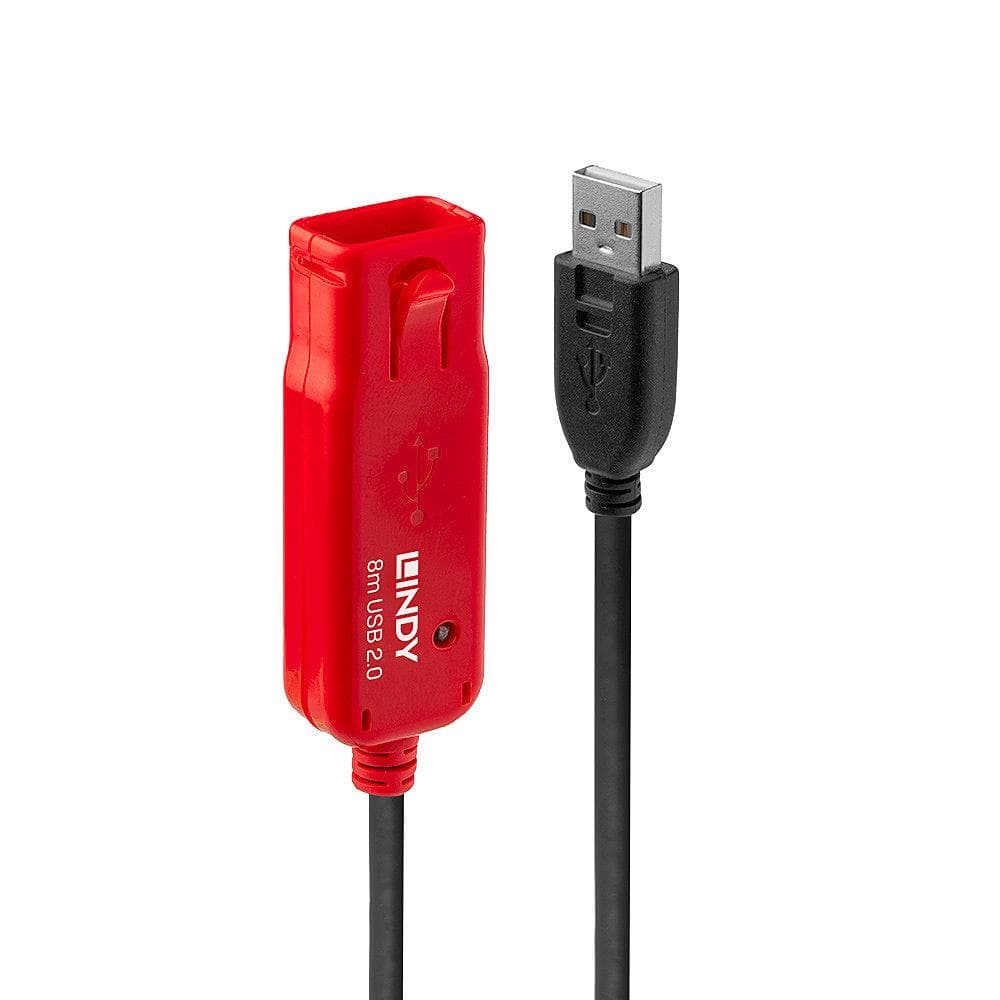

The Lindy 42780 is an 8 m active USB 2.0 extension cable (USB 2.0 Active Extension Pro) with a built-in repeater that keeps the signal strong over distance. It has a male USB-A plug at one end and a female USB-A socket at the other, and runs at up to 480 Mbps.

  • Connectors: USB-A male to USB-A female, locking
  • Length: 8 m, black
  • Data: USB 2.0, up to 480 Mbps
  • Build: one active repeater, shielded twisted pair, tinned copper
  • Cable: PVC jacket, 5 mm diameter, 26 mm minimum bend radius
  • Operating temperature and weight: 0–50 °C, 280 g

Description

Expandable up to 60 metres

The cable works on its own or as part of the Lindy USB 2.0 Active Extension Pro system. Several extension cables and one hub can distribute the USB signal to up to four devices at up to 60 m. The limits are 60 m and four repeaters in total, and the hub must always be the last segment.

Who this USB cable is for

Setups where a USB 2.0 device – a webcam, printer, keyboard or sensor – sits far from the computer, for example on the ceiling, across the room or on a display stand. The device's own cable can be up to 2 m long. Locking connectors and shielding help keep the signal intact in demanding environments.

Specifications

General

BrandLINDY
Model name8m USB 2.0 Active Extension Pro
Product colourBlack
ManualYes
Cable typeRound cable
AWG wire size26/20
Cable diameter5
Contact materialBrass
Bend radius (min)26
Conductor materialTinned copper
Nominal attenuation(0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB)
Transmission mediumTwisted pair
Maximum data transfer rate480
EAN4002888427807

Storage

Storage temperature (T-T)-20 - 60

Ports

USB versionUSB 2.0
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector materialGold/Nickel
Connector shieldingYes
Cable jacket materialPolyvinyl chloride (PVC)
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector shield materialAluminium
Connector contacts platingGold
Connector housing materialPlastic
Connector 1 dimensions (WxDxH)15 x 43 x 8
Connector 2 dimensions (WxDxH)20 x 64 x 13

Battery & power

Cable length8 m

Performance & capacities

Operating temperature (T-T)0 – 50 °C

Features

Package typeBox

Dimensions & weight

Weight280 g

Questions & answers

Can it be chained with another extension?

Yes, within the Lindy Active Extension Pro system, up to 60 m and four repeaters in total. The hub must be the last link.

How long can the device's own cable be?

Up to 2 m, according to the manufacturer.

Does it work with USB 3.0 devices?

The cable carries USB 2.0 speed, up to 480 Mbps. A USB 3.0 device connected through it normally runs at USB 2.0 speed.
