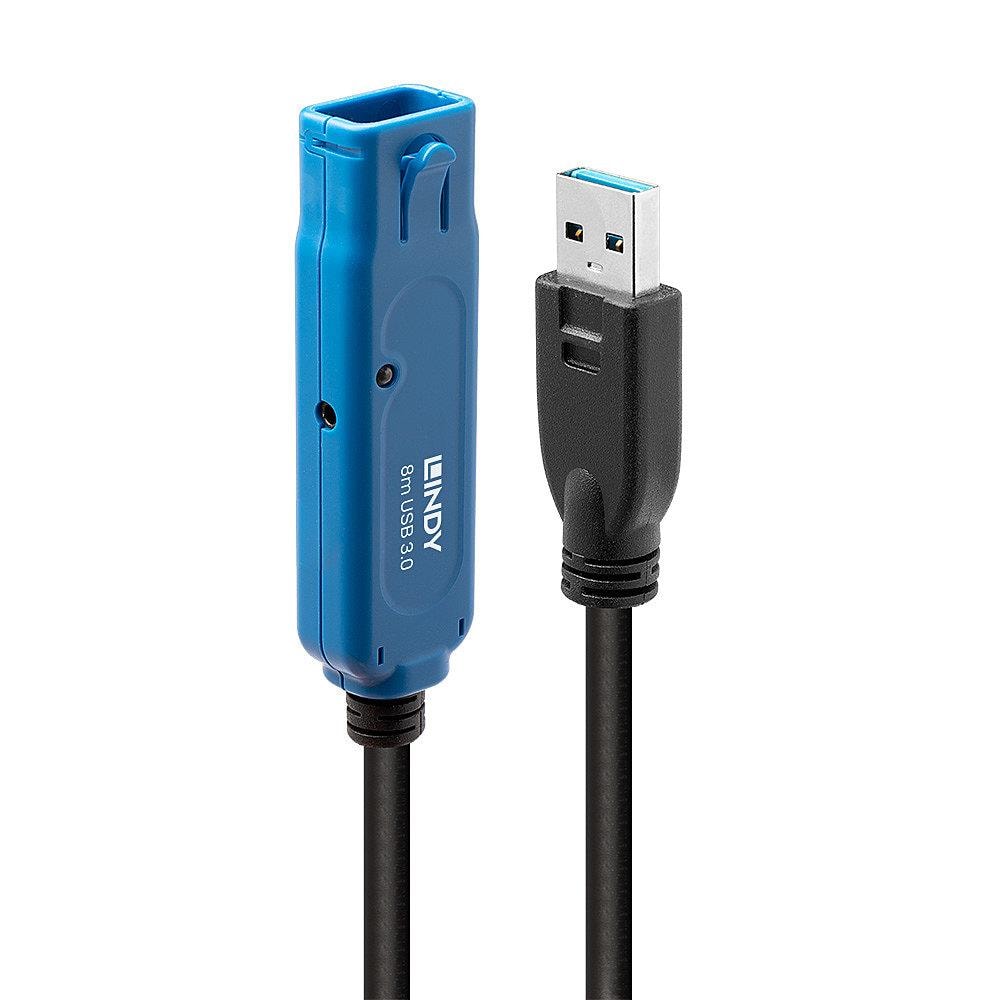

Lindy 43158 active USB 3.0 extension cable 8 m, A–A, Pro, 5 Gbit/s
LINDY

Lindy 43158 active USB 3.0 extension cable 8 m, A–A, Pro, 5 Gbit/s

The Lindy 43158 is an 8 m active USB 3.0 extension cable from the Active Extension Pro series. It keeps SuperSpeed transfers at up to 5 Gbit/s, locking connectors hold the link securely, and the cable serves as the first unit of a Lindy USB 3.0 Active Extension System Pro line.

  • Connectors: USB-A male to the computer, USB-A female to the device, locking
  • Length: 8 m, active boosting
  • Data transfer: USB 3.2 Gen 1 (USB 3.0), up to 5 Gbit/s
  • Expandability: USB 3.0 Active Extension System Pro, up to 40 m in total
  • Build: 2.5/0.7 mm DC power socket, gold-plated contacts, PVC jacket, 7 mm diameter

Description

A modular system that grows to 40 metres

In an Active Extension System Pro line the first unit at the computer must be the 8 m 43158 or the 15 m 43229. More cables from the same system can follow up to 40 metres, distributing the signal to up to four devices. For several devices or a device with high power needs, the last segment must be the 10 m Hub Pro (43159) with its power supply. The device's own cable may be up to 2 m.

Who this USB cable is for

AV and IT installers moving a USB 3.0 camera, external drive or other SuperSpeed device far from the computer, for example in a meeting room or an industrial setting where locking connectors matter. Operating temperature is 0–50 °C and a manual is included.

Specifications

General

BrandLINDY
Model name8m USB 3.0 Active Extension Pro
Product colourBlack
ManualYes
Cable typeRound cable
AWG wire size24/24/20
Cable diameter7
Contact materialBrass
Bend radius (min)36
Conductor materialTinned copper
Nominal attenuation0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Transmission mediumTwisted pair
Maximum data transfer rate5000
EAN4002888431583

Storage

Storage temperature (T-T)-20 - 60

Ports

USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector materialNickel
Connector shieldingYes
Cable jacket materialPolyvinyl chloride (PVC)
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector shield materialAluminium
Connector contacts platingGold
Connector housing materialPlastic
Connector 1 dimensions (WxDxH)15 x 49 x 8
Connector 2 dimensions (WxDxH)20 x 80 x 13

Battery & power

Cable length8 m
Power note2.5/0.7mm DC

Performance & capacities

Operating temperature (T-T)0 – 50 °C

Features

Package typeBox

Dimensions & weight

Weight750 g

Questions & answers

Can several cables be connected in a row?

Yes, up to 40 m within System Pro. The first unit at the computer must be the 43158 or 43229, the last can be any cable or hub in the range.

Is a power adapter included?

The cable has a 2.5/0.7 mm DC power socket, but the manufacturer does not specify whether an adapter is in the box.

Will a USB 2.0 device work with it?

Yes, USB 3.0, 3.1 and 3.2 computers, cables and devices are compatible with each other on both USB-A and USB-C hosts.
