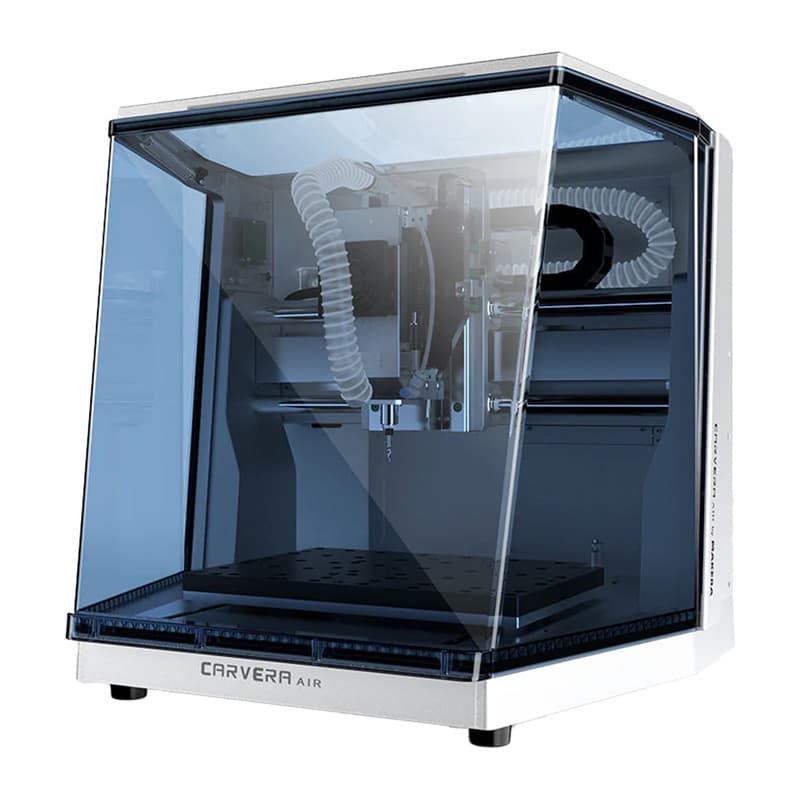

Makera Carvera Air desktop CNC mill, automatic tool change, 300 × 200 × 130 mm
MAKERA

Makera Carvera Air desktop CNC mill, automatic tool change, 300 × 200 × 130 mm

The Makera Carvera Air is an enclosed desktop CNC mill that pairs 0.01 mm precision with smart automation. Tool changes take just 10 seconds (6-tool magazine), while auto-probing and auto-levelling calibrate the tools and workpiece on their own and compensate for uneven material. The 200 W spindle runs at up to 13,000 rpm with closed-loop control, the working area is 300 × 200 × 130 mm and travel speed reaches 4000 mm/min. A die-cast housing, 20 mm linear guides and ball screws keep operation stable and quiet.

Description

The machine cuts aluminium, brass, copper, wood, MDF, plastics and composites (carbon fibre, FR4) and suits double-sided PCB prototyping, parts for robots and drones, and jewellery. An optional 4th axis (harmonic drive, 92 × 200 mm) and a 5 W 445 nm laser module extend its capabilities. Control runs over USB or Wi-Fi from a computer, tablet or phone (iOS, Android, macOS, Windows, Linux); Makera CAM and Makera Studio are included, and Fusion 360, SolidWorks, AutoCAD, VCarve Pro and Aspire are supported.

  • Type: desktop CNC mill, enclosed
  • Working area: 300 × 200 × 130 mm; optional 4th axis 92 × 200 mm
  • Spindle: 200 W, 0–13,000 rpm, 1/8-inch collet, 6-tool magazine
  • Accuracy: spindle accuracy < 0.01 mm, resolution 0.01 mm
  • Connectivity: USB, Wi-Fi; Makera CAM, Makera Studio
  • Dimensions and weight: 50 × 45 × 45 cm, approx. 30 kg
  • In the box: mill, emergency stop button, tool height sensor, set of end mills and engraving bits, clamps, LED lighting kit, sample materials (acrylic, aluminium, ABS, MDF, copper laminate), safety goggles, tools
  • MPN and manufacturer: AirDesCNC, Makera
  • Warranty: 12 months

Specifications

BrandMAKERA
Weight (boxed)41.5 kg
Warranty12 months
EAN6977641142496
