XTOOL

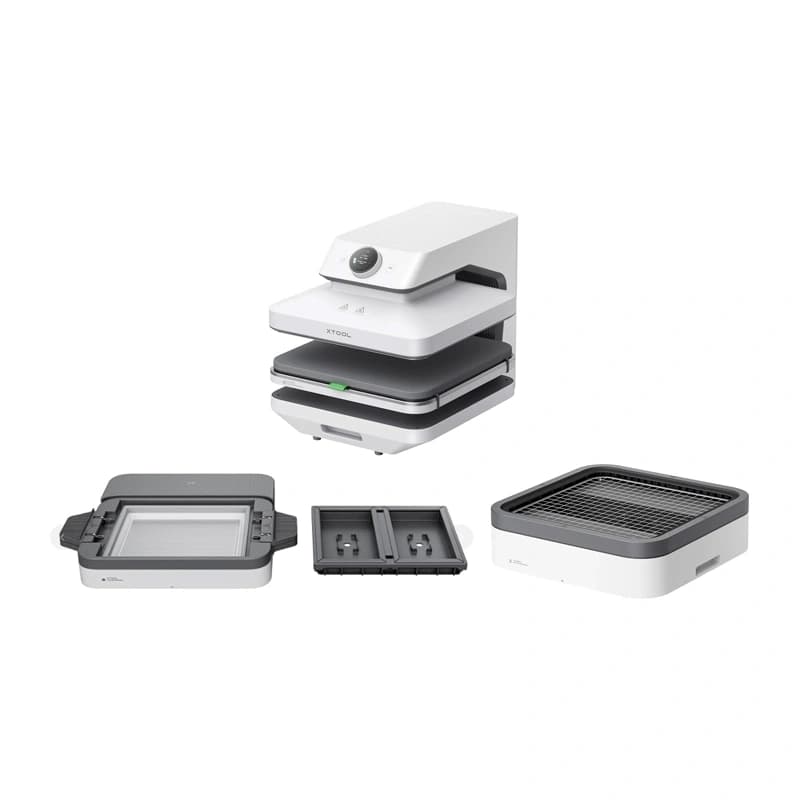

xTool WonderPress V1.0 all-in-one heat press, Craft Oven + 3D Form, white

The xTool WonderPress V1.0 All-in-One is a modular 3-in-1 kit comprising the WonderPress V1.0 heat press, the xTool Craft Oven module and the xTool 3D Form vacuum module. The press applies up to 100 kg of automatic pressure, so there is no need to push down on the material by hand; a working clearance of up to 75 mm leaves room for thicker items such as sweatshirts. Pressure adjusts in 1 kg steps and temperature in 1 °C steps, laser alignment helps place the design accurately, double-density heating tubes spread heat evenly, and the dual-station system lets you prepare the next item while the previous one is being pressed.

Description

The Craft Oven cures DTF films up to 432 × 432 mm in as little as 3 minutes; its 398 × 158 × 80 mm chamber sublimates three mugs at once or handles polymer clay and acrylic bending, and a three-layer filter (H11 + carbon + H13 HEPA) captures up to 99.95 % of DTF fumes. The 3D Form module performs 3D sublimation on curved objects (phone cases, badges, keycaps; up to 122 × 229 mm) and vacuum forming at up to –90 kPa over a 250 × 195 mm area and up to 90 mm high, with a built-in pump and an infrared sensor monitoring sheet temperature. Modules swap without tools and are recognised automatically; control is via a 45.7 mm screen and a dial, the xTool Studio app provides a cloud settings library, and 35 presets are available offline.

  • Type: heat press, 3-in-1 kit (press + Craft Oven + 3D Form)
  • Press: automatic pressure up to 100 kg, clearance up to 75 mm, 1 kg / 1 °C steps, laser alignment, dual station
  • Craft Oven: DTF films up to 432 × 432 mm, 3 min per piece, 398 × 158 × 80 mm chamber, H11 + carbon + H13 HEPA filter (up to 99.95 %)
  • 3D Form: vacuum up to –90 kPa, forming area 250 × 195 mm, height up to 90 mm, 3D sublimation up to 122 × 229 mm
  • Control: 45.7 mm display, rotary dial, xTool Studio app, 35 built-in presets
  • Safety: automatic standby, slide-out design, automatic module recognition
  • In the box: WonderPress V1.0 heat press, xTool Craft Oven, xTool 3D Form module
  • MPN and manufacturer: P0101000652-P0102000, xTool
  • Warranty: 12 months

Specifications

BrandXTOOL
Weight (boxed)41.5 kg
EAN5905156111189
