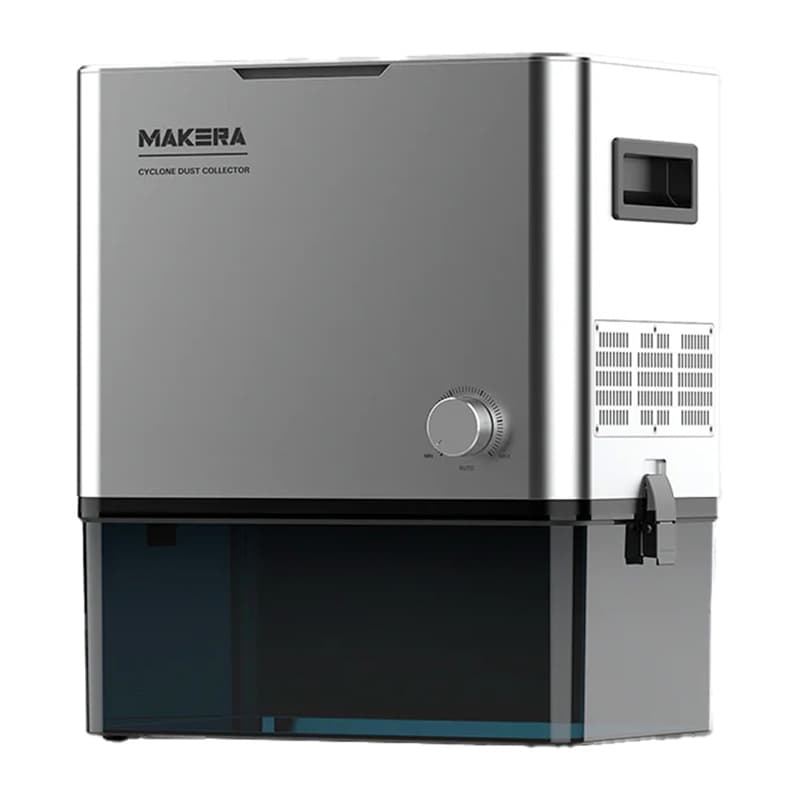

Makera Cyclone dust collector for CNC mills, cyclone + HEPA, 200 W, 900 l/min

Name: Makera Cyclone dust collector for CNC mills, cyclone + HEPA, 200 W, 900 l/min
Brand: MAKERA
SKU: IP-800058208
Price: 885.99 EUR
Availability: InStock

The Makera Cyclone Dust Collector is a two-stage extraction unit for desktop CNC mills that keeps the workstation clean without interrupting the job. The cyclone separator captures up to 97 % of larger chips before they reach the filters, extending filter life by up to three times. Three-stage filtration, with a pre-filter, a 99.99 % efficient HEPA filter and an activated carbon layer, removes fine dust, fumes and odours. The 200 W motor spinning at up to 40,000 rpm delivers 900 l/min of airflow and 12 kPa of vacuum, and the tank holds 6 l.

Description

Control it manually with a button, remotely through the Makera Controller app over Wi-Fi, or fully automatically via G-code so the collector starts in sync with the mill exactly when needed; smart notifications report its status. Noise stays at or below 70 dB, the compact aluminium-alloy and plastic housing measuring 300 × 218 × 354 mm sits next to the mill, and the cooling system allows hours of continuous operation. It suits wood, metal, plastic and composite machining and doubles as an air purifier during laser engraving.

Type: cyclone dust collector for desktop CNC mills
Motor: 200 W, up to 40,000 rpm
Performance: 900 l/min airflow, 12 kPa vacuum, 6 l tank
Filtration: pre-filter + HEPA (99.99 %) + activated carbon
Control: button, app (Wi-Fi), automatic via G-code
Dimensions and material: 300 × 218 × 354 mm, aluminium alloy + plastic, silver
In the box: dust collector, extraction hose, pre-filter (sponge), data cable, power cord, manual
MPN and manufacturer: CarCycDust, Makera
Warranty: 12 months
