Of the sixteen Gigabit ports, eight supply power according to 802.3af and 802.3at, while the other eight are plain data ports. Total PoE power is 150 W, shared among the connected devices. Wi-Fi access points, IP cameras and IP phones can be powered straight from the switch, with no separate injectors or power adapters, and all the equipment stays together in one rack.
Two SFP+ cages support 10 Gbit/s connections. Use one as an uplink to the core network or another building and the other for a fast NAS or server that serves several workstations at once. Because the Gigabit workstations share a fast connection, access to the server does not become a bottleneck even when several users are working with files at the same time.
Unlike an ordinary switch, the CRS418 carries a quad-core ARM CPU at 2.2 GHz with RouterOS, so it can also handle routing, network monitoring and Layer 3 hardware offloading. A dedicated Gigabit management port is wired directly to the CPU, keeping management separate from the main network. The USB 3.2 Gen 1 port accepts, for example, a USB drive for logs or files.

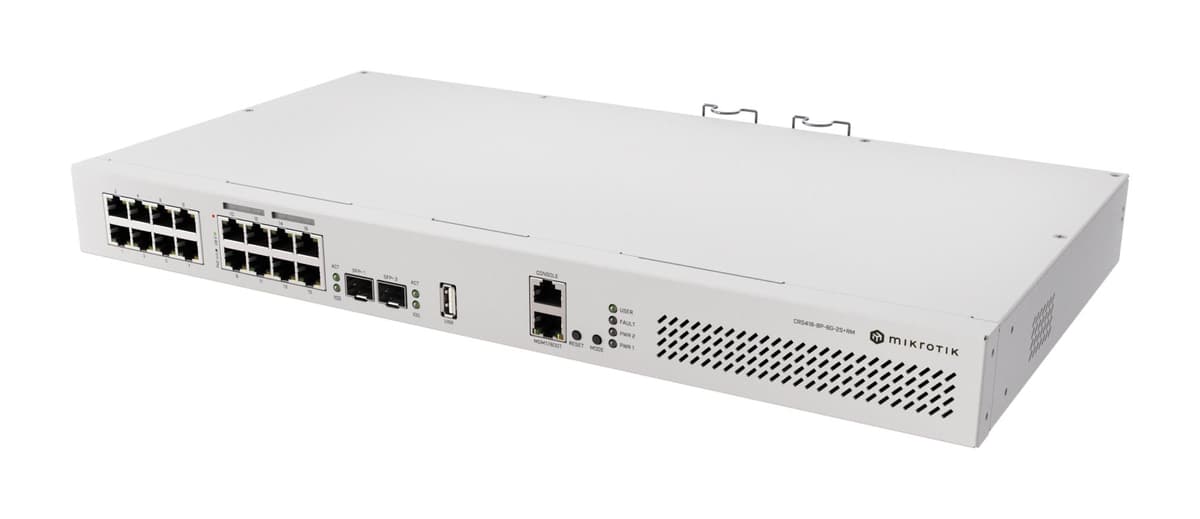

Everything fits into a 1U chassis measuring 443 × 230 × 44 mm. It runs on 100–240 V AC, with typical consumption of 28 W and a maximum of 215 W including PoE load. The unit operates from −20 to 70 °C and is rated IP20, meaning it is meant for indoor use. MikroTik designed it to replace a jungle of separate devices in the server room with one tidy box. The manufacturer quotes a mean time between failures (MTBF) of 200,000 hours.
Small and mid-sized offices where one device has to be the switch, the router and the PoE source; surveillance or Wi-Fi installers powering up to eight cameras or access points; and administrators who need a fast 10G link to a NAS and want fewer devices and cables in the server room. It is also a practical way to bring PoE, routing and 10G fibre into a server room that has grown piece by piece.
| Brand | MIKROTIK |
|---|---|
| Form factor | 1U |
| Model name | CRS418-8P-8G-2S+RM |
| Rack mounting | Yes |
| SFP+ module slots quantity | 2 |
| Mean time between failures (MTBF) | 200000 |
| EAN | 4752224008817 |
| Processor manufacturer | ARM |
|---|---|
| Processor model | 98DX226S |
| Processor frequency | 2208 GHz |
| Built-in processor | Yes |
| Internal memory | 1000 GB |
|---|
| Flash memory | 128 MB |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Console port | RJ-45 |
| USB Type-A ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
|---|
| Operating system installed | RouterOS |
|---|
| Reset button | Yes |
|---|---|
| Switch layer | L2/L3 |
| Power consumption (typical) | 28 W |
|---|---|
| Power consumption (max) | 215 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 |
| Power source | AC/PoE |
| Power supply included | Yes |
| Operating temperature (T-T) | 0 – 20 – 70 °C |
|---|
| International Protection (IP) code | IP20 |
|---|---|
| 10G support | Yes |
| Width | 443 mm |
|---|---|
| Depth | 230 mm |
| Height | 44 mm |
Eight ports provide PoE-out to 802.3af and 802.3at, with 150 W of total PoE power. The remaining eight Gigabit ports carry data only. Use them for computers, printers and other wired devices.
It is an L2/L3 switch with RouterOS and a quad-core 2.2 GHz CPU, so it can route traffic and use Layer 3 hardware offloading.
Yes, the 1U case is designed for a 19-inch rack, 443 mm wide and 230 mm deep.
This model is a switch and router without a Wi-Fi radio. The variant with a Wi-Fi 6 radio carries the code CRS418-8P-8G-2S+5axQ2axQ-RM.
