UBIQUITI

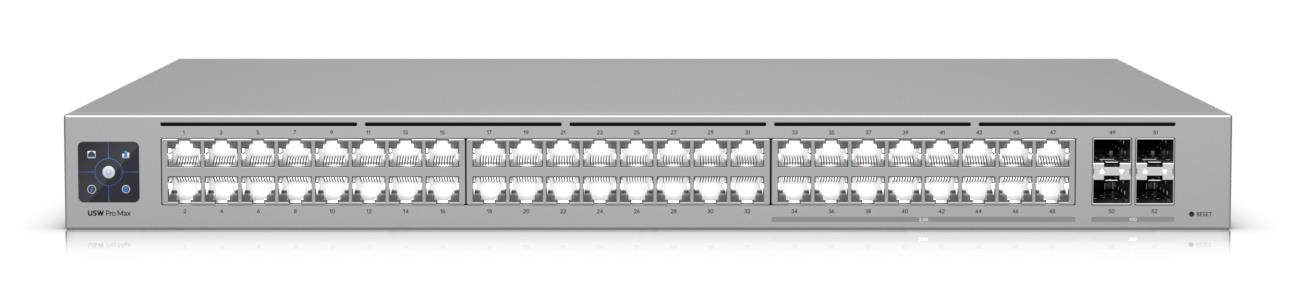

Ubiquiti UniFi Switch Pro Max 48 – 48-Port 2.5GbE Layer 3 Network Switch

Display typeLCM
Switching capacity224
Power consumption (max)100 W
Operating temperature (T-T)0 – 5 – 40 °C
Networking standardsIEEE 802.1x
Switch layerL3

The Ubiquiti UniFi Switch Pro Max 48 is a rack-mountable, Layer 3 managed network switch delivering 48 ports of multi-gigabit connectivity — purpose-built for demanding enterprise and campus networks that need serious throughput without a full 10G rollout. With support for 2.5 GbE speeds across its RJ45 ports, this switch bridges the gap between standard Gigabit infrastructure and true high-speed backbone links.

Description

High-Density 2.5 GbE Switching for Scalable Networks

48 RJ45 ports supporting 100/1000/2500 Mbps for flexible client and uplink connections
4 × 10G SFP+ ports for high-speed fibre or DAC uplinks to core switches or routers
Layer 3 switching enables inter-VLAN routing and advanced traffic management at the network edge
1U rack-mountable form factor fits standard 19-inch server cabinets
Fully managed via UniFi Network (version 8.0.24 or later) for centralised control

Ideal for enterprise offices, university buildings, hospitality venues, and high-density Wi-Fi 6E deployments where access-layer switches need to handle multi-gigabit uplinks from APs and workstations alike.

Specifications

General

Brand	UBIQUITI
Form factor	1U
Model name	Pro Max 48
Product colour	Grey
Housing material	SGCC
Stackable	Yes
Throughput	112
Static route	Yes
Bullet Points	<ul><li>(16) 2.5 GbE RJ45 ports</li><li>(32) GbE RJ45 ports</li><li>(4) 10G SFP+ ports</li><li>DC power backup ready</li><li>Managed with UniFi Network 8.0.24 and later</li></ul>
IGMP snooping	Yes
Rack mounting	Yes
Rate limiting	Yes
Forwarding rate	166.656
Long Description	Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U
Broadcast storm control	Yes
SFP+ module slots quantity	4
Operating relative humidity (H-H)	10 - 90
EAN	810084692745

Display

Display type	LCM

Storage

Switching capacity	224

Ports

Power over Ethernet (PoE)	No
Port mirroring	Yes
Power connector	AC/DC
Virtual LAN features	Voice VLAN
2.5G Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	32
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	48

Connectivity

Networking standards	IEEE 802.1x

Keyboard & controls

Reset button	Yes
Switch layer	L3

Battery & power

Power consumption (max)	100 W
AC input voltage	100 – 240 V
AC input frequency	50/60
Power source	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes

Performance & capacities

Operating temperature (T-T)	0 – 5 – 40 °C

Features

Cables included	Power
LED indicators	Link/Network/Speed/Status
10G support	Yes
VLAN support	Yes
DHCP features	DHCP relay/DHCP snooping
Loop protection	Yes
Flow control support	Yes
Jumbo frames support	Yes
Mounting brackets included	Yes
