TP-Link Omada EAP620 HD Wi-Fi 6 access point AX1800, 1G PoE+, ceiling mount

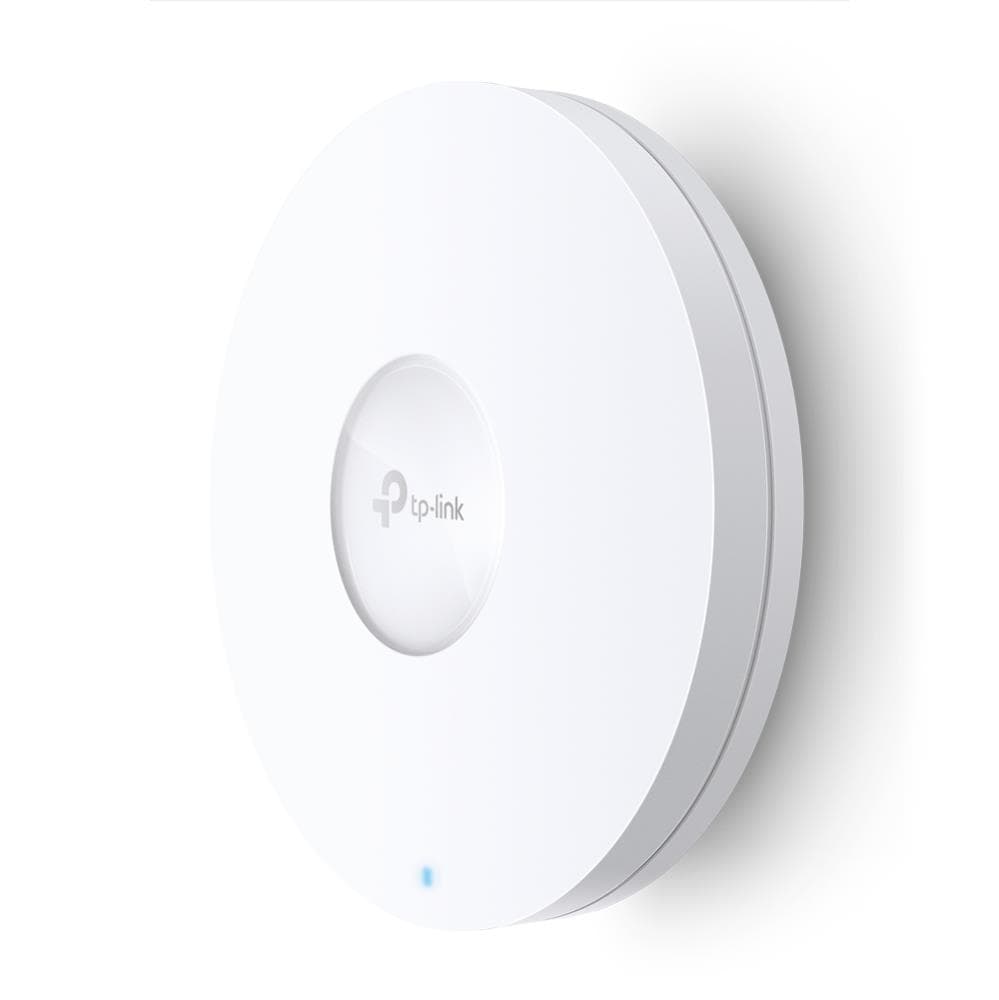

The TP-Link Omada EAP620 HD is a ceiling or wall mounted Wi-Fi 6 access point for busy spaces. Across two bands it delivers up to 1775 Mbit/s combined, OFDMA and MU-MIMO help it serve many devices at once, and it is powered over PoE+.

  • Wi-Fi: Wi-Fi 6 (802.11ax), up to 574 Mbit/s (2.4 GHz) + 1201 Mbit/s (5 GHz)
  • Bands: 2.4 GHz and 5 GHz, band steering, OFDMA
  • Port and power: 1 × 1G RJ-45, PoE+ (802.3at), 12 V jack
  • Antennas: internal omni-directional, MU-MIMO, beamforming
  • Management: Omada SDN, cloud and app, VLAN, mesh, WPA3
  • Dimensions: 160 × 160 × 33 mm, ceiling or wall

Description

Many devices at once without congestion

Wi-Fi 6 OFDMA and uplink and downlink MU-MIMO share the connection among many devices; the manufacturer says capacity in dense environments rises up to four times compared with Wi-Fi 5. 802.11k/v roaming moves a client to the access point with the strongest signal as it moves, so a video call does not drop.

Who this access point is for

Offices, schools, hotels and retail floors where one room holds many phones and laptops; and businesses building a single managed network from Omada access points, switches and gateways. Guests can be given a secure separate network with SMS, Facebook or voucher login.

Specifications

General

BrandTP-LINK
Model nameEAP620 HD
Product colourWhite
5 GHzYes
6 GHzNo
SeriesOmada
SyslogYes
2.4 GHzYes
PlacementCeiling, Wall
BeamFormingYes
Mounting kitYes
Rate limitingYes
Number of users1020
Quick start guideYes
Firmware upgradeableYes
Web-based managementYes
Airtime Fairness (ATF)Yes
Spread spectrum methodOFDMA
Access Control List (ACL)Yes
Automatic channel scanningYes
Maximum data transfer rate1201
Automatic channel selectionYes
Operating relative humidity (H-H)10 - 90
Maximum data transfer rate (5 GHz)1201
Maximum data transfer rate (2.4 GHz)574
Remote Authentication Dial-In User Service (RADIUS)Yes
EAN6935364030742

Storage

Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000
DC-in jackYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedActive PoE/Passive PoE

Connectivity

Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3at
Security algorithmsSNMP/SNMPv2/SNMPv3/SSH/WEP/WPA2-Enterprise/WPA2-PSK/WPA3/WPA3-PSK/WPA-Enterprise/WPA-PSK
MIMOYes
MIMO typeMulti User MIMO
Antenna typeInternal
Band steeringYes
Frequency band2.4 - 5
Antenna direction typeOmni-directional

Keyboard & controls

Reset buttonYes

Battery & power

DC voltage range12
Transmitting power (CE)20/23
Transmitting power (FCC)23

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Fit AP mode featuresMesh networking
MAC address filteringYes

Features

LED indicatorsYes
Package typeBox
VLAN supportYes
Cabling technology10/100/1000Base-T(X)
Flow control supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width160 mm
Depth160 mm
Height33 mm

Questions & answers

What power does the access point need?

A PoE+ (802.3at) switch or injector; both active and passive PoE are supported. There is also a 12 V DC jack.

Does the connection drop when moving between access points?

It should not. 802.11k/v roaming hands the device over smoothly to the next access point, and mesh lets some points connect without a cable.

How many users can it serve?

The manufacturer data lists 1020 users. The real number depends on traffic and devices.
