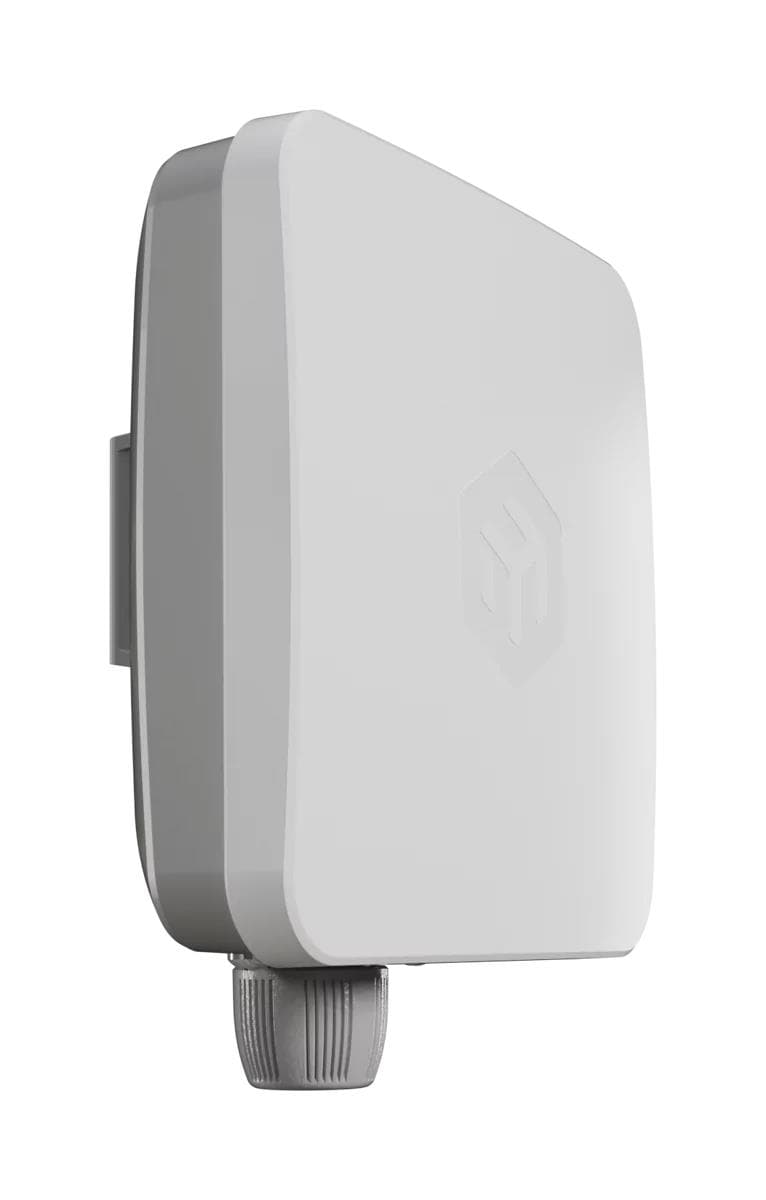

MikroTik SXTsq LTE4 Global EG25-G 4G router, LTE Cat4, eSIM, IP67
MIKROTIK

MikroTik SXTsq LTE4 Global EG25-G 4G router, LTE Cat4, eSIM, IP67

The MikroTik SXTsq Embedded LTE4 Global is an outdoor 4G router with a built-in 2 × 2 MIMO directional antenna and an LTE Cat4 EG25-G modem. The Global version adds LTE bands for the USA and other regions outside EMEA, takes its power over PoE and runs RouterOS v7.

  • Mobile: LTE Cat4 EG25-G modem, Global version with extra USA and non-EMEA bands
  • SIM: nanoSIM slot and eSIM
  • Antenna: integrated 2 × 2 MIMO directional antenna, up to 9 dBi gain
  • Port: 1 × RJ-45, 10/100/1000 Mbit/s
  • Management: RouterOS v7, licence level 3, ARM CPU
  • Power and housing: PoE input 12–28 V, up to 5 W; IP67, 129 × 129 × 34 mm, white

Description

Directional antenna and IP67 housing for outdoor use

A directional antenna concentrates reception in one direction, so the unit is fixed to an outside wall or a mast and aimed at the nearest cell tower. That is the point of it compared with a router sitting indoors. IP67 means the housing is dust-tight and survives temporary immersion in water, so rain and snow are not a concern. A single Ethernet cable runs into the building and carries both data and power.

Who this 4G router is for

A country house, holiday home, farm or remote site that wired internet does not reach, and a business that needs a backup link. The Global version is meant for those who also use the unit outside EMEA. Power draw of no more than 5 W helps where power is limited.

Specifications

General

BrandMIKROTIK
Model nameSXTsq Embedded LTE4 Global
Product colourWhite
5 GHzYes
6 GHzYes
2.4 GHzNo
Operating relative humidity (H-H)-40 - 70

Processor

Processor frequency1200 GHz
Built-in processorYes

Memory

Internal memory256 GB

Camera

Flash memory512 MB

Ports

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000
SIM card typeNanoSIM + eSIM
Power over Ethernet (PoE)Yes
SIM card slotYes

Connectivity

Networking standardsIEEE 802.3af/IEEE 802.3at
MIMOYes
Antenna typeInternal
Antenna featuresIntegrated antenna
Antenna gain level (max)9

Software & security

Operating system installedRouterOS
Compatible operating systemsRouterOS v7, License level 3

Battery & power

Power consumption (max)5 W
AC input voltage12 – 57 V

Features

International Protection (IP) codeIP67

Dimensions & weight

Width129 mm
Depth129 mm
Height34 mm
Product Net Weight0.5 kg

Questions & answers

What is the difference between the EU and Global versions?

The manufacturer offers two versions: EU with the EC25-EU modem and Global with the EG25-G modem. This is the Global version, which also supports LTE bands used in the USA and other regions outside EMEA.

Can I use an eSIM?

Yes. The unit has a nanoSIM slot and eSIM support, so an operator plan can be activated without a physical card.

How is the unit powered?

Over PoE, with 12–28 V input and 5 W maximum consumption. Whether a PoE injector is included, the manufacturer does not specify.
