TP-LINK

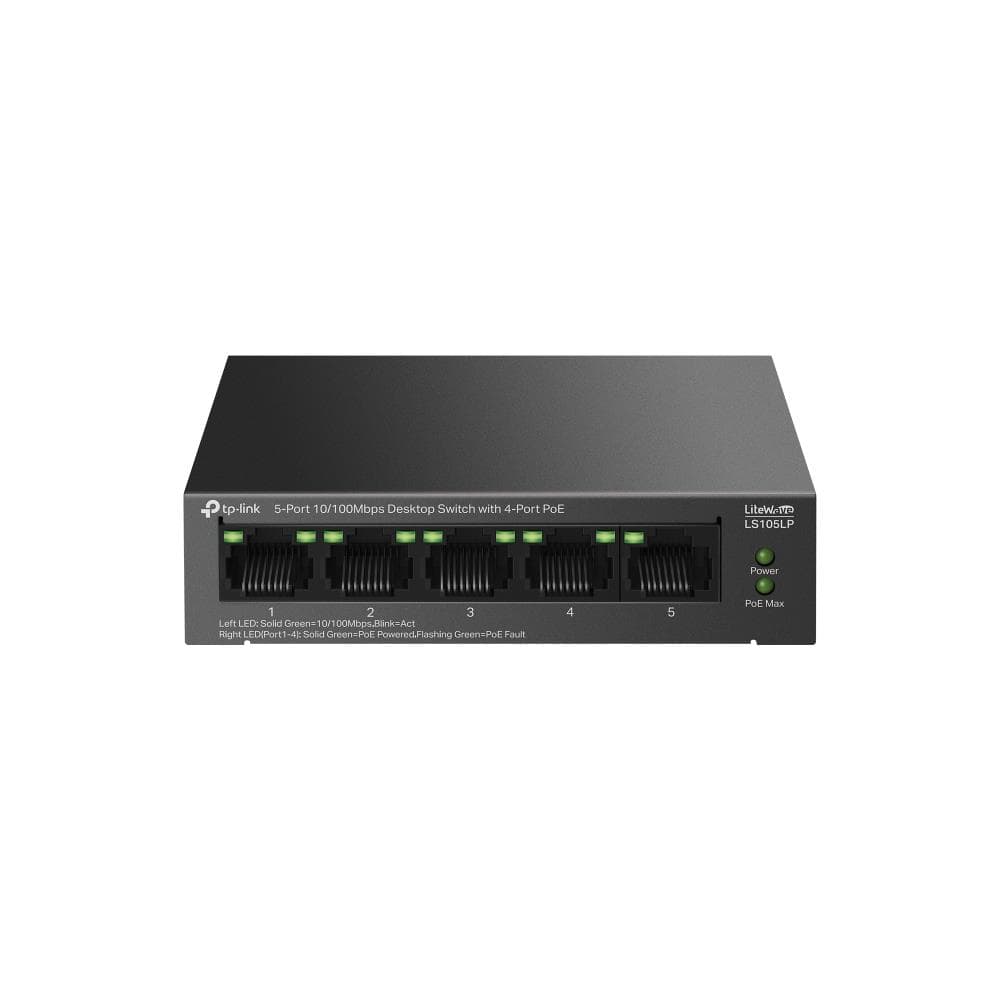

TP-LINK LS105LP 5-port PoE switch Fast Ethernet

Switching capacity1
Power consumption (max)46.45 W
Operating temperature (T-T)0 – 40 °C
Switch typeUnmanaged
Width100 mm
Copper ethernet cabling technology100BASE-TX/10BASE-T

The TP-LINK LS105LP is a compact unmanaged network switch with built-in Power over Ethernet support. It delivers straightforward connectivity for small office networks and device installations where you need both data and power delivery over a single cable.

Description

Plug-and-play PoE connectivity

4 PoE ports supply power to IP cameras, wireless access points, and VoIP phones without separate power adapters
5 Fast Ethernet ports (10/100 Mbps) provide reliable connectivity for standard office and home network speeds
Unmanaged design means zero configuration—just connect and go
Compact form factor fits easily on desks, in closets, or wall-mounted near equipment

Ideal for small installations like security camera systems, WiFi coverage expansion, or basic office networking where you need to reduce cable clutter and simplify device power management.

Specifications

General

Brand	TP-LINK
Model name	LS105LP
Product colour	Black
Fanless	Yes
User guide	Yes
Number of fans	0
Wall mountable	Yes
Forwarding rate	0.744
Auto-negotiation	Yes
MAC address table	2000
Store-and-forward	Yes
Operating relative humidity (H-H)	10 - 90
EAN	4895252504583

Storage

Switching capacity	1
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90

Ports

Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	100BASE-TX/10BASE-T
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	15.4
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	5

Connectivity

Networking standards	IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch type	Unmanaged

Battery & power

Power consumption (max)	46.45 W
AC input voltage	220 V
AC input frequency	50 Hz
Power source	DC/PoE
Input current	0.81
DC input voltage	53.5
Power supply included	Yes

Performance & capacities

Operating temperature (T-T)	0 – 40 °C
Heat dissipation	157.93

Features

LED indicators	Yes
10G support	No
Package type	Box
Auto MDI/MDI-X	Yes
Flow control support	Yes
Jumbo frames support	Yes
Cable types supported	Cat3/Cat4/Cat5/Cat5e
Quality of Service (QoS) support	Yes
