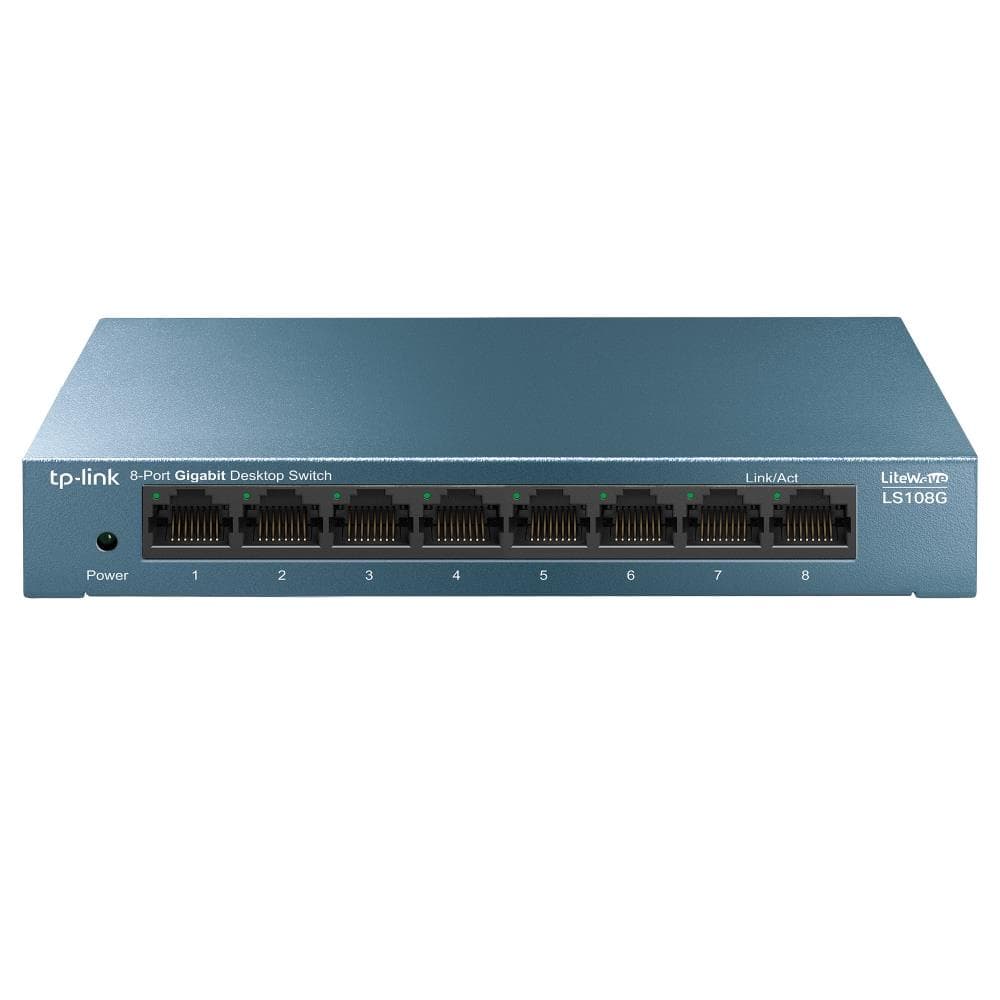

TP-Link LS108G network switch 8 × 1G, unmanaged, metal housing
TP-LINK

TP-Link LS108G network switch 8 × 1G, unmanaged, metal housing

The TP-Link LS108G is an unmanaged network switch from the LiteWave series with eight gigabit ports. It adds wired connections for computers, printers and TVs at home or in the office and starts working as soon as the cables are plugged in.

  • Ports: 8 × RJ-45 10/100/1000 Mbit/s, auto-negotiation, Auto MDI/MDI-X
  • Performance: 16 Gbit/s switching capacity, 11.9 Mpps forwarding rate, 4000-entry MAC table, jumbo frames
  • Management: unmanaged; QoS (IEEE 802.1p), IEEE 802.3x flow control
  • Housing: blue metal housing, 158 × 99 × 25 mm, power and port activity LEDs
  • Power: 5 V / 0.6 A adapter included, 3.7 W maximum consumption, Green Ethernet

Description

Low consumption, metal shell

According to TP-Link, Green Ethernet adjusts power draw to the link status and cable length, which keeps maximum consumption at just 3.7 W. A metal housing protects the internals, and the small footprint suits a desk or workbench. Auto MDI/MDI-X means there is no need to pick a cable type.

Who this network switch is for

A home, dorm room or small office where the router has too few ports and a desktop PC, printer, TV or webcam should go on a cable. No setup is needed, the switch works right away.

Specifications

General

BrandTP-LINK
Model nameLS108G
Product colourBlue
SeriesTP-LINK LS108G
Jumbo frames16000
Rack mountingNo
Forwarding rate11.9
Auto-negotiationYes
MAC address table4000
Quick start guideYes
Packet buffer memory1.5
Operating relative humidity (H-H)10 - 90
EAN6935364085452

Storage

Switching capacity16
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 90

Ports

Power over Ethernet (PoE)No
Power connectorDC-in jack
Gigabit Ethernet (copper) ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8

Connectivity

Networking standardsIEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Keyboard & controls

Switch typeUnmanaged

Battery & power

Power consumption (max)3.7 W
Input voltage5 V
Power sourceDC
Input current0.6
Power supply includedYes

Performance & capacities

Operating temperature (T-T)0 – 40 °C
Heat dissipation12.617

Features

LED indicatorsActivity/LAN/Power
10G supportNo
Auto MDI/MDI-XYes
Flow control supportYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes

Dimensions & weight

Width158 mm
Depth99 mm
Height25 mm

Questions & answers

Does the switch need any setup?

No. The LS108G is unmanaged and works as soon as the cables are connected. It has no VLANs and no web interface.

Does it supply PoE power?

No, this model has no PoE. Cameras need their own power adapter.

What is in the box?

The switch, a 5 V power adapter and a quick start guide.
